CS-360 TES - Echo Chainsaw (SN: 37001001 - 37999999) Chain Brake Parts Diagram

Chainsaw

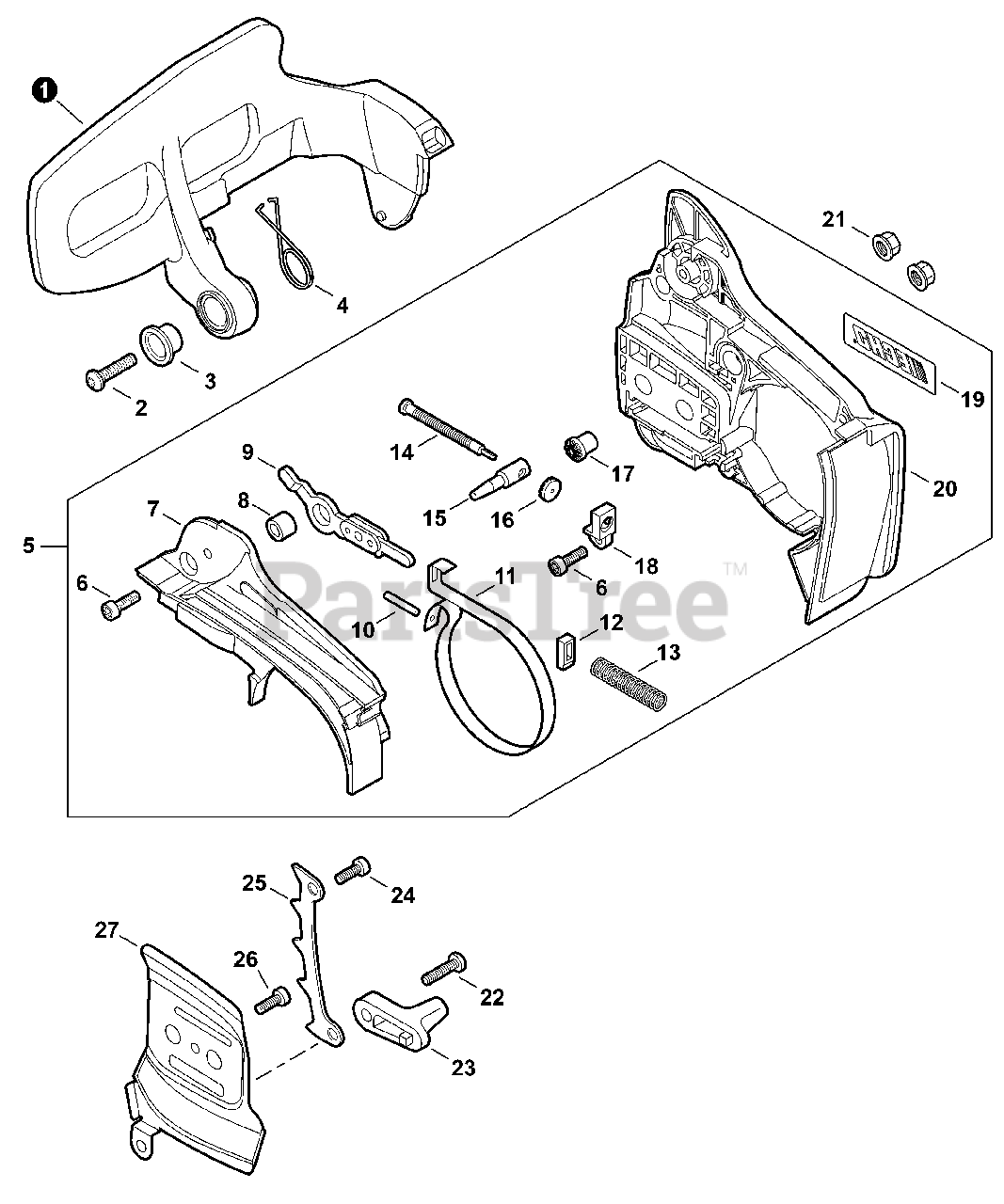

Chain Brake Parts Diagram

  • Title

1

Echo C320000501

LEVER, BRAKE

$37.99

$

In Stock, only 4 left!

0

2

Echo V805000240

BOLT, TORX 5×12

$0.99

$

In Stock, Qty 20+

0

3

Echo V356000430

COLLAR 10

$2.99

$

In Stock, only 2 left!

0

4

Echo V452001380

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0

5

Echo P021042602

BRAKE ASSY, CHAIN
(Superseded to P021048810)

Note: Includes ITEMS 6-20

$111.99

$

In Stock, Qty 9

0

6

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

7

Echo C345000520

COVER, BRAKE

$9.99

$

In Stock, only 2 left!

0

8

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

9

Echo C334000290

CONNECTOR, BRAKE

$14.99

$

Usually ships in 2-4 days

0

10

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

11

Echo C328000310

BAND, BRAKE

$13.99

$

In Stock, Qty 5

0

12

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

13

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, only 4 left!

0

14

Echo V203000041

BOLT 5

$6.99

$

In Stock, Qty 7

0

15

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

16

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

17

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

18

Echo V355000140

COLLAR 8

$1.49

$

In Stock, Qty 20+

0

19

Echo X502000340

LABEL, ECHO

$2.49

$

In Stock, only 3 left!

0

20

Echo C300000952

GUARD, SPROCKET
(Superseded to C300000953)

$33.99

$

In Stock, only 1 left!

0

21

Echo V265000200

NUT 8

$2.49

$

In Stock, Qty 20+

0

22

Echo V805000010

BOLT, TORX 5×20

$1.49

$

In Stock, Qty 20+

0

23

Echo 43302635430

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

24

Echo V805000000

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

25

Echo C304000000

SPIKE, BUMPER

$5.49

$

In Stock, only 1 left!

0

26

Echo V804000000

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

27

Echo C305000430

PLATE, GUIDE - INNER

$11.99

$

In Stock, Qty 20+

0
