CS-370 - Echo Chainsaw (SN: 09001001 - 09999999) Chain Brake, Guide Bar, Saw Chain S/N: 09001001 - 09015540 Parts Diagram

Chainsaw

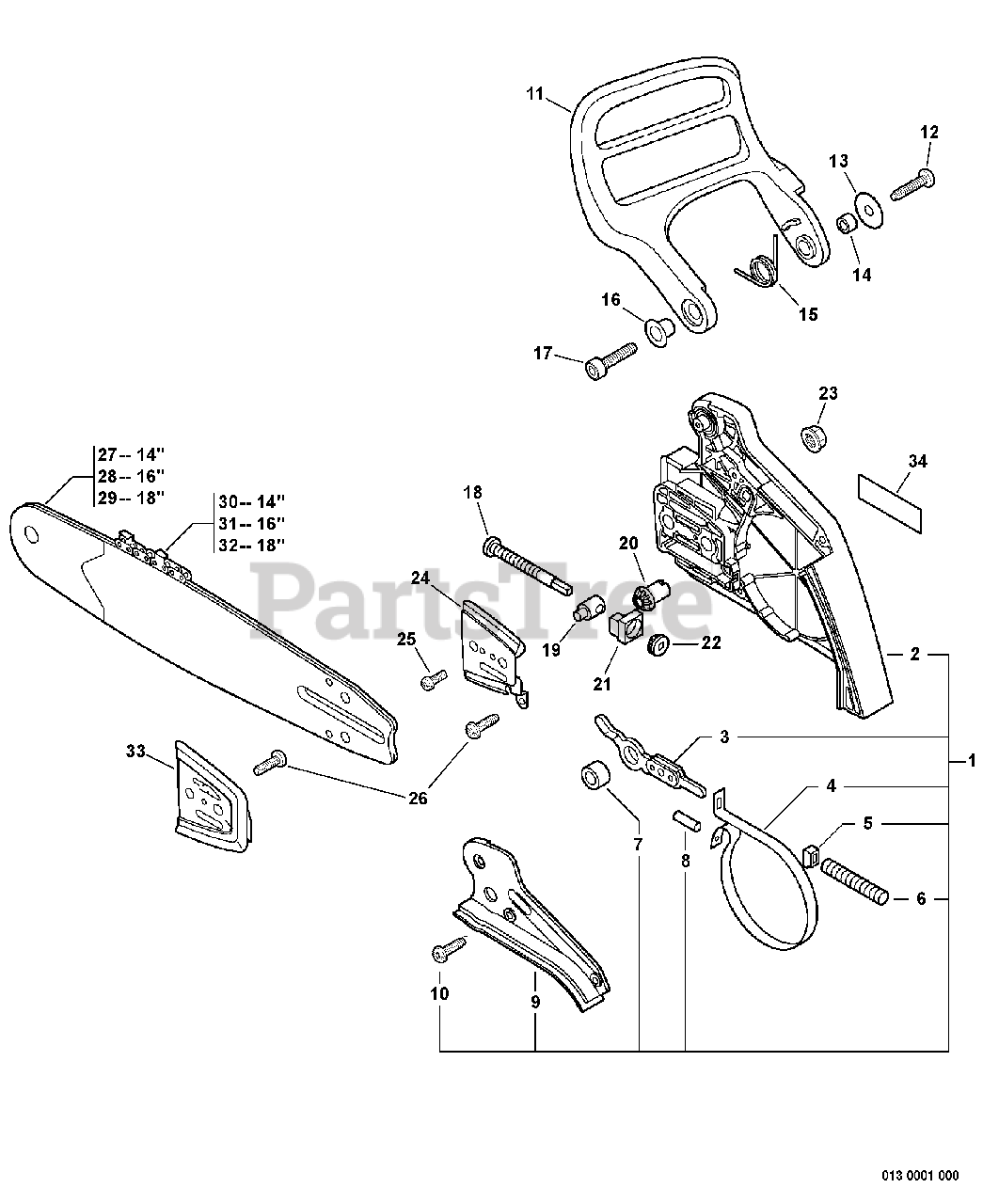

Chain Brake, Guide Bar, Saw Chain S/N: 09001001 - 09015540 Parts Diagram

  • Title

1

Echo C032000280

CHAIN BRAKE ASSY
(Superseded to C032000281)

Note: Includes ITEMS 2-10

$90.99

$

In Stock, only 4 left!

0

2

Echo C300000310

GUARD, SPROCKET
(Superseded to C300000311)

$29.99

$

In Stock, only 3 left!

0

3

Echo C334000090

CONNECTOR, BRAKE

$17.99

$

In Stock, only 2 left!

0

4

Echo C328000080

BAND, BRAKE

$8.49

$

In Stock, only 3 left!

0

5

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

6

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, only 2 left!

0

7

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

8

Echo 9305030098

PIN, SPRING 3x-9.8

$0.99

$

In Stock, Qty 20+

0

9

Echo C345000210

COVER, BRAKE
(Superseded to C345000211)

$4.99

$

Usually ships in 2-4 days

0

10

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

11

Echo C320000480

LEVER, BRAKE

$37.99

$

In Stock, only 4 left!

0

12

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 10

0

13

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 8

0

14

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

15

Echo V452000250

SPRING, TORSION

$1.99

$

In Stock, only 1 left!

0

16

Echo V356000300

COLLAR 10

$2.49

$

Usually ships in 2-4 days

0

17

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, Qty 5

0

18

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 18

0

19

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

20

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

21

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.99

$

In Stock, Qty 20+

0

22

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

23

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

24

Echo C305000011

PLATE, GUIDE - OUTER
(Superseded to C305000012)

$7.99

$

In Stock, only 4 left!

0

25

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 12

0

26

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, Qty 5

0

27

Echo 14A0CD3752

GUIDE BAR, 14" DOUBLE-GUARD
(Superseded to 14A0CD3752C)

Note: GAUGE: .050"

$53.99

$

In Stock, Qty 20+

0

28

Echo 16A0CD3757

GUIDE BAR, 16" DOUBLE-GUARD

Note: GAUGE: .050"

$56.99

$

In Stock, Qty 20+

0

29

Echo 18A0CD3762

GUIDE BAR, 18" DOUBLE-GUARD

Note: GAUGE: .050"

$63.99

$

In Stock, Qty 20+

0

30

Echo 91VG52CQ

SAW CHAIN 14" XTRAGUARD
(Superseded to 91PX52CQ)

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$29.99

$

In Stock, Qty 20+

0

31

Echo 91VG57CQ

SAW CHAIN 16"

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$29.99

$

In Stock, Qty 20+

0

32

Echo 91VG62CQ

SAW CHAIN 18"
(Superseded to 91PX62CQ)

Note: GAUGE: .050" / PITCH: .375" Low Vibration

$31.99

$

In Stock, Qty 20+

0

33

Echo 43301239930

PLATE, GUIDE - INNER

$9.49

$

In Stock, Qty 7

0

34

Echo X502000020

LABEL - ECHO

$2.99

$

Usually ships in 2-4 days

0
