CS-370 - Echo Chainsaw (SN: 09001001 - 09999999) Handles, Throttle Control S/N: 09014533 - 09999999 Parts Diagram

Chainsaw

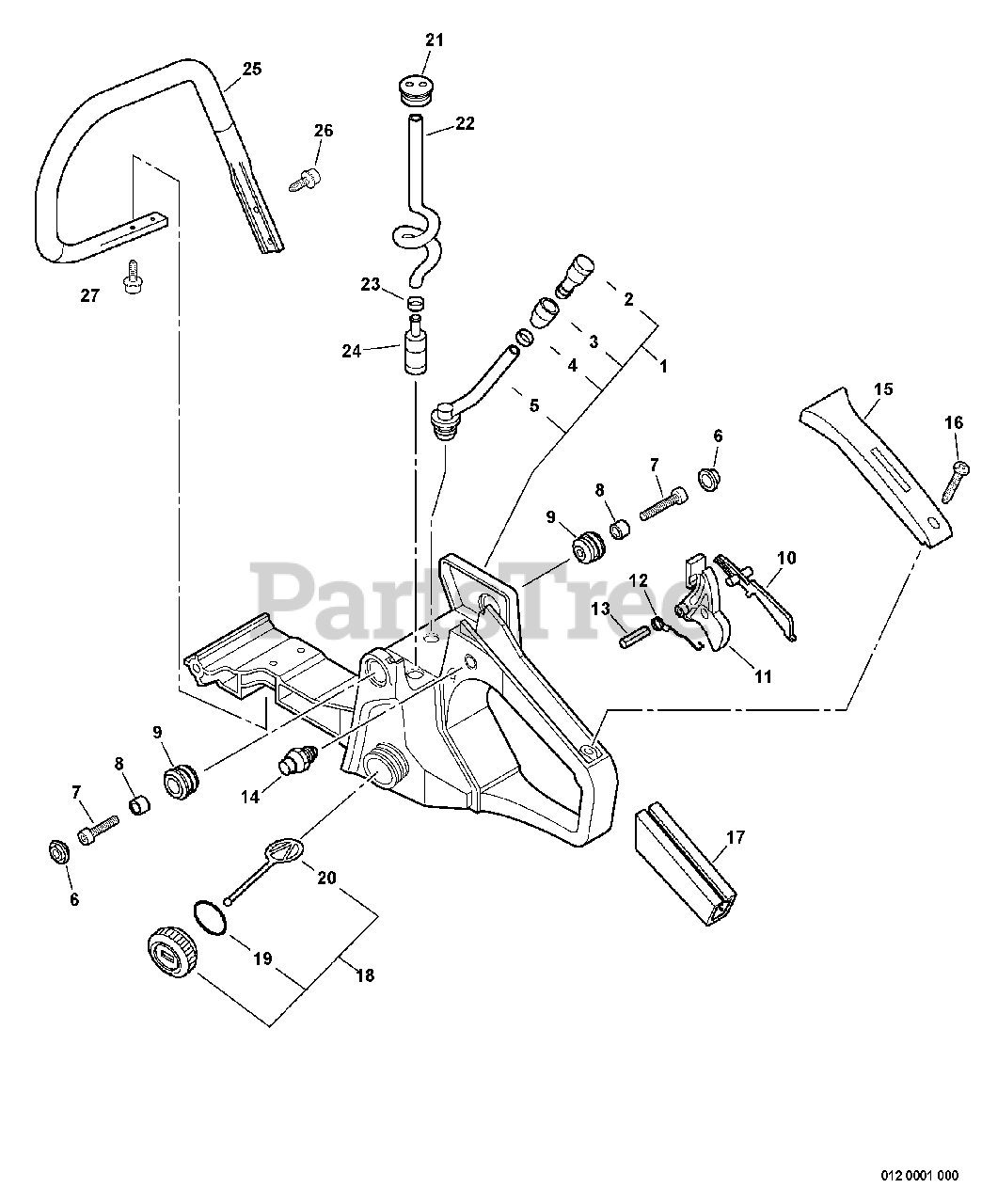

Handles, Throttle Control S/N: 09014533 - 09999999 Parts Diagram

  • Title

1

Echo P021010590

HANDLE ASSY - REAR
(Superseded to P021010591)

Note: Includes ITEMS 2-5

$51.99

$

In Stock, only 1 left!

0

2

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

3

Echo 13132840630

COVER, VENT

$6.49

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201239931

PIPE - VENT
(Superseded to 13201239932)

$12.99

$

In Stock, only 1 left!

0

6

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

7

Echo 90010504020

SCREW - 4X20

$1.49

$

In Stock, only 1 left!

0

8

Echo V352000070

COLLAR - 4

$2.49

$

Usually ships in 2-4 days

0

9

Echo V400000050

CUSHION
(Superseded to V400000051)

$6.99

$

In Stock, only 3 left!

0

10

Echo C460000072

LEVER, TRIGGER LOCKOUT

$3.49

$

In Stock, only 4 left!

0

11

Echo C450000212

TRIGGER, THROTTLE
(Superseded to C450000213)

$5.49

$

In Stock, Qty 10

0

12

Echo V452000260

SPRING, TRIGGER

$1.99

$

In Stock, Qty 14

0

13

Echo 90034540030

PIN - SPRING -- 4X30

$1.99

$

In Stock, only 4 left!

0

14

Echo 17830237930

LATCH, THROTTLE

$9.99

$

In Stock, only 1 left!

0

15

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$11.99

$

In Stock, Qty 6

0

16

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 20+

0

17

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

In Stock, only 1 left!

0

18

Echo 13100435931

CAP ASSY

Note: Includes ITEMS 19-20

$8.49

$

Usually ships in 2-4 days

0

19

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 16

0

20

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

21

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

22

Echo 13200700760

PIPE, FUEL - SPIRAL

$5.99

$

In Stock, Qty 18

0

23

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

24

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.49

$

In Stock, Qty 20+

0

25

Echo C400000430

HANDLE - FRONT
(Superseded to C400000431)

$67.99

$

In Stock, Qty 12

0

26

Echo 9114505020

SCREW - 5X20 -- TAPPING

$0.99

$

In Stock, Qty 20+

0

27

Echo 9114505016

SCREW - 5X16

$0.99

$

In Stock, Qty 11

0
