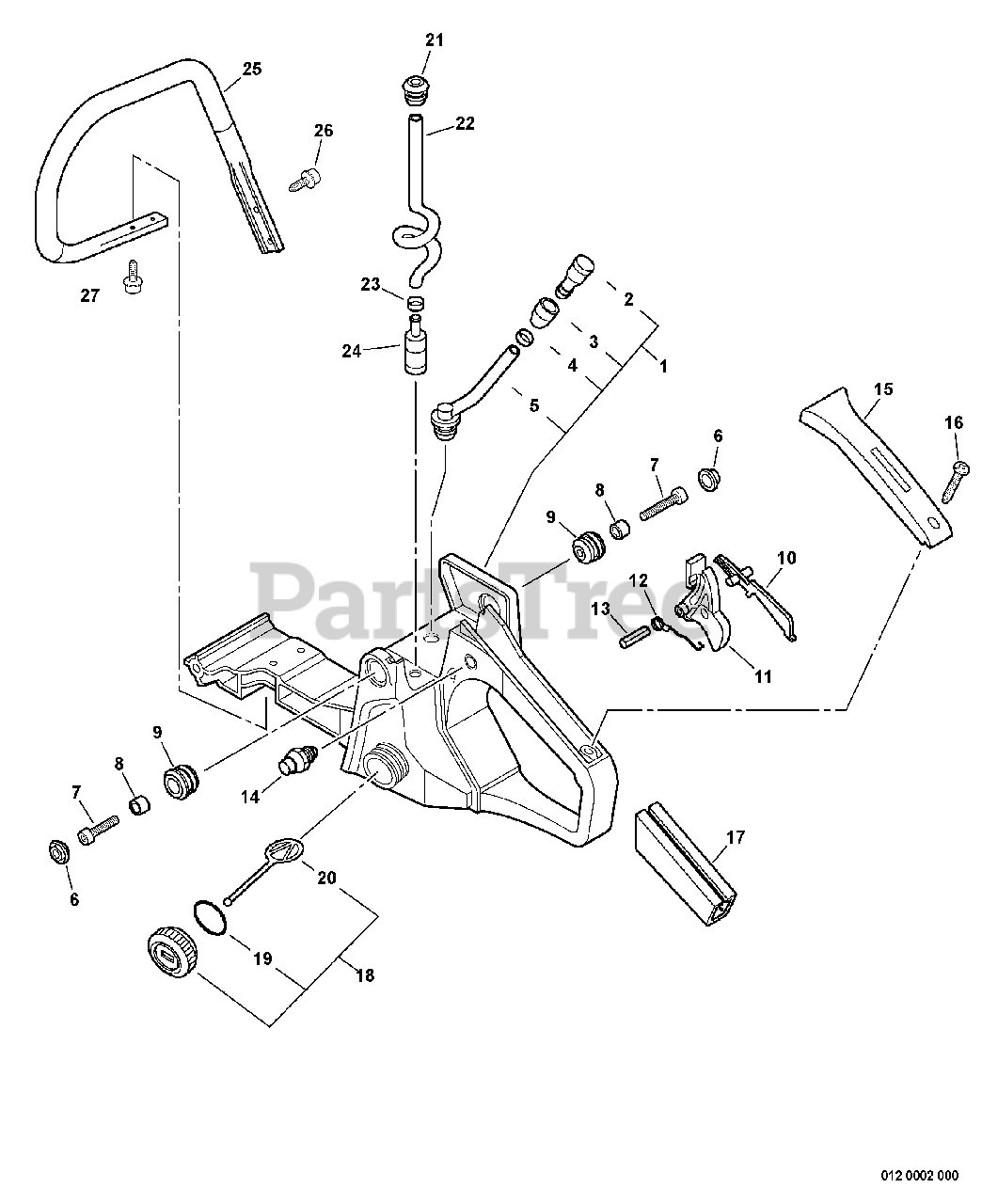

CS-370 - Echo Chainsaw (SN: 10001001 - 10999999) Handles, Throttle Control S/N: 10001001 - 10002200 Parts Diagram

Chainsaw

Handles, Throttle Control S/N: 10001001 - 10002200 Parts Diagram

  • Title

1

Echo P021009920

REAR HANDLE SET
(Superseded to P021009921)

Note: Includes ITEMS 2-5

$61.99

$

In Stock, only 2 left!

0

2

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

3

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201239931

PIPE, VENT 3×6×65
(Superseded to 13201239932)

$15.99

$

In Stock, only 3 left!

0

6

Echo 10091815130

CAP, CUSHION

$2.49

$

In Stock, Qty 20+

0

7

Echo 9110004022

BOLT 4×22

$0.99

$

Usually ships in 2-4 days

0

8

Echo V352000070

COLLAR 4

$2.99

$

Usually ships in 2-4 days

0

9

Echo V400000050

CUSHION 4
(Superseded to V400000051)

$8.49

$

In Stock, only 2 left!

0

10

Echo C460000072

LOCKOUT, THROTTLE

$4.49

$

In Stock, Qty 13

0

11

Echo C450000212

TRIGGER, THROTTLE
(Superseded to C450000213)

$6.49

$

In Stock, only 4 left!

0

12

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 20+

0

13

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

14

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 3 left!

0

15

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

16

Echo V202000070

BOLT 4

$1.49

$

In Stock, only 4 left!

0

17

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

18

Echo 13100435931

CAP ASSY

Note: Includes ITEMS 19-20

$10.99

$

Usually ships in 2-4 days

0

19

Echo 90072000022

O-RING 22

$2.49

$

In Stock, only 2 left!

0

20

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 7

0

21

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

22

Echo 13200700760

PIPE, FUEL W/GROMMET 3×5×250L

$6.99

$

In Stock, only 4 left!

0

23

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

24

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

25

Echo C400000430

HANDLE, FRONT - ALUMINUM
(Superseded to C400000431)

$81.99

$

In Stock, Qty 10

0

26

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

27

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, Qty 5

0
