CS-370 - Echo Chainsaw (SN: C09913001001 - C09913999999) Engine S/N C09913008501-C09913999999 Parts Diagram

Chainsaw

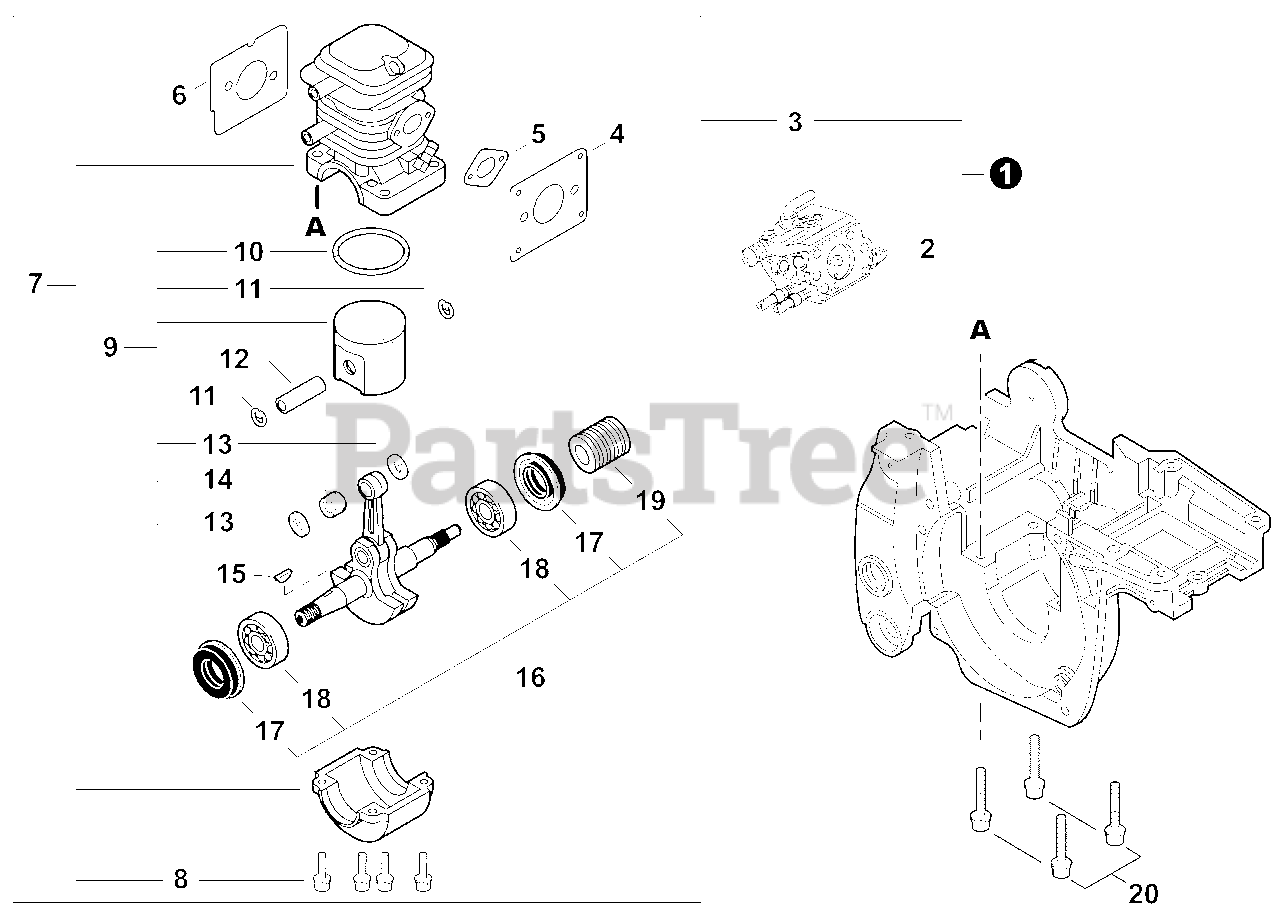

Engine S/N C09913008501-C09913999999 Parts Diagram

  • Title

1

Echo SB1114

SHORT BLOCK AND CARBURETOR WT-981

Note: Includes ITEMS 2-19

$329.99

$

Usually ships in 2-4 days

0

2

Echo A021001890

CARBURETOR WT-981
(Superseded to A021001891)

$80.99

$

In Stock, only 2 left!

0

3

Echo SB1115

SHORT BLOCK

Note: Includes ITEMS 4-7

$300.99

$

Usually ships in 2-4 days

0

4

Echo V103000280

GASKET, INTAKE

$1.99

$

In Stock, only 3 left!

0

5

Echo V103000290

GASKET, INTAKE

$2.99

$

In Stock, Qty 7

0

6

Echo V104000732

GASKET, EXHAUST

$4.99

$

In Stock, only 3 left!

0

7

Echo P021017370

CRANKCASE SET

Note: Includes ITEM 8

$287.99

$

Usually ships in 2-4 days

0

8

Echo 90016205022

BOLT 5×22

$0.99

$

In Stock, Qty 8

0

9

Echo P021009830

PISTON KIT

Note: Includes ITEMS 10-14

$68.99

$

Usually ships in 2-4 days

0

10

Echo A101000110

RING, PISTON

$7.49

$

In Stock, only 1 left!

0

11

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 13

0

12

Echo 10001327430

PIN, PISTON 6×9×30

$8.99

$

Usually ships in 2-4 days

0

13

Echo 10001453630

WASHER, THRUST 9×12×15×3

$6.99

$

Usually ships in 2-4 days

0

14

Echo 10001216131

BEARING, NEEDLE 9

$13.99

$

In Stock, only 3 left!

0

15

Echo 10014212330

KEY, WOODRUFF

$1.99

$

In Stock, Qty 8

0

16

Echo P021009840

CRANKSHAFT ASSY
(Superseded to P021009841)

Note: Includes ITEMS 17-19

$219.99

$

Usually ships in 2-4 days

0

17

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 20+

0

18

Echo 90088836201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

Usually ships in 2-4 days

0

19

Echo V652000010

GEAR, WORM

$13.99

$

In Stock, only 2 left!

0

20

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, Qty 6

0
