CS-3900 - Echo Chainsaw Handles, Fuel System Parts Diagram

Dimensions: 376x214x265 mm (14.8"x8.4"x10.4"). Weight: 4.4 kg (9.7 lb) w/o chain/guide bar. Engine: 2-stroke, 39.6 cc, air-cooled, single cylinder, WARBRO HDA carburetor, flywheel magneto, CDI, CJ-6Y spark plug, recoil starter. Transmission: centrifugal clutch. Fuel: 87 octane unleaded + 32:1/50:1 Echo oil (0.40 L tank). Oil: chain/bar 0.23 L. Chain: automatic plunger pump, chain brake, kick guard. Guide-bar combos: 16A0AD3366, 16E50K, 18ESOK, 18A0AD3372.

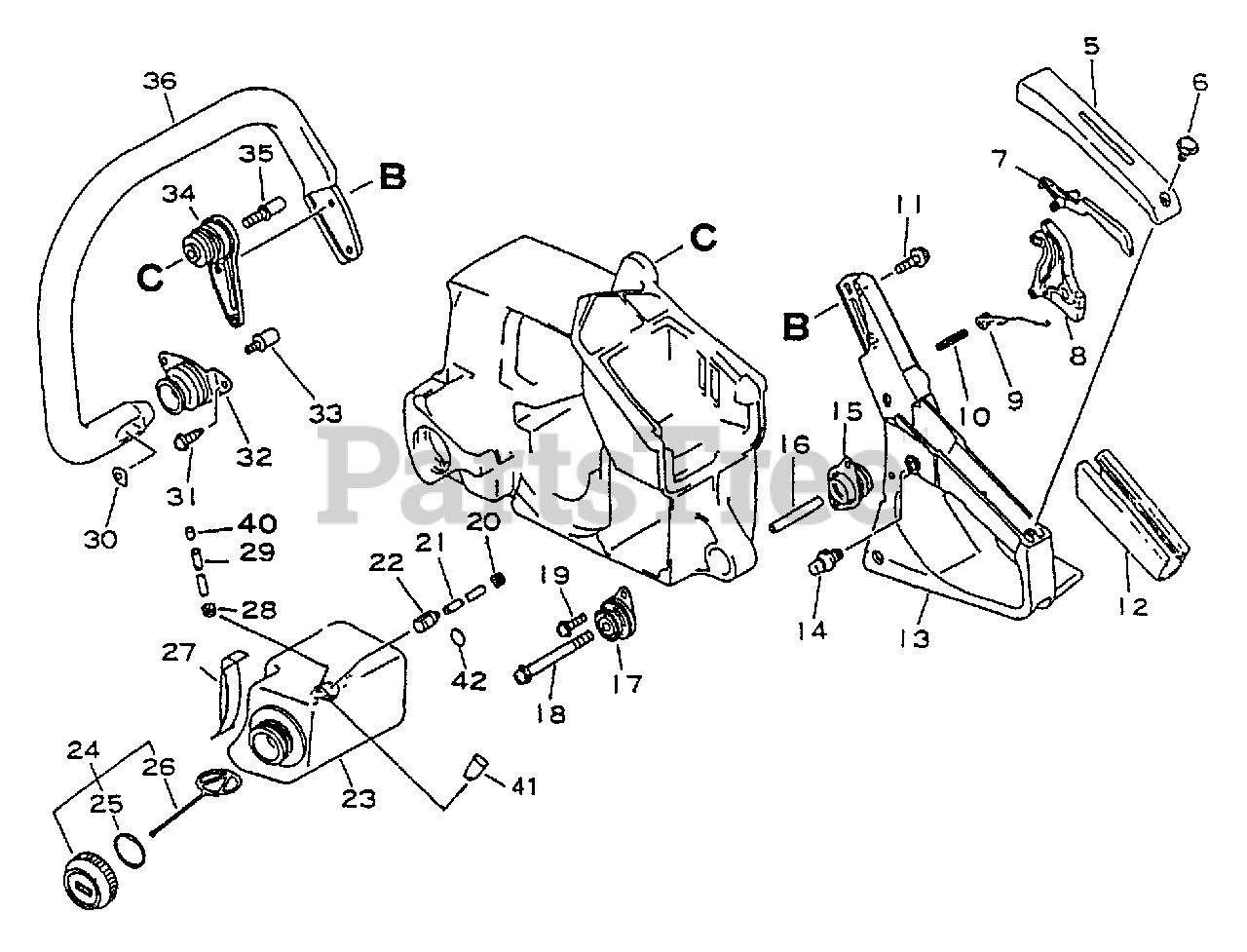

Handles, Fuel System Parts Diagram

  • Title

5

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 1 left!

0

6

Echo 90025204014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

7

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, Qty 5

0

8

Echo 17800537930

TRIGGER, THROTTLE
(Superseded to 17800537931)

$11.99

$

Usually ships in 2-4 days

0

9

Echo 17804335430

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

10

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

11

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

12

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 1 left!

0

13

Echo 35111037930

HANDLE, REAR

$43.99

$

Usually ships in 2-4 days

0

14

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 3 left!

0

15

Echo 10091736030

CUSHION
(Superseded to Discontinued)

$

$

Not available

16

Echo 10092435430

COLLAR

$4.49

$

Usually ships in 2-4 days

0

17

Echo 10092235430

CUSHION, REAR HANDLE

$13.99

$

Usually ships in 2-4 days

0

18

Echo 90025205070

SCREW 5×70

$1.99

$

Usually ships in 2-4 days

0

19

Echo 90024204028

SCREW 4×28

$0.99

$

Usually ships in 2-4 days

0

20

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

21

Echo 13201035430

PIPE, FUEL 3×6×230
(Superseded to 13201035431)

Note: RePower BULK OPTION: 90015

$9.49

$

In Stock, Qty 10

0

22

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

23

Echo 13103937930

TANK, FUEL
(Superseded to 13103937931)

$

$

Not available

24

Echo 13100437932

CAP ASSY, FUEL
(Superseded to 13100437933)

Note: INCLUDES ITEMS 25-26

$12.99

$

In Stock, Qty 6

0

25

Echo 90072000022

O-RING 22

$2.49

$

In Stock, Qty 20+

0

26

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

27

Echo 13191035430

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

28

Echo 13132935430

GROMMET, PULSE
(Superseded to 13132935431)

$2.99

$

Usually ships in 2-4 days

0

29

Echo 13131235431

PIPE, VENT
(Superseded to Discontinued)

$

$

Not available

30

Echo 35161135430

NUT 5 MM

$8.49

$

Usually ships in 2-4 days

0

31

Echo 90025205020

SCREW 5×20

$0.99

$

Usually ships in 2-4 days

0

32

Echo 10091035430

CUSHION

$17.99

$

Usually ships in 2-4 days

0

33

Echo 10091535430

SCREW

$3.99

$

Usually ships in 2-4 days

0

34

Echo 10092135430

CUSHION
(Superseded to Discontinued)

$

$

Not available

35

Echo 10092635430

SCREW
(Superseded to 10091535430)

$3.99

$

Usually ships in 2-4 days

0

36

Echo 35164035430

HANDLE - FRONT
(Superseded to 35161035430)

$67.99

$

Usually ships in 2-4 days

0

40

Echo 13131435430

FILTER, VENT

$1.49

$

In Stock, Qty 6

0

41

Echo 10022307320

PLUG
(Superseded to Discontinued)

$

$

Not available

42

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0
