CS-3900 - Echo Chainsaw Oiler, Automatic Parts Diagram

Dimensions: 376x214x265 mm (14.8"x8.4"x10.4"). Weight: 4.4 kg (9.7 lb) w/o chain/guide bar. Engine: 2-stroke, 39.6 cc, air-cooled, single cylinder, WARBRO HDA carburetor, flywheel magneto, CDI, CJ-6Y spark plug, recoil starter. Transmission: centrifugal clutch. Fuel: 87 octane unleaded + 32:1/50:1 Echo oil (0.40 L tank). Oil: chain/bar 0.23 L. Chain: automatic plunger pump, chain brake, kick guard. Guide-bar combos: 16A0AD3366, 16E50K, 18ESOK, 18A0AD3372.

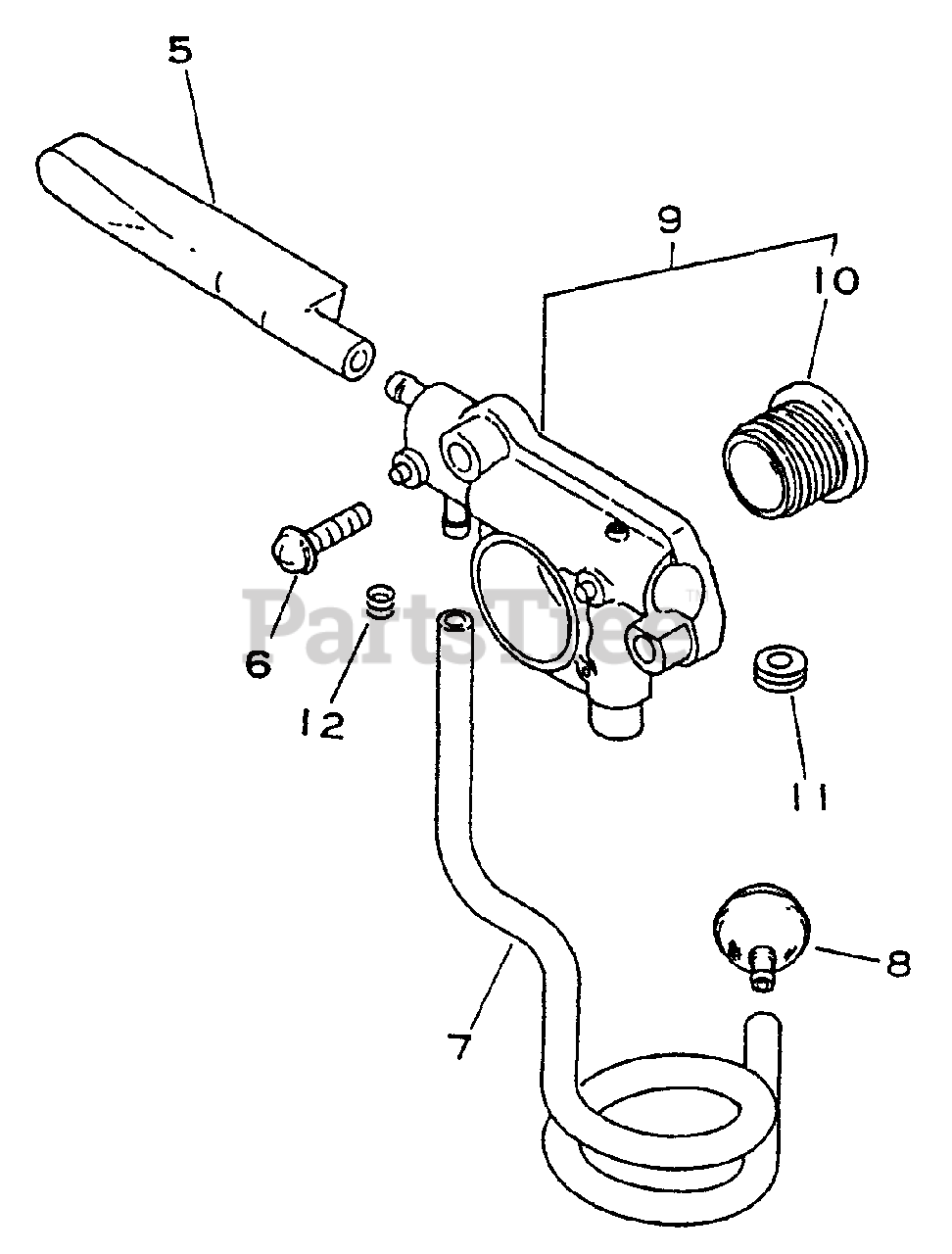

Oiler, Automatic Parts Diagram

  • Title

5

Echo 43721135430

PIPE, OIL

$3.99

$

Usually ships in 2-4 days

0

6

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 20+

0

7

Echo 43721035430

PIPE, OIL
(Superseded to 43721035431)

$6.49

$

In Stock, Qty 8

0

8

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 16

0

9

Echo 43700237330

AUTO-OILER ASSY
(Superseded to Discontinued)

Note: ITEM 10 NOT INCLUDED

$

$

Not available

10

Echo 43706337330

GEAR, WORM

$17.99

$

Usually ships in 2-4 days

0

11

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

12

Echo 43741119830

CLIP 6.6 MM

$

$

Not available
