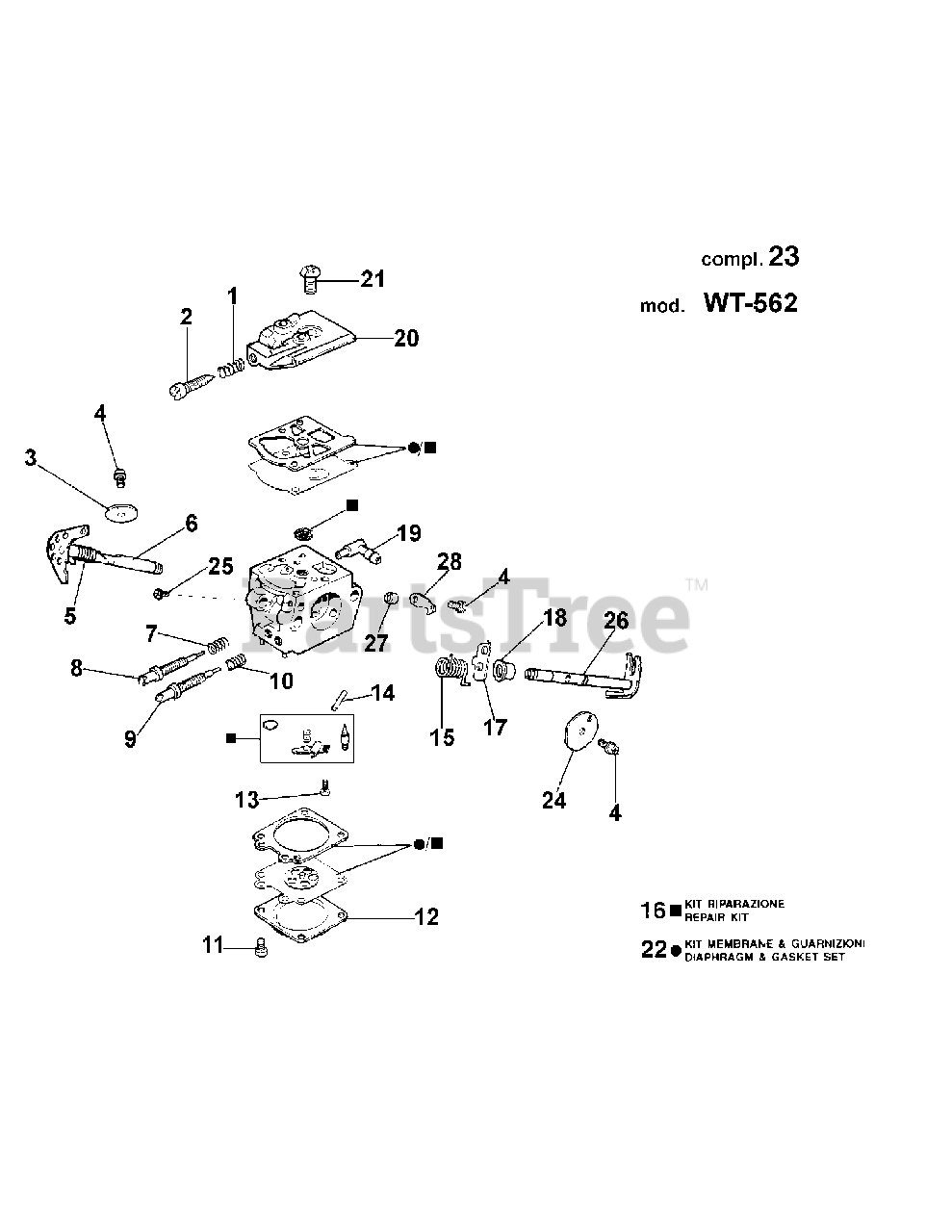

CS 3916 (59AL657-050) - Cub Cadet 16" Chainsaw Carburetor Parts Diagram

16" Chainsaw

Carburetor Parts Diagram

  • Title

1

Cub Cadet EM-094600148

RESSORT

$

$

Not available

2

Cub Cadet EM-074000240

SCREW

$

$

Not available

3

Cub Cadet EM-095000141

CHOKE SHUTER

$

$

Not available

4

Cub Cadet EM-003300209

SCREW

$

$

Not available

5

Cub Cadet EM-094600208

SPRING

$

$

Not available

6

Cub Cadet EM-50050112

SHUTER SHAFT

$

$

Not available

7

Cub Cadet EM-035000165

SPRING "L"

$

$

Not available

8

Cub Cadet EM-2318942

SCREW "L"

$

$

Not available

9

Cub Cadet EM-2318943

SCREW "H"

$

$

Not available

10

Cub Cadet EM-093500115

SPRING "H"

$

$

Not available

11

Cub Cadet EM-035000162

SCREW

$

$

Not available

12

Cub Cadet EM-2318191

COVER

$

$

Not available

13

Cub Cadet EM-003300202

SCREW

$

$

Not available

14

Cub Cadet EM-003300201

PIN

$

$

Not available

15

Cub Cadet EM-50050115

SPRING

$

$

Not available

16

Cub Cadet EM-094600209

REPAIR KIT

$

$

Not available

17

Cub Cadet EM-50050111

LEVER

$

$

Not available

18

Cub Cadet EM-50050109

BUSHING

$

$

Not available

19

Cub Cadet EM-003300036

ELBOW CONNEC..

$

$

Not available

20

Cub Cadet EM-50050107

COVER

$

$

Not available

21

Cub Cadet EM-003300197

SCREW

$

$

Not available

22

Cub Cadet EM-094600210

DIAPH/GASKET

$

$

Not available

23

Cub Cadet EM-2318950

CARBUR.
(Superseded to EM-50050260)

$

$

Not available

24

Cub Cadet EM-094600140

CHOKE SHUTER

$

$

Not available

25

Cub Cadet EM-50050117

SCREW

$

$

Not available

26

Cub Cadet EM-50050113

STARTER SHAFT

$

$

Not available

27

Cub Cadet EM-50050110

BUSHING

$

$

Not available

28

Cub Cadet EM-50050108

LEVER

$

$

Not available
