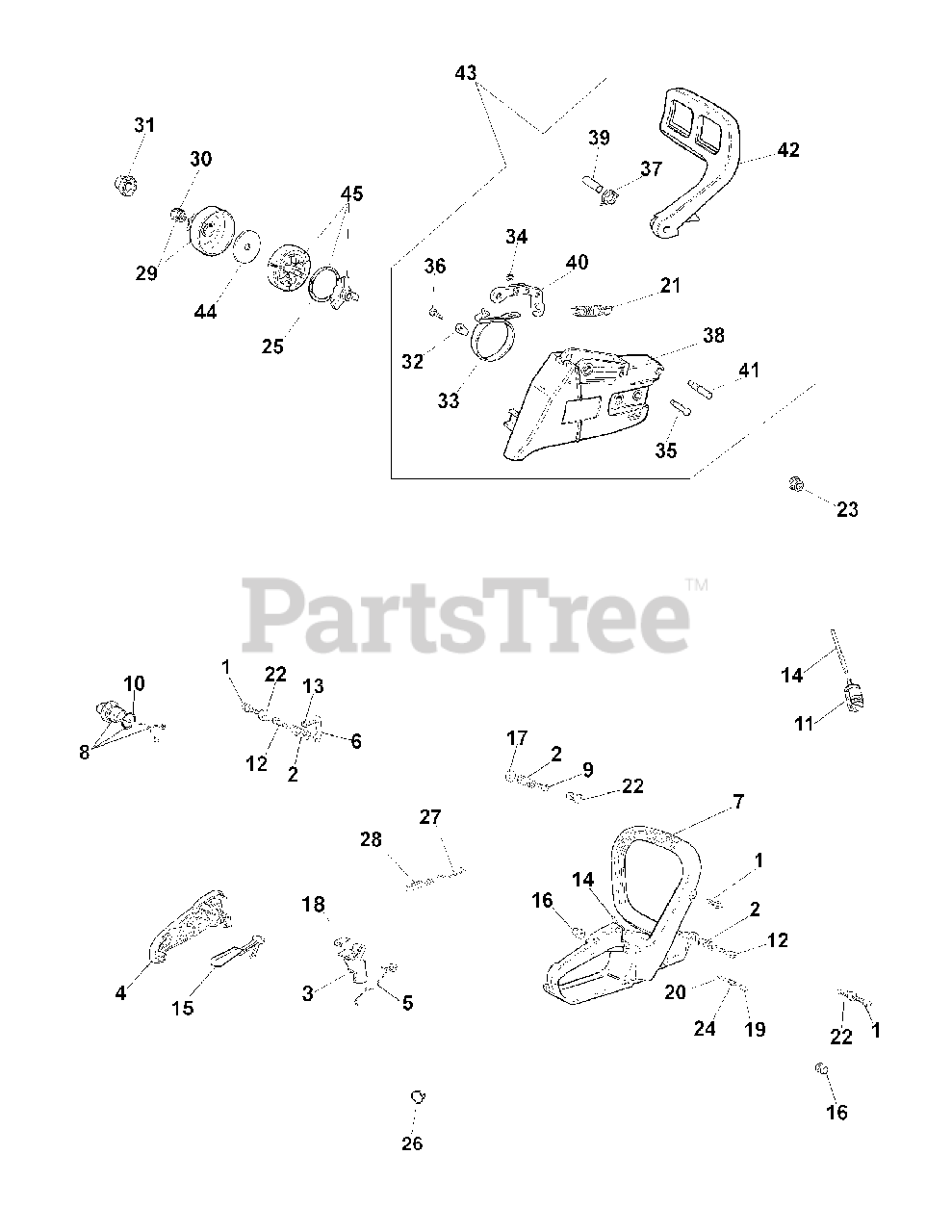

CS 3916 (59AL657-150) - Cub Cadet 16" Chainsaw Handle, Fuel Tank, Chain Parts Diagram

16" Chainsaw

Handle, Fuel Tank, Chain Parts Diagram

  • Title

1

Cub Cadet EM-097000061A

SCREW

$

$

Not available

2

Cub Cadet EM-50050047

SPRING

$

$

Not available

3

Cub Cadet EM-50052044

THROTTLE LEVER

$10.99

$

Usually ships in 3-6 days

0

4

Cub Cadet EM-50050215

HANDLE COVER.

$

$

Not available

5

Cub Cadet EM-097000028

SPRING
(Superseded to EM-097000028R)

$

$

Not available

6

Cub Cadet EM-50050123

ROPE

$

$

Not available

7

Cub Cadet EM-50050217

HANDLE

$

$

Not available

8

Cub Cadet EM-50050194

COMPL.CAP

$

$

Not available

9

Cub Cadet EM-3960073

SCREW

$

$

Not available

10

Cub Cadet EM-3049025

O-RING

$

$

Not available

11

Cub Cadet EM-094600450

FUEL FILTER

$

$

Not available

12

Cub Cadet EM-094600041

SCREW

$

$

Not available

13

Cub Cadet EM-3960070

SCREW

$

$

Not available

14

Cub Cadet EM-50050070

FUEL LINE

$4.99

$

In Stock, only 2 left!

0

15

Cub Cadet EM-50050246

LEVER
(Superseded to EM-50050046AR)

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet EM-50010061

ANNULAR BUFFER
(Superseded to EM-50010061R)

$

$

Not available

17

Cub Cadet EM-3918010

WASHER

$

$

Not available

18

Cub Cadet EM-50050119

PLATE

$9.99

$

Usually ships in 3-6 days

0

19

Cub Cadet EM-50050071

TANK BREATHER

$

$

Not available

20

Cub Cadet EM-094500577A

TANK BREATHER
(Superseded to EM-094500577AR)

$

$

Not available

21

Cub Cadet EM-095000219

SPRING

$

$

Not available

22

Cub Cadet EM-50050182

SCREW GUIDE

$

$

Not available

23

Cub Cadet EM-50010148R

NUT

$

$

Not available

24

Cub Cadet EM-094500575

SPRING

$

$

Not available

25

Cub Cadet EM-094500029

CLUTCH SPRING

$

$

Not available

26

Cub Cadet EM-50050183

CAP

$

$

Not available

27

Cub Cadet EM-50050044

THROTTLE ROD

$

$

Not available

28

Cub Cadet EM-50070197

KNOB
(Superseded to EM-50070197A)

$

$

Not available

29

Cub Cadet EM-50050136

CLUTCH DRUM

$

$

Not available

30

Cub Cadet EM-50030089

BEARING

$

$

Not available

31

Cub Cadet EM-50050025

WORM GEAR 3/8"

$

$

Not available

32

Cub Cadet EM-50050125

SPACER

$

$

Not available

33

Cub Cadet EM-50050039

BRAKE BAND

$64.99

$

Usually ships in 3-6 days

0

34

Cub Cadet EM-3026003

SNAP RING

$

$

Not available

35

Cub Cadet EM-097000106

PIN

$

$

Not available

36

Cub Cadet EM-3960070

SCREW

$

$

Not available

37

Cub Cadet EM-50010088A

SPRING

$

$

Not available

38

Cub Cadet n/a

CHAIN COVER

$

$

Currently unavailable

39

Cub Cadet EM-50050066

PIN

$

$

Not available

40

Cub Cadet EM-097000146

LEVER

$

$

Not available

41

Cub Cadet EM-50050064

PIN

$

$

Not available

42

Cub Cadet EM-50050254

HAND GUARD

$

$

Not available

43

Cub Cadet EM-50052049

CHAIN COVER

$105.99

$

Usually ships in 3-6 days

0

44

Cub Cadet EM-004000352

WASHER

$

$

Not available

45

Cub Cadet EM-094000129

COMPL.CLUTCH

$

$

Not available

Cub Cadet 737-0320

CCC 2-CYCLE OIL 2.6 OZ BLT 50:1

$

$

Not available

Cub Cadet 490-700-0003

BAR 16"

Note: (Not shown)

$

$

Not available

Cub Cadet 490-700-0007

CHAIN 16"

Note: NLA (Not shown)

$

$

Not available

Cub Cadet 731-04542

SHEATH-CHAIN & BAR 16"

Note: (Not shown)

$

$

Not available
