CS-400 - Echo Chainsaw (SN: C08111001001 - C08111999999) Fuel System S/N C08111001001-C08111031800 Parts Diagram

Chainsaw

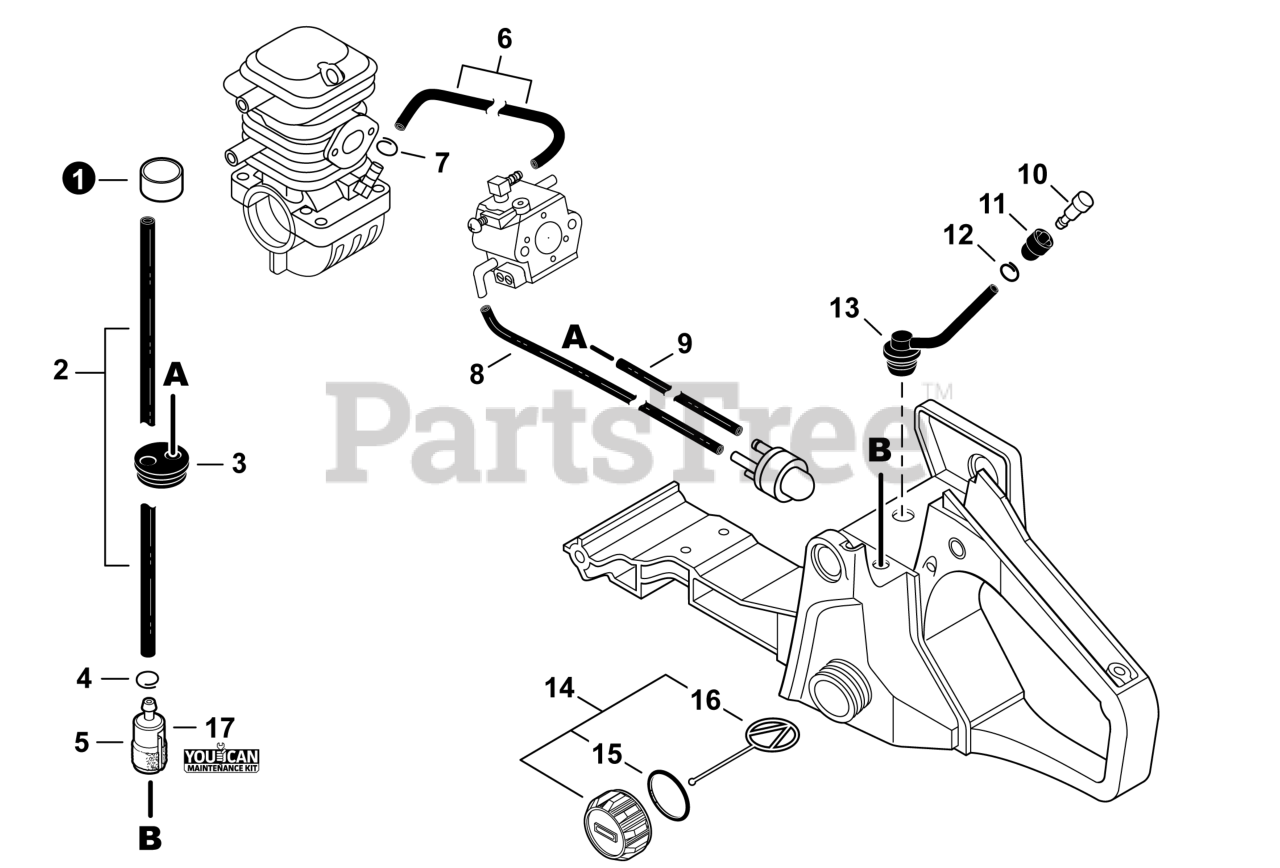

Fuel System S/N C08111001001-C08111031800 Parts Diagram

  • Title

1

Echo V475003970

TUBE 8×9×16

$0.99

$

In Stock, only 4 left!

0

2

Echo 13201000760

PIPE, FUEL 3×5×250
(Superseded to Discontinued)

$

$

Not available

3

Echo 13211544331

GROMMET, FUEL

$2.49

$

In Stock, Qty 20+

0

4

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0

5

Echo A369000460

FILTER, FUEL

$9.99

$

In Stock, Qty 20+

0

6

Echo V471001601

PIPE, PULSE 2.4×6×105

$2.99

$

Usually ships in 2-4 days

0

7

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, only 3 left!

0

8

Echo V471001281

PIPE 2.4×5×105 BLACK

$4.99

$

In Stock, Qty 6

0

9

Echo V471001470

PIPE, FUEL 2.4×5×200 BLACK
(Superseded to V471001471)

$4.99

$

In Stock, only 2 left!

0

10

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

11

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

12

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

13

Echo 13201239931

PIPE, VENT 3×6×65
(Superseded to 13201239932)

$15.99

$

In Stock, only 3 left!

0

14

Echo P021036960

CAP ASSY, FUEL

Note: Includes Items 15-16

$12.99

$

In Stock, only 4 left!

0

15

Echo 90072000022

O-RING 22

$2.49

$

In Stock, only 2 left!

0

16

Echo A365000050

FUEL CAP CONNECTOR (L=60MM)

$2.49

$

In Stock, Qty 7

0

17

Echo 90155Y

TUNE-UP KIT - YOUCANT

$39.99

$

In Stock, Qty 9

0
