CS-400 - Echo Chainsaw (SN: C08111001001 - C08111999999) Handles, Throttle Control Parts Diagram

Chainsaw

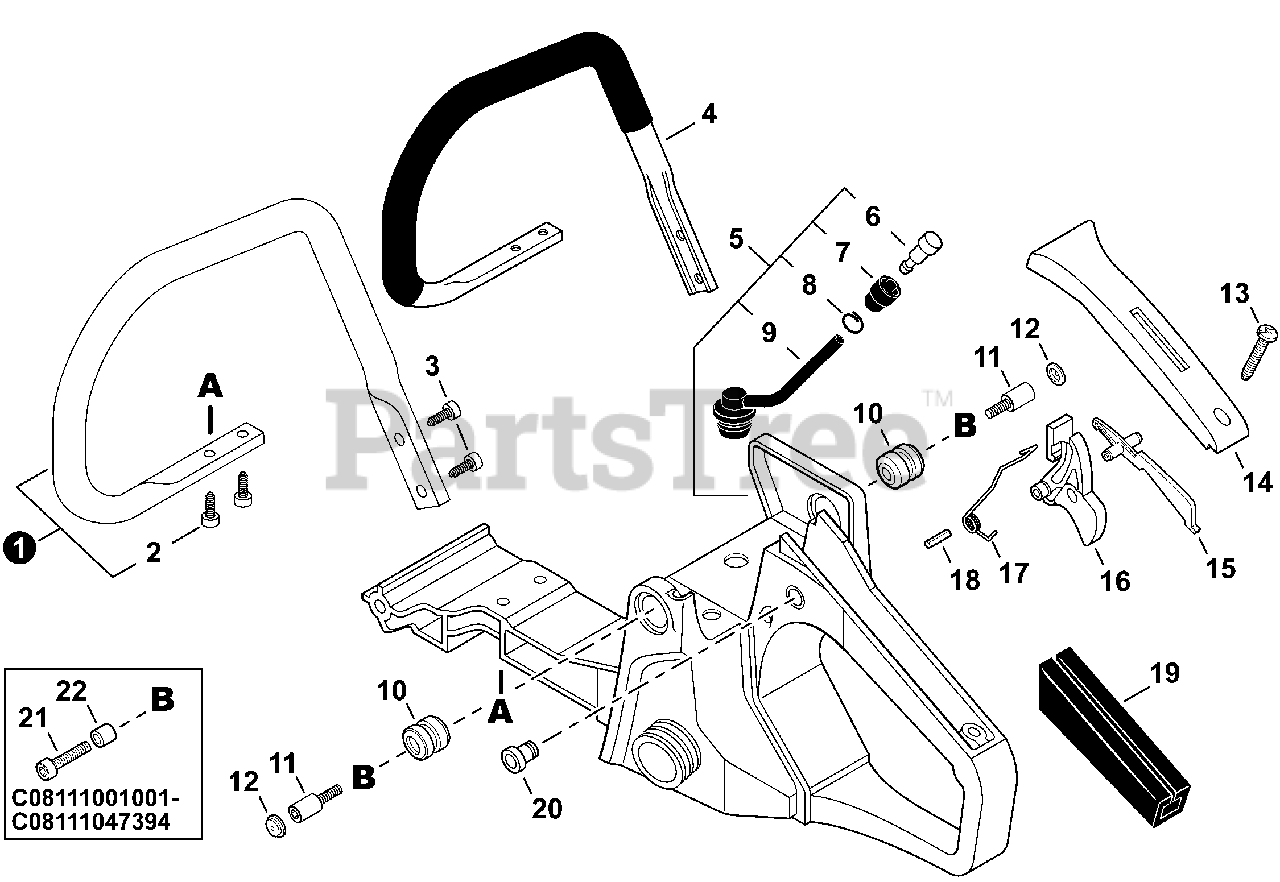

Handles, Throttle Control Parts Diagram

  • Title

1

Echo P021047330

HANDLE SET, FRONT - NYLON

Note: Includes ITEM 2

$31.99

$

In Stock, only 4 left!

0

2

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

4

Echo C400000430

HANDLE, FRONT - ALUMINUM
(Superseded to C400000431)

$75.99

$

In Stock, Qty 10

0

5

Echo P021016451

HANDLE ASSY, REAR
(Superseded to P021016452)

Note: Includes ITEMS 6-9

$57.99

$

In Stock, only 2 left!

0

6

Echo A356000030

VENT ASSY
(Superseded to A356000031)

$8.99

$

In Stock, Qty 20+

0

7

Echo 13132840630

HOLDER, VENT

$6.99

$

In Stock, Qty 20+

0

8

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

9

Echo 13201239931

PIPE, VENT 3×6×65
(Superseded to 13201239932)

$13.99

$

In Stock, only 3 left!

0

10

Echo V400000050

CUSHION 4
(Superseded to V400000051)

$7.99

$

In Stock, only 4 left!

0

11

Echo V202000700

BOLT 4×10×13.5

$0.99

$

In Stock, only 2 left!

0

12

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 5

0

13

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, Qty 7

0

14

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$12.99

$

In Stock, only 2 left!

0

15

Echo C460000072

LOCKOUT, THROTTLE

$3.99

$

In Stock, Qty 20+

0

16

Echo C450000212

TRIGGER, THROTTLE
(Superseded to C450000213)

$5.99

$

In Stock, Qty 6

0

17

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, only 3 left!

0

18

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 13

0

19

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.99

$

In Stock, only 2 left!

0

20

Echo V162000040

PLUG

$1.99

$

In Stock, only 4 left!

0

21

Echo 90010504020

BOLT, HEX 4×20

Note: SN: C08111001001-C08111047394

$1.49

$

In Stock, only 2 left!

0

22

Echo 10091515131

COLLAR 4.2×7×9.5

Note: SN: C08111001001-C08111047394

$3.49

$

In Stock, only 2 left!

0
