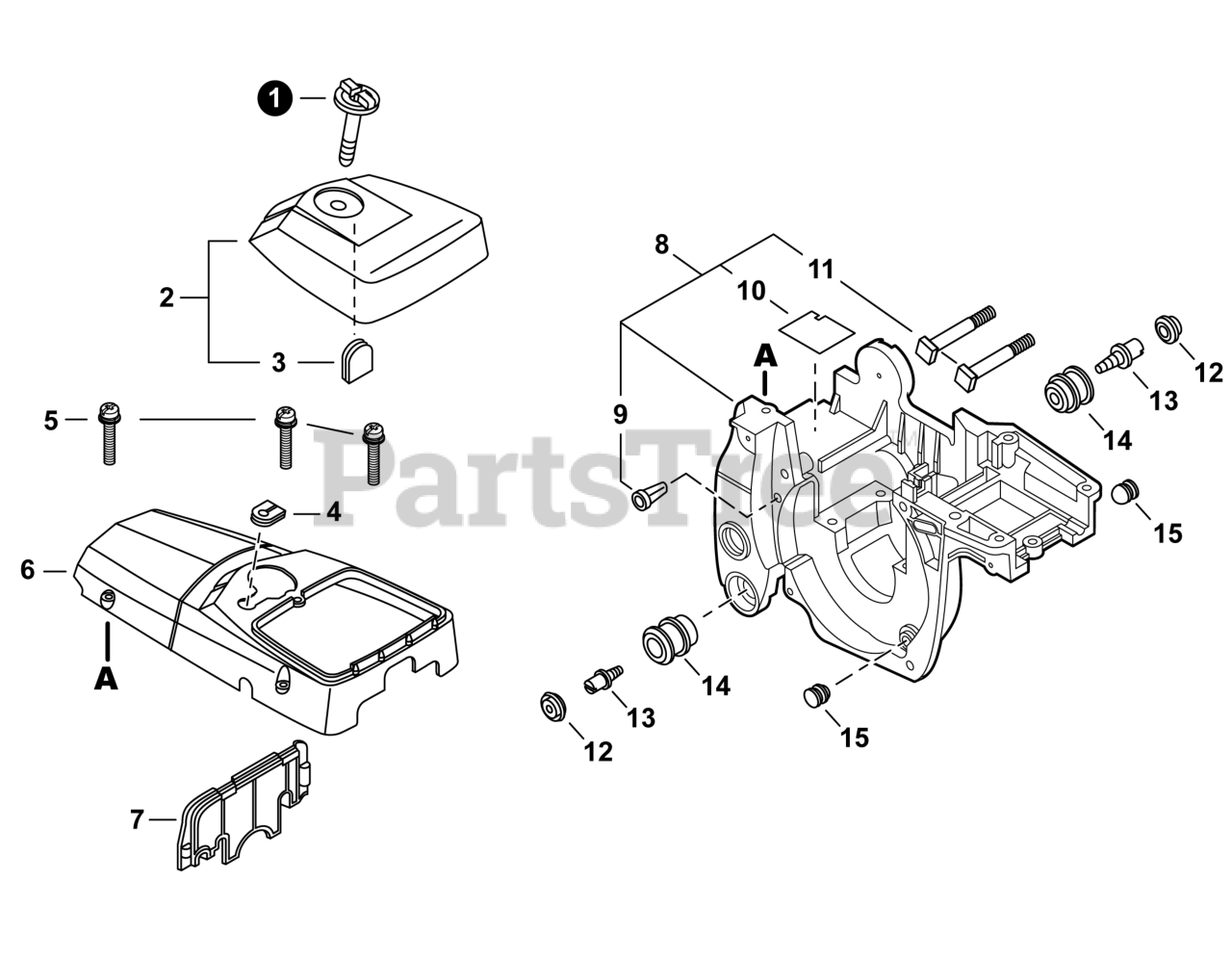

CS-400 - Echo Chainsaw (SN: F00512001001 - F00512999999) Engine Cover Parts Diagram

Measures 15.5 in. long, 9.6 in. wide and 10.1 in. tall and weighs only 10.1 lb. (4.6 kg) without chain or guide bar. It is powered by a 40.2 cc air-cooled single-cylinder, two-stroke engine that delivers a 12 000-rpm WOT speed, 4 100-rpm clutch-engagement speed and a 2 700-rpm idle. The carburetor is factory-tuned for a 50:1 gasoline-oil mix and can run on 89-octane unleaded fuel, although fuel containing more than 10 % ethyl alcohol, 15 % MTBE or methyl alcohol is disallowed. The saw comes with 16-inch and 18-inch guide bars, 91 px/91 vg chains and a variety of safety features - front and rear hand guards, an anti-vibration device, a chain catcher, a band brake and a spark arrester muffler. The throttle lockout and chain-catcher are built to protect users from accidental starts or chain dislodgement.
