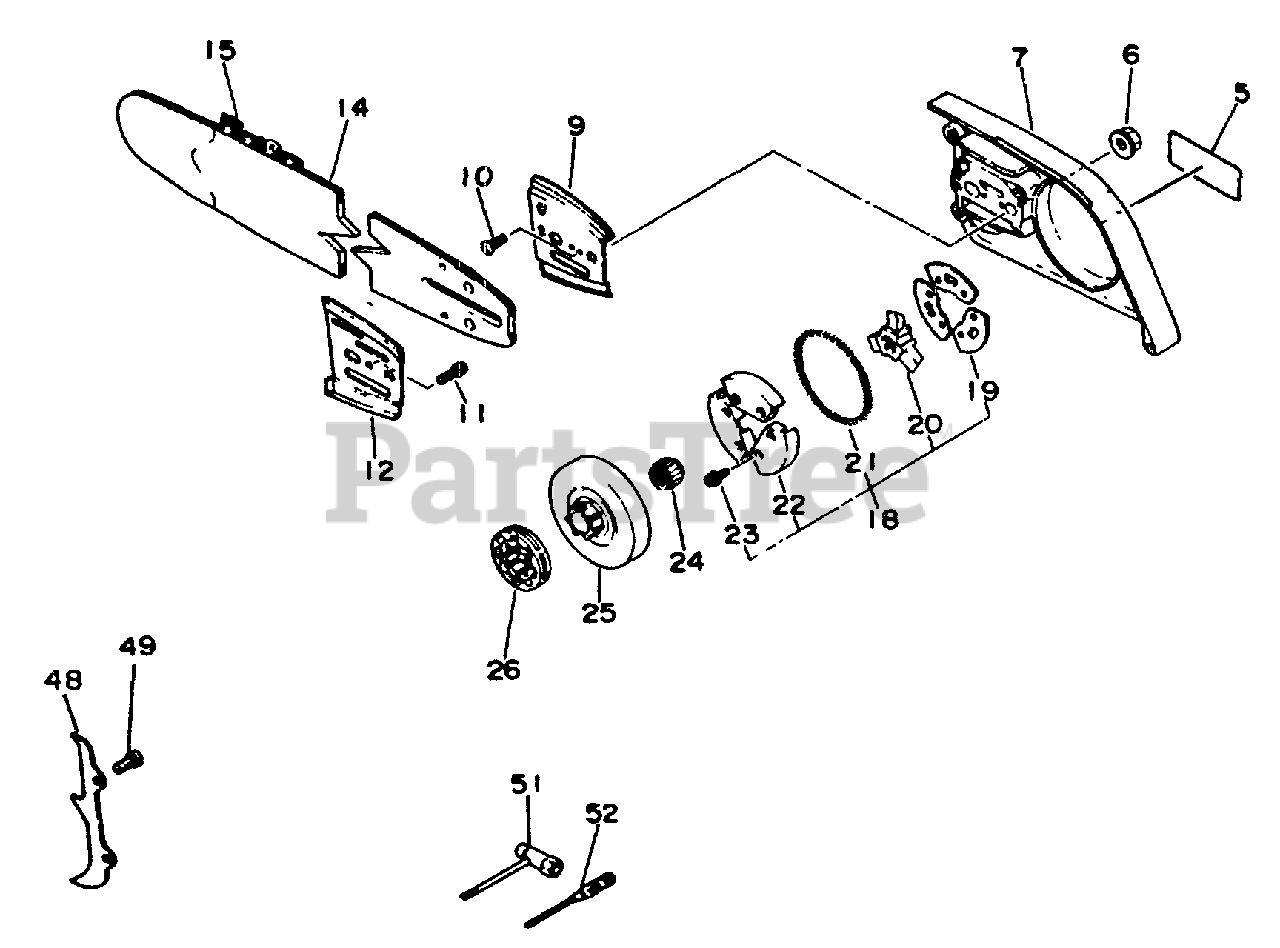

CS-4000 - Echo Chainsaw Clutch, Cutting Attch Parts Diagram

Chainsaw

Clutch, Cutting Attch Parts Diagram

  • Title

5

Echo 89011818331

LABEL - ECHO
(Superseded to 89011838130)

$

$

Not available

6

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

7

Echo 43300519830

GUARD, SPROCKET
(Superseded to Discontinued)

$

$

Not available

9

Echo 43301214533

PLATE, GUIDE - OUTER
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024103006

SCREW - 3X6

$0.99

$

In Stock, Qty 11

0

11

Echo 90028104010

SCREW - 4X10
(Superseded to 90016204010)

$1.49

$

In Stock, Qty 20+

0

12

Echo 43301319831

PLATE, GUIDE - INNER

$5.49

$

In Stock, only 1 left!

0

14

------------------

GUIDE BAR

$

$

Not available

15

------------------

CHAIN, SAW

$

$

Not available

18

Echo 17500019830

CLUTCH ASSY
(Superseded to 17500037530)

$65.99

$

In Stock, only 2 left!

0

19

Echo 17501919830

PLATE, CLUTCH

$2.99

$

Usually ships in 2-4 days

0

20

Echo 17501619830

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0

21

Echo 17501819830

SPRING, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

22

Echo 17500219830

CLUTCH SHOE SET

$40.99

$

Usually ships in 2-4 days

0

23

Echo 90028104008

SCREW - 4X8
(Superseded to 90023804008)

$0.99

$

In Stock, Qty 10

0

24

Echo 17501219830

BEARING, NEEDLE

$11.99

$

In Stock, only 1 left!

0

25

Echo 17510519831

DRUM, CLUTCH
(Superseded to 17510533330)

$

$

Not available

26

Echo 17511412530

SPROCKET, RIM

$18.99

$

In Stock, Qty 20+

0

48

Echo 88021030131

SPIKE
(Superseded to 88020030131)

$

$

Not available

49

Echo 88021030130

BOLT

$

$

Currently unavailable

51

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 10

0

52

Echo 89581203930

SCREWDRIVER

$4.49

$

In Stock, only 4 left!

0
