CS-4000 - Echo Chainsaw Oiler Sys Parts Diagram

Model CS-4000: Dimensions 385 x 220 x 278 mm (15.2" x 8.66" x 10.9"). Weight (dry) 4.9 kg (10.8 lb). 2-stroke, air-cooled, single-cylinder engine, 138.9 cc. Walbro HDA-OE diaphragm carburetor. CDI ignition. Recoil starter. Automatic centrifugal clutch. Fuel: gasoline + 2-stroke oil 32:1 or 50:1. Fuel tank 0.45 L. Oil tank 0.28 L. Guide bar and chain supplied separately. Low-kick guard chain (Echo Oregon 16e50k/18e50k). Standard features: hand guards, lock-out, throttle, anti-vibration, high-speed idle, kick guard, chain catcher. Chain brake only on CS-4000P.

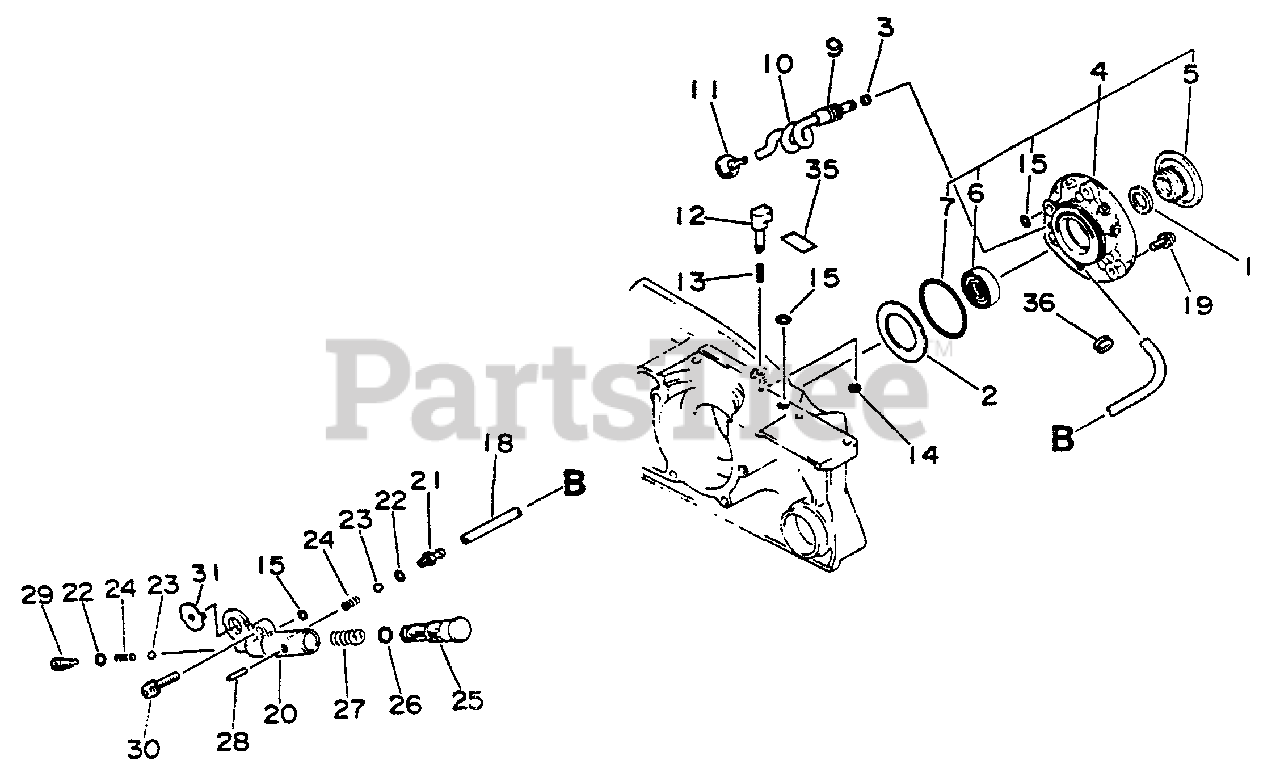

Oiler Sys Parts Diagram

  • Title

1

Echo 10012719830

WASHER

$2.49

$

Usually ships in 2-4 days

0

2

Echo 10062519830

PLATE
(Superseded to Discontinued)

$

$

Not available

3

Echo 43741119830

CLIP 6.6 MM

$

$

Not available

4

Echo 43700030130

AUTO-OILER ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 43706330130

GEAR, WORM
(Superseded to Discontinued)

Note: For units prior to S/N 0021493, use P/N 43706319830

$

$

Not available

6

Echo 10021219830

SEAL, OIL

$6.49

$

In Stock, only 2 left!

0

7

Echo 43702519830

O-RING
(Superseded to Discontinued)

$

$

Not available

15

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

9

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

10

Echo 13201019830

PIPE - SPIRAL
(Superseded to Discontinued)

$

$

Not available

11

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 16

0

12

Echo 43703919831

KNOB

$2.49

$

Usually ships in 2-4 days

0

13

Echo 43701519830

SPRING

$1.99

$

In Stock, only 1 left!

0

14

Echo 90700000003

RING, RETAINING - 3

$

$

Currently unavailable

15

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

18

Echo 43721119830

PIPE, OIL
(Superseded to Discontinued)

$

$

Not available

19

Echo 90028104010

SCREW - 4×10
(Superseded to 90016204010)

Note: For more information on "Oilers" See Serv. Bull. 87-1

$1.49

$

In Stock, Qty 20+

0

Echo 43710019831

OIL PUMP ASSY
(Superseded to 43710019832)

$27.99

$

Usually ships in 2-4 days

0

15

Echo 90072000003

O-RING 3

$1.49

$

In Stock, only 2 left!

0

20

Echo 43711019831

BODY, OIL PUMP

Note: For units prior to S/N 0017093, use 43710019831

$9.49

$

Usually ships in 2-4 days

0

21

Echo 43711819830

CONNECTOR, PIPE

$3.99

$

Usually ships in 2-4 days

0

22

Echo 43712203430

O-RING

$1.49

$

In Stock, Qty 5

0

23

Echo 43701200330

VALVE, BALL

$0.99

$

In Stock, only 4 left!

0

24

Echo 43701300330

SPRING, VALVE
(Superseded to V450000290)

$1.49

$

In Stock, Qty 5

0

25

Echo 43711219831

PISTON, OIL PUMP - BLACK

Note: For units prior to S/N 0017093, use 43710019831

$5.49

$

In Stock, only 1 left!

0

26

Echo 90072000007

O-RING 7 MM

$0.99

$

In Stock, only 1 left!

0

27

Echo 43711119830

SPRING

$1.99

$

Usually ships in 2-4 days

0

28

Echo 90034520016

PIN, SPRING 2×16

$2.49

$

Usually ships in 2-4 days

0

29

Echo 43712110130

ADAPTOR, OIL PUMP

$5.99

$

Usually ships in 2-4 days

0

30

Echo 90028105020

SCREW - 5×20
(Superseded to 90023805020)

$0.99

$

In Stock, Qty 20+

0

31

Echo 43741319830

BRACKET, OIL PUMP

$1.99

$

Usually ships in 2-4 days

0

35

Echo 89015530130

LABEL, CAUTION
(Superseded to X524000680)

$4.49

$

Usually ships in 2-4 days

0

36

Echo 43741119830

CLIP 6.6 MM

$

$

Not available
