CS-4010 - Echo Chainsaw (SN: C91315001001 - C91315999999) Chain Brake Parts Diagram

Chainsaw

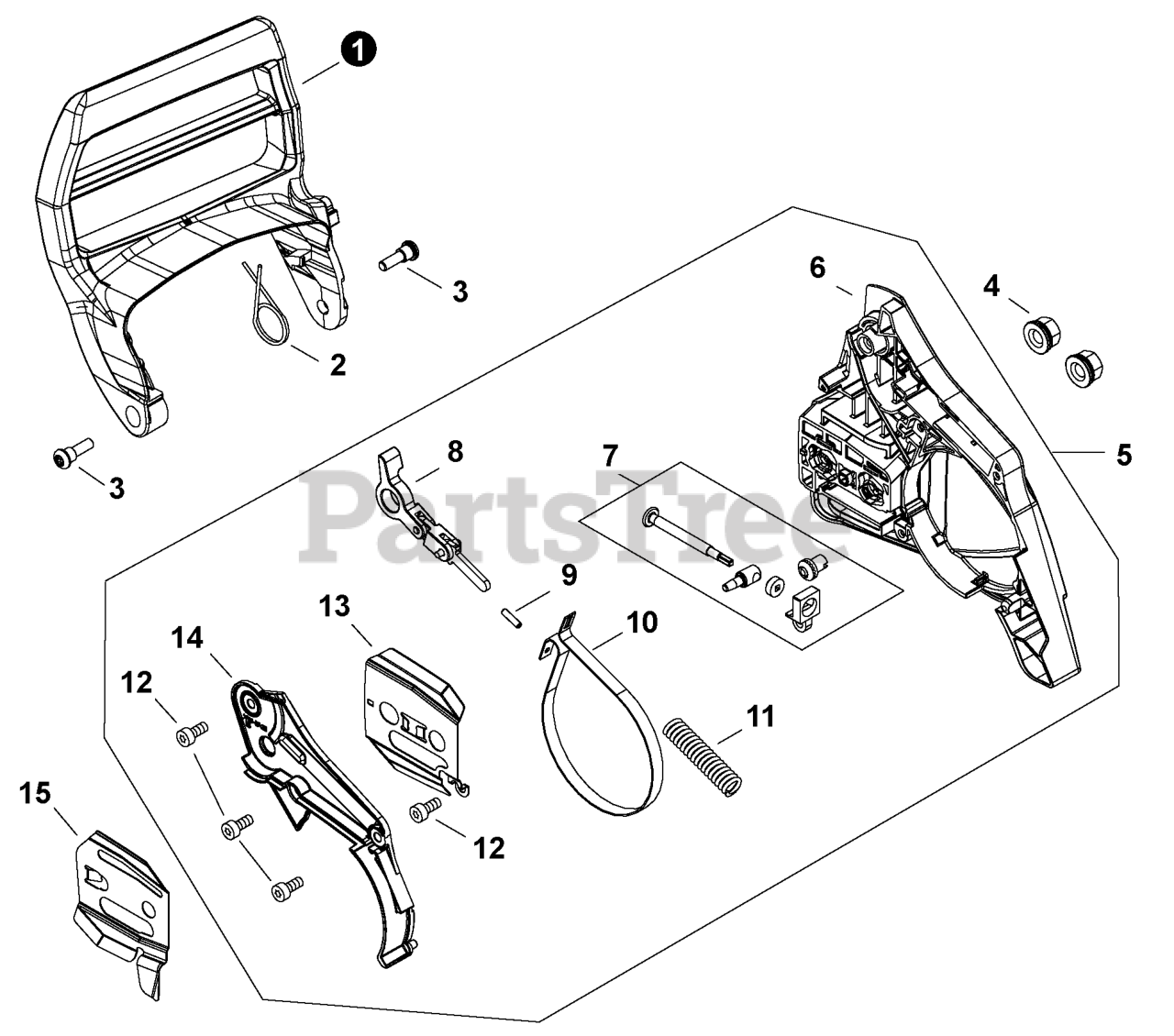

Chain Brake Parts Diagram

  • Title

1

Echo C320000640

LEVER, BRAKE

$10.99

$

Usually ships in 2-4 days

0

2

Echo V452000250

SPRING, TORSION

$1.99

$

In Stock, only 3 left!

0

3

Echo V203002610

BOLT, TORX 5x13

$0.99

$

Usually ships in 2-4 days

0

4

Echo V265000200

NUT, FLANGE M8x1.25

$1.99

$

In Stock, Qty 20+

0

5

Echo P021054230

SPROCKET GUARD ASSY

Note: Includes Items 6-15

$28.99

$

In Stock, only 2 left!

0

6

Echo C300001300

GUARD, SPROCKET

$17.99

$

Usually ships in 2-4 days

0

7

Echo P021048510

TENSIONER KIT, CHAIN

$18.99

$

Usually ships in 2-4 days

0

8

Echo C334000100

CONNECTOR, BRAKE

$17.99

$

Usually ships in 2-4 days

0

9

Echo 90033030120

PIN 3x12

$0.99

$

In Stock, Qty 9

0

10

Echo C328000080

BAND, BRAKE

$7.49

$

In Stock, Qty 8

0

11

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, Qty 10

0

12

Echo V804000000

BOLT, TORX 4x12

$0.99

$

In Stock, Qty 10

0

13

Echo C305000570

PLATE, GUIDE - OUTER

$9.99

$

Usually ships in 2-4 days

0

14

Echo C345000800

COVER, BRAKE

$3.99

$

Usually ships in 2-4 days

0

15

Echo C305000560

PLATE, GUIDE - INNER

$9.99

$

Usually ships in 2-4 days

0
