CS-420 ES - Echo Chainsaw (SN: 20001001 - 20999999) Fuel System, Handles, Throttle Control Parts Diagram

Chainsaw

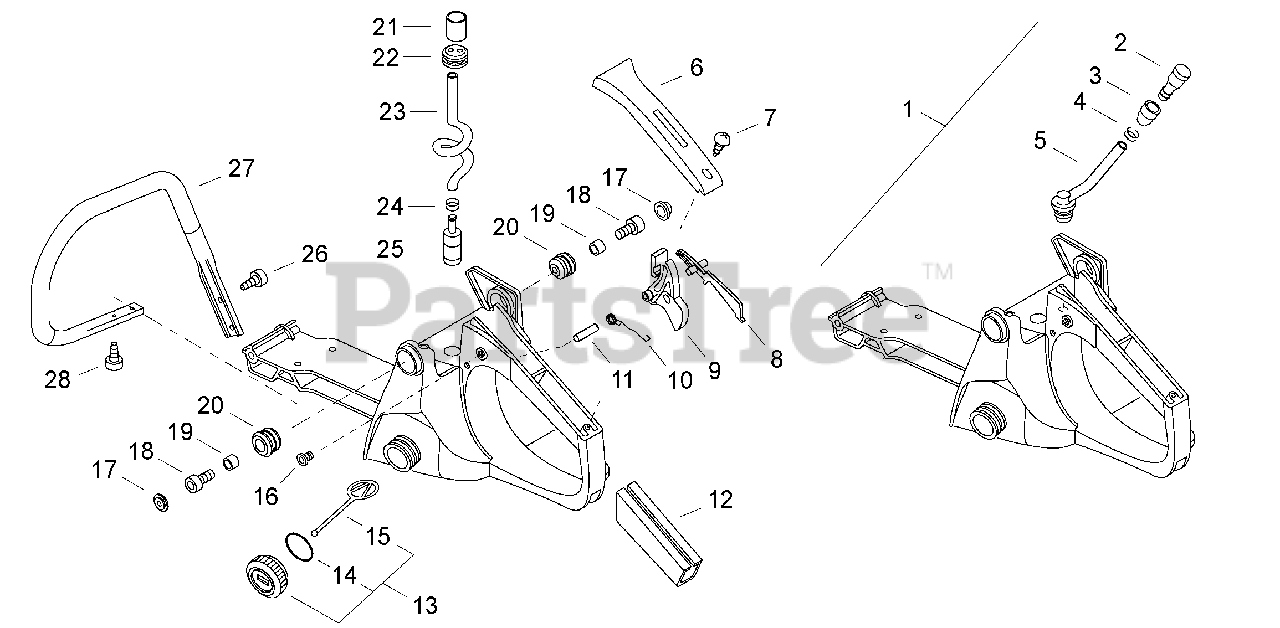

Fuel System, Handles, Throttle Control Parts Diagram

  • Title

1

Echo P021010593

HANDLE ASSY - REAR
(Superseded to P021010594)

$61.99

$

In Stock, only 1 left!

0

2

Echo A356000031

VENT, FUEL TANK

$9.49

$

In Stock, Qty 20+

0

3

Echo 13132840630

COVER, VENT

$7.49

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201239931

PIPE - VENT
(Superseded to 13201239932)

$15.99

$

In Stock, only 3 left!

0

6

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 1 left!

0

7

Echo 90025304014

SCREW - 4X14

$0.99

$

In Stock, Qty 5

0

8

Echo C460000072

LEVER, TRIGGER LOCKOUT

$4.49

$

In Stock, Qty 16

0

9

Echo C450000212

TRIGGER, THROTTLE
(Superseded to C450000213)

$6.49

$

In Stock, Qty 5

0

10

Echo V452000260

SPRING, TRIGGER

$1.99

$

In Stock, Qty 20+

0

11

Echo 90034540030

PIN - SPRING -- 4X30

$1.99

$

In Stock, Qty 11

0

12

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 1 left!

0

13

Echo P021036960

CAP ASSY - BLACK

$12.99

$

In Stock, Qty 5

0

14

Echo 90072000022

O-RING - 22

$2.49

$

In Stock, only 3 left!

0

15

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, only 3 left!

0

16

Echo V162000040

PLUG

$1.99

$

In Stock, only 3 left!

0

17

Echo 10091815130

CAP, CUSHION

$2.49

$

In Stock, Qty 20+

0

18

Echo 90010504020

SCREW - 4X20

$1.49

$

In Stock, only 2 left!

0

19

Echo 10091515131

COLLAR

$3.99

$

In Stock, only 2 left!

0

20

Echo V400000051

CUSHION

$8.49

$

In Stock, only 4 left!

0

21

Echo V475003970

TUBE

$0.99

$

In Stock, Qty 5

0

22

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$2.49

$

In Stock, Qty 20+

0

23

Echo 13200700760

PIPE, FUEL - SPIRAL

$6.99

$

In Stock, Qty 7

0

24

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, only 4 left!

0

25

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

26

Echo 9114505020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 20+

0

27

Echo C400000430

HANDLE - FRONT
(Superseded to C400000431)

$81.99

$

In Stock, Qty 10

0

28

Echo 9114505016

SCREW - 5X16

$1.49

$

In Stock, only 4 left!

0
