CS-420 ES - Echo Chainsaw (SN: 20001001 - 20999999) Intake, Air Filter, On-Off Switch Parts Diagram

Chainsaw

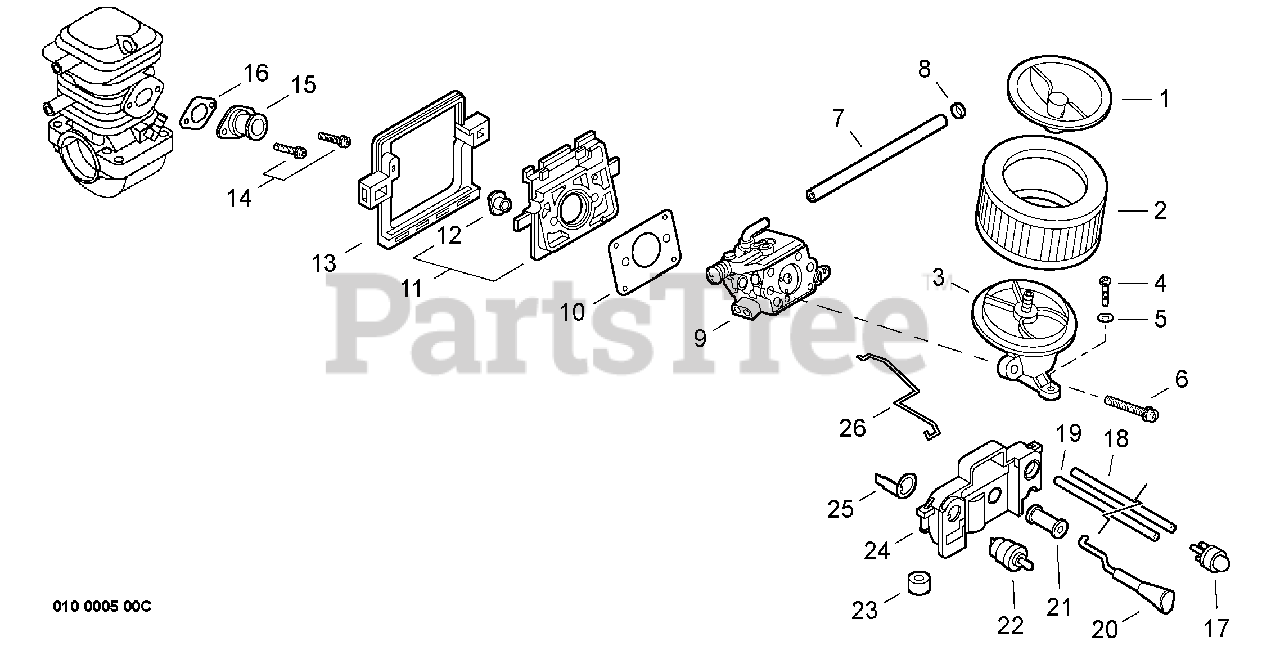

Intake, Air Filter, On-Off Switch Parts Diagram

  • Title

1

Echo 13040538332

COVER, AIR FILTER

$10.99

$

In Stock, only 2 left!

0

2

Echo 13030039730

FILTER, AIR

$23.99

$

In Stock, Qty 20+

0

3

Echo 13030139935

ADAPTOR, INTAKE

$9.49

$

Usually ships in 2-4 days

0

4

Echo 90025305020

SCREW - 5X20 -- TAPPING

$1.49

$

In Stock, Qty 11

0

5

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90023805050

SCREW - 5X50

$0.99

$

In Stock, Qty 9

0

7

Echo V471001600

PIPE - 2.4X6X105 -- BLACK
(Superseded to V471001601)

$2.99

$

In Stock, only 2 left!

0

8

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo A021001580

CARBURETOR WT-906A

$140.99

$

Usually ships in 2-4 days

0

10

Echo V103000280

GASKET, INTAKE

$1.49

$

In Stock, Qty 6

0

11

Echo 13000739932

INSULATOR KIT

$12.99

$

Usually ships in 2-4 days

0

12

Echo 13002033330

T-NUT

$3.49

$

In Stock, Qty 5

0

13

Echo V420001420

CUSHION

$7.49

$

Usually ships in 2-4 days

0

14

Echo 90023805014

SCREW - 5X14

$0.99

$

In Stock, Qty 11

0

15

Echo A202000060

ADAPTOR, INTAKE

$24.99

$

In Stock, only 1 left!

0

16

Echo V103000290

GASKET, INTAKE

$2.99

$

In Stock, Qty 9

0

17

Echo 12318139130

PUMP, PURGE

$7.99

$

In Stock, Qty 20+

0

18

Echo V471001470

PIPE - 2.4X5X200 -- BLACK
(Superseded to V471001471)

$4.49

$

In Stock, only 2 left!

0

19

Echo V471001280

PIPE - 2.4X5X105 -- BLACK
(Superseded to V471001281)

Note: RePower BULK OPTION: N/A

$4.49

$

In Stock, Qty 14

0

20

Echo A241000140

ROD, CHOKE

$8.49

$

In Stock, Qty 12

0

21

Echo 17881014534

GROMMET
(Superseded to 17881014535)

$1.99

$

In Stock, Qty 5

0

22

Echo 16340038330

IGNITION SWITCH ASSY

$17.99

$

In Stock, only 2 left!

0

23

Echo 35113439930

CUSHION

$1.99

$

In Stock, only 4 left!

0

24

Echo A439000145

BRACKET, SWITCH

$22.99

$

In Stock, only 1 left!

0

25

Echo V486000021

TERMINAL - GROUND

$3.49

$

Usually ships in 2-4 days

0

26

Echo C454000100

ROD, THROTTLE

$7.99

$

In Stock, only 2 left!

0
