CS-420 ES - Echo Chainsaw (SN: 37027771 - 37999999) Chain Brake Parts Diagram

Chainsaw

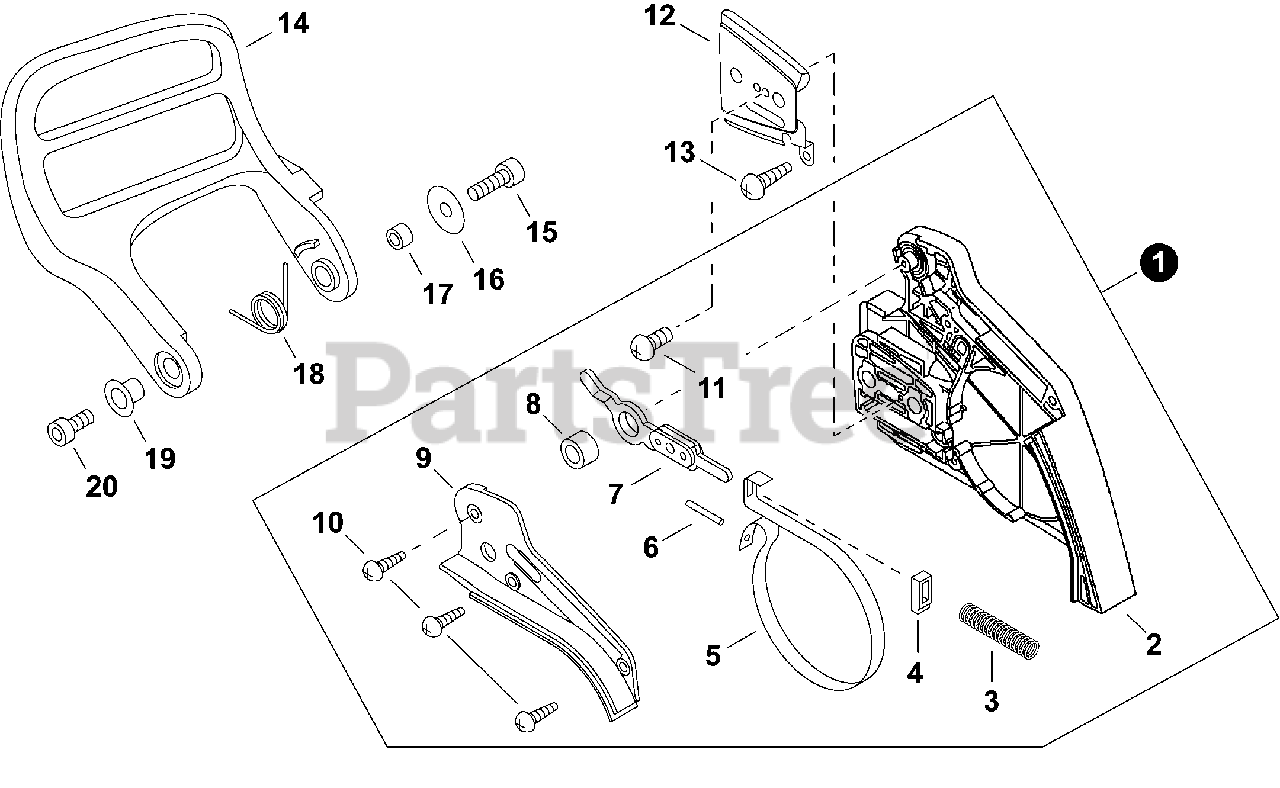

Chain Brake Parts Diagram

  • Title

1

Echo P021017220

BRAKE ASSY, CHAIN

Note: Includes items 2-11

$90.99

$

In Stock, Qty 9

0

2

Echo C300000313

GUARD, SPROCKET
(Superseded to C300000790)

$28.99

$

In Stock, only 3 left!

0

3

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, only 4 left!

0

4

Echo V376000450

GUIDE

$0.99

$

In Stock, Qty 20+

0

5

Echo C328000080

BAND, BRAKE

$8.49

$

In Stock, Qty 9

0

6

Echo 9305030098

PIN, SPRING 3×9.8

$0.99

$

In Stock, Qty 20+

0

7

Echo C334000090

CONNECTOR, BRAKE

$17.99

$

In Stock, only 2 left!

0

8

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

9

Echo C345000211

COVER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

10

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

11

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 14

0

12

Echo C305000012

PLATE, GUIDE - OUTER

$7.99

$

In Stock, Qty 15

0

13

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

14

Echo C320000113

LEVER, BRAKE
(Superseded to C320000480)

$37.99

$

In Stock, Qty 5

0

15

Echo V202000070

BOLT 4

$1.49

$

In Stock, only 4 left!

0

16

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, only 3 left!

0

17

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

18

Echo V452000250

SPRING, TORSION

$1.99

$

In Stock, only 2 left!

0

19

Echo V356000300

COLLAR 10

$2.49

$

In Stock, only 3 left!

0

20

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, only 4 left!

0
