CS-420 ES - Echo Chainsaw (SN: 37027771 - 37999999) Engine Cover, Engine Housing Parts Diagram

Chainsaw

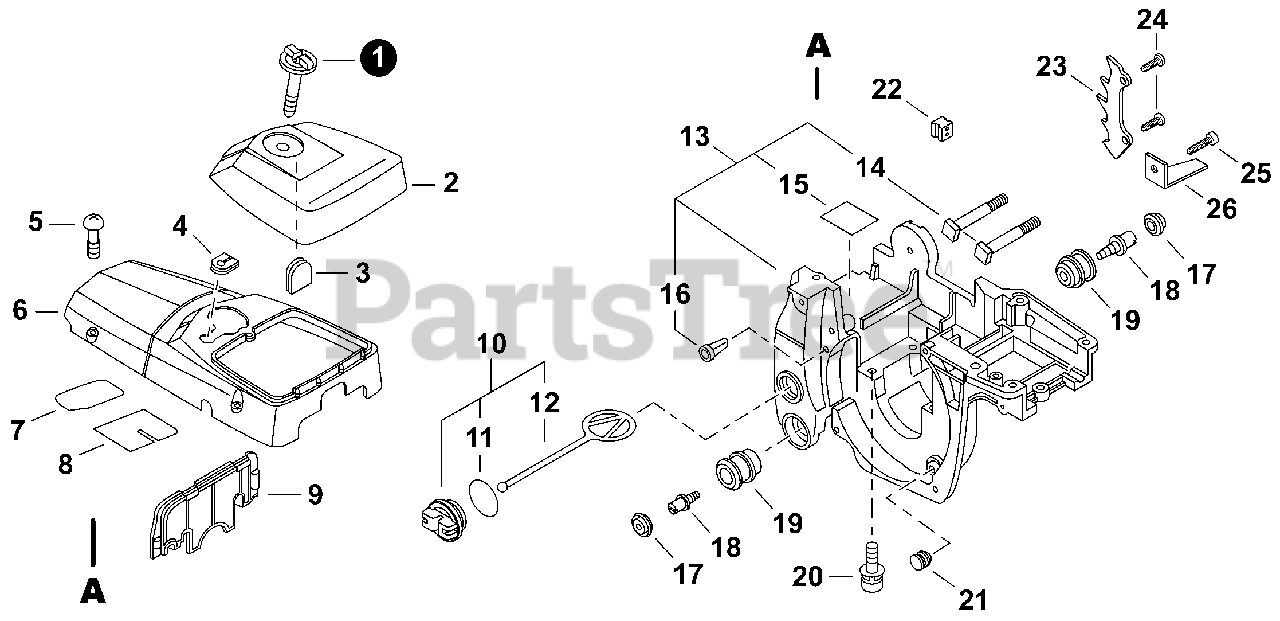

Engine Cover, Engine Housing Parts Diagram

  • Title

1

Echo A235000020

THUMBSCREW

$5.99

$

In Stock, Qty 20+

0

2

Echo A232000024

COVER, AIR FILTER

$10.99

$

In Stock, only 1 left!

0

3

Echo 13033832430

GROMMET

$1.49

$

In Stock, Qty 19

0

4

Echo V135000010

GROMMET

$1.99

$

Usually ships in 2-4 days

0

5

Echo 90023805020

SCREW 5×20

$0.99

$

In Stock, Qty 20+

0

6

Echo A160002290

COVER, ENGINE

$34.99

$

Usually ships in 2-4 days

0

7

Echo V341000060

SHIELD, HEAT

$3.99

$

Usually ships in 2-4 days

0

8

Echo V341000070

SHIELD, HEAT

$4.99

$

Usually ships in 2-4 days

0

9

Echo A209000000

PLATE, INSULATOR

$5.99

$

Usually ships in 2-4 days

0

10

Echo P021007630

CAP ASSY

Note: Includes items 11-12

$10.99

$

In Stock, Qty 20+

0

11

Echo 90072100025

O-RING 25

$2.49

$

In Stock, Qty 20+

0

12

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

13

Echo P021009857

COVER ASSY, ENGINE
(Superseded to P021009858)

Note: Includes items 14-16

$78.99

$

In Stock, only 1 left!

0

14

Echo 43301119831

STUD, GUIDE BAR 8

$2.99

$

In Stock, Qty 18

0

15

Echo V341000050

SHIELD, HEAT

$2.49

$

Usually ships in 2-4 days

0

16

Echo 43611413930

VENT ASSY

$6.49

$

In Stock, Qty 5

0

17

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

18

Echo 10091533930

SCREW 5

$2.49

$

In Stock, Qty 18

0

19

Echo 10091060030

CUSHION 5

$21.99

$

In Stock, Qty 5

0

20

Echo 90016205030

BOLT 5×30

$0.99

$

In Stock, Qty 5

0

21

Echo V420001250

CUSHION

$2.99

$

In Stock, only 1 left!

0

22

Echo 15011404920

GROMMET, LEAD

$1.49

$

Usually ships in 2-4 days

0

23

Echo C304000010

SPIKE, BUMPER

$24.99

$

In Stock, only 1 left!

0

24

Echo 9114505020

SCREW TAPPING 5×20

$0.99

$

In Stock, Qty 20+

0

25

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, Qty 11

0

26

Echo C310000000

CHAIN CATCHER

$1.99

$

In Stock, Qty 7

0
