CS-420 ES - Echo Chainsaw (SN: 37027771 - 37999999) Fuel System, Handles, Throttle Control Parts Diagram

Chainsaw

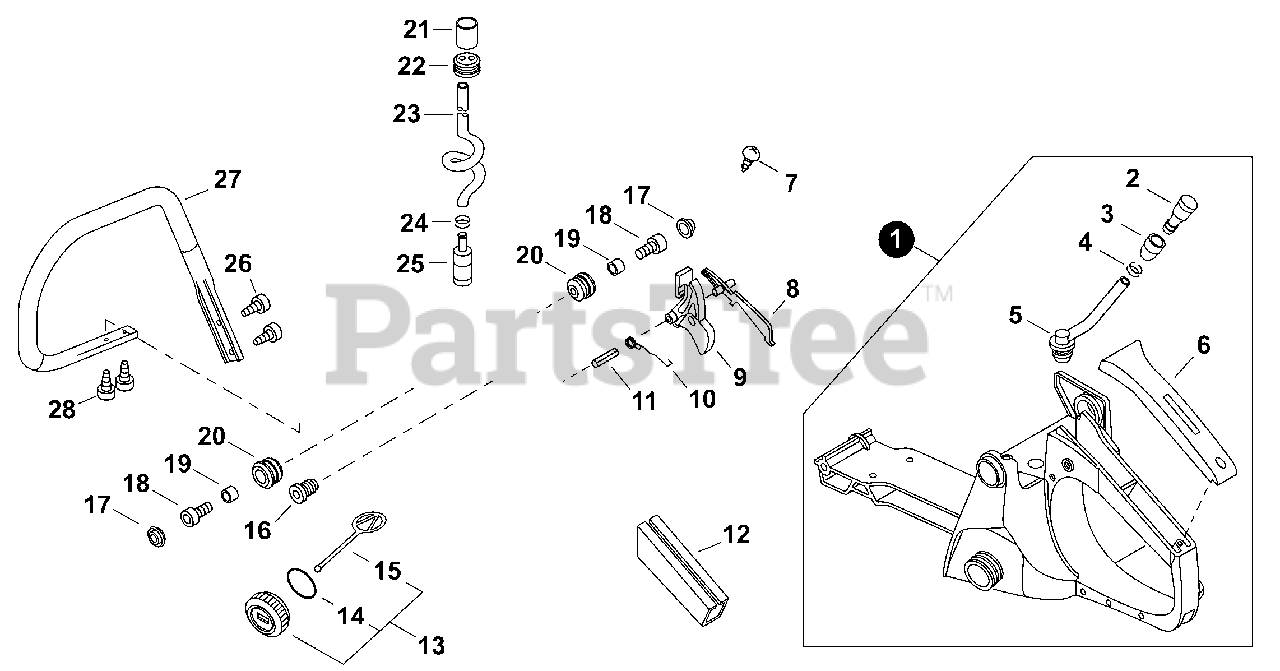

Fuel System, Handles, Throttle Control Parts Diagram

  • Title

1

Echo P021010596

HANDLE ASSY, REAR
(Superseded to P021016451)

Note: Includes items 2-6

$51.99

$

In Stock, only 1 left!

0

2

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 20+

0

3

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP Ø6.5MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13201239931

PIPE, VENT 3×6×65
(Superseded to 13201239932)

$12.99

$

In Stock, only 1 left!

0

6

Echo 35115535431

COVER, HANDLE

$11.99

$

In Stock, Qty 6

0

7

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, Qty 20+

0

8

Echo C460000072

LOCKOUT, THROTTLE

$3.49

$

In Stock, only 4 left!

0

9

Echo C450000213

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 10

0

10

Echo V452000260

SPRING, TORSION

$1.99

$

In Stock, Qty 14

0

11

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, only 4 left!

0

12

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$6.49

$

In Stock, only 1 left!

0

13

Echo P021036960

CAP ASSY, FUEL

Note: Includes items 14-15

$10.99

$

In Stock, Qty 11

0

14

Echo V581000610

O-RING 22

$0.99

$

In Stock, Qty 7

0

15

Echo A365000050

CONNECTOR, CAP L= 60mm

$2.49

$

In Stock, Qty 20+

0

16

Echo V162000040

PLUG

$1.99

$

In Stock, Qty 5

0

17

Echo 10091815130

CAP, CUSHION

$1.99

$

In Stock, Qty 20+

0

18

Echo 90010504020

BOLT, HEX 4×20

$1.49

$

In Stock, only 1 left!

0

19

Echo 10091515131

COLLAR 4.2×7×9.5

$3.49

$

Usually ships in 2-4 days

0

20

Echo V400000051

CUSHION 4

$6.99

$

In Stock, only 3 left!

0

21

Echo V475003970

TUBE 8×9×16

$0.99

$

In Stock, Qty 9

0

22

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

23

Echo 13201000760

PIPE, FUEL 3×5×250
(Superseded to Discontinued)

$

$

Not available

24

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

25

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

26

Echo 9114505020

SCREW TAPPING 5×20

$0.99

$

In Stock, Qty 20+

0

27

Echo C400000431

HANDLE, FRONT - ALUMINUM

$67.99

$

In Stock, Qty 12

0

28

Echo 9114505016

SCREW TAPPING 5×16

$0.99

$

In Stock, Qty 11

0
