CS-420 ES - Echo Chainsaw (SN: 37027771 - 37999999) Intake, Air Filter, On-Off Switch Parts Diagram

Chainsaw

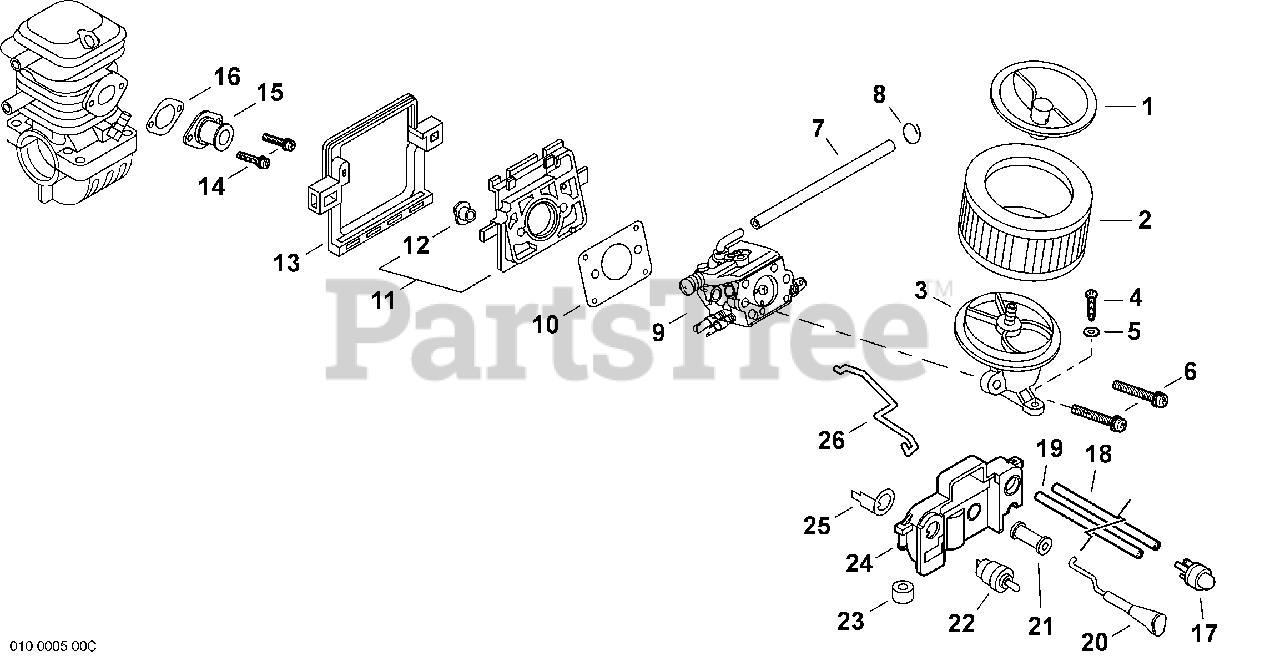

Intake, Air Filter, On-Off Switch Parts Diagram

  • Title

1

Echo P021041330

CAP ASSY, AIR FILTER

$8.99

$

Usually ships in 2-4 days

0

2

Echo 13030039730

FILTER, HEAVY DUTY AIR

$23.99

$

In Stock, Qty 20+

0

3

Echo 13030139935

ADAPTOR, INTAKE

$8.49

$

In Stock, only 1 left!

0

4

Echo 90025305020

SCREW 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

6

Echo 90023805050

SCREW 5×50

$0.99

$

In Stock, Qty 12

0

7

Echo V471001600

PIPE, PULSE 2.4×6×105
(Superseded to V471001601)

$2.49

$

In Stock, only 4 left!

0

8

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

9

Echo A021001900

CARBURETOR - WT-980

$130.99

$

Usually ships in 2-4 days

0

10

Echo V103000280

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

11

Echo 13000739932

INSULATOR SET, INTAKE

Note: Includes item 12

$11.99

$

Usually ships in 2-4 days

0

12

Echo 13002033330

NUT 5

$3.49

$

In Stock, Qty 5

0

13

Echo V420001420

CUSHION

$6.99

$

Usually ships in 2-4 days

0

14

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 15

0

15

Echo A202000060

BELLOWS, INTAKE

$21.99

$

In Stock, only 1 left!

0

16

Echo V103000290

GASKET, INTAKE

$2.49

$

In Stock, Qty 16

0

17

Echo 12318139130

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

18

Echo V471001470

PIPE 2.4×5×200 BLACK
(Superseded to V471001471)

$3.99

$

In Stock, only 2 left!

0

19

Echo V471001280

PIPE 2.4×5×150 BLACK
(Superseded to V471001281)

$3.99

$

In Stock, Qty 6

0

20

Echo A241000140

ROD, CHOKE

$7.49

$

In Stock, Qty 20+

0

21

Echo 17881014534

GROMMET, CHOKE
(Superseded to 17881014535)

$1.49

$

In Stock, only 2 left!

0

22

Echo 16340038330

SWITCH, ON-OFF

$15.99

$

In Stock, Qty 10

0

23

Echo 35113439930

CUSHION

$1.99

$

In Stock, only 4 left!

0

24

Echo A439000145

BRACKET, SWITCH

$19.99

$

In Stock, only 1 left!

0

25

Echo V486000021

TERMINAL, GROUND

$2.99

$

Usually ships in 2-4 days

0

26

Echo C454000100

ROD, THROTTLE

$7.49

$

In Stock, only 3 left!

0
