CS-420 ES - Echo Chainsaw (SN: 37027771 - 37999999) Recoil Starter S/N 37027771-37028400 Parts Diagram

Chainsaw

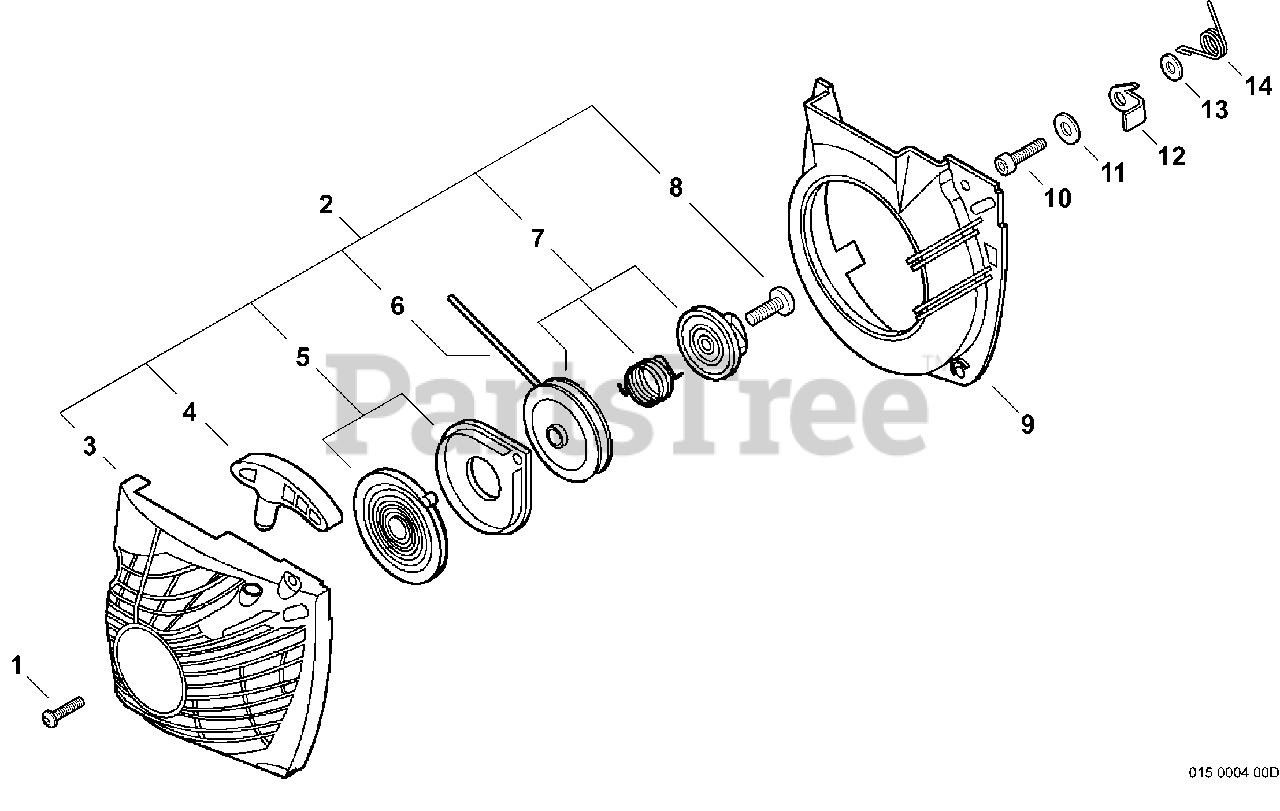

Recoil Starter S/N 37027771-37028400 Parts Diagram

  • Title

1

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

2

Echo A051000981

STARTER ASSY, RECOIL - I-START
(Superseded to A051000982)

Note: Includes items 3-8

$79.99

$

In Stock, Qty 12

0

3

Echo A500000421

CASE, RECOIL STARTER

$44.99

$

Usually ships in 2-4 days

0

4

Echo P022005891

GRIP, STARTER

$7.49

$

In Stock, only 2 left!

0

5

Echo P022010440

SPRING SET, RECOIL

$15.99

$

In Stock, Qty 10

0

6

Echo A509000450

ROPE, STARTER 3.5×900
(Superseded to P022008440)

$5.99

$

In Stock, only 2 left!

0

7

Echo P021039550

REEL KIT, ROPE

$30.99

$

In Stock, only 2 left!

0

8

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 6

0

9

Echo A172002360

COVER, FAN

$12.99

$

Usually ships in 2-4 days

0

10

Echo V203000090

BOLT 5×14

$0.99

$

Usually ships in 2-4 days

0

11

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

12

Echo A514000050

PAWL

$3.49

$

Usually ships in 2-4 days

0

13

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

14

Echo 17723435430

SPRING, TORSION

$2.99

$

In Stock, only 2 left!

0
