CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Chain Brake Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

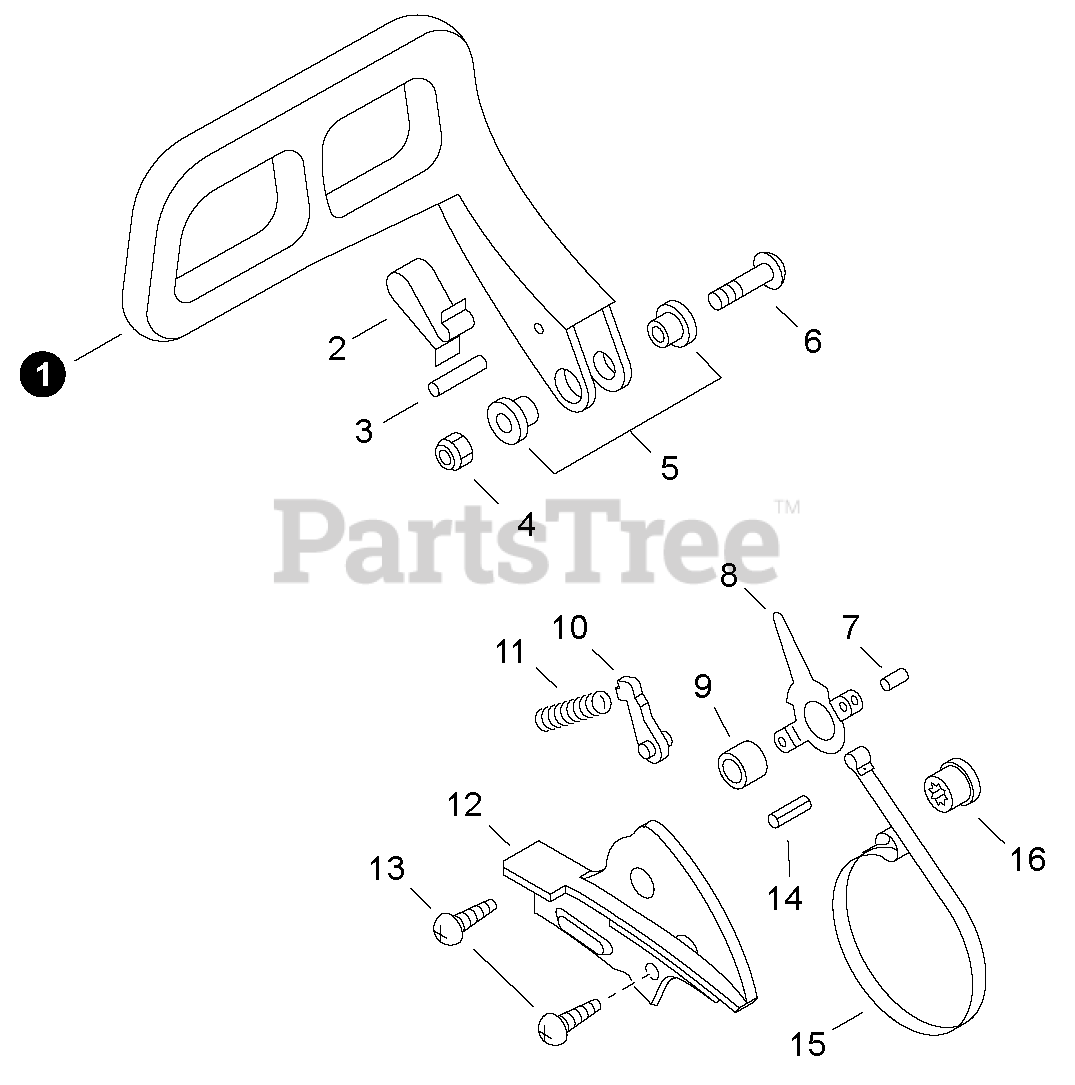

Chain Brake Parts Diagram

  • Title

1

Echo 43310560030

LEVER, BRAKE

$65.99

$

Usually ships in 2-4 days

0

2

Echo 43311438331

SPRING, FLAT

$7.99

$

Usually ships in 2-4 days

0

3

Echo 90033030240

PIN 3×24

$0.99

$

In Stock, Qty 20+

0

4

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

5

Echo 43316739130

COLLAR 5.3×10×13×L5

$3.49

$

In Stock, Qty 20+

0

6

Echo 9131805032

SCREW 5×32

$0.99

$

In Stock, Qty 16

0

7

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

8

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 3 left!

0

9

Echo 43311538330

WASHER 5.2×12×14

$1.49

$

Usually ships in 2-4 days

0

10

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 2 left!

0

11

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

12

Echo 43331038330

COVER, BRAKE

$6.49

$

Usually ships in 2-4 days

0

13

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

14

Echo 90034225012

PIN, SPRING 2.5×12

$1.99

$

Usually ships in 2-4 days

0

15

Echo C328000060

BAND, BRAKE

$8.49

$

In Stock, Qty 6

0

16

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 1 left!

0
