CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Clutch, Sprocket Guard Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

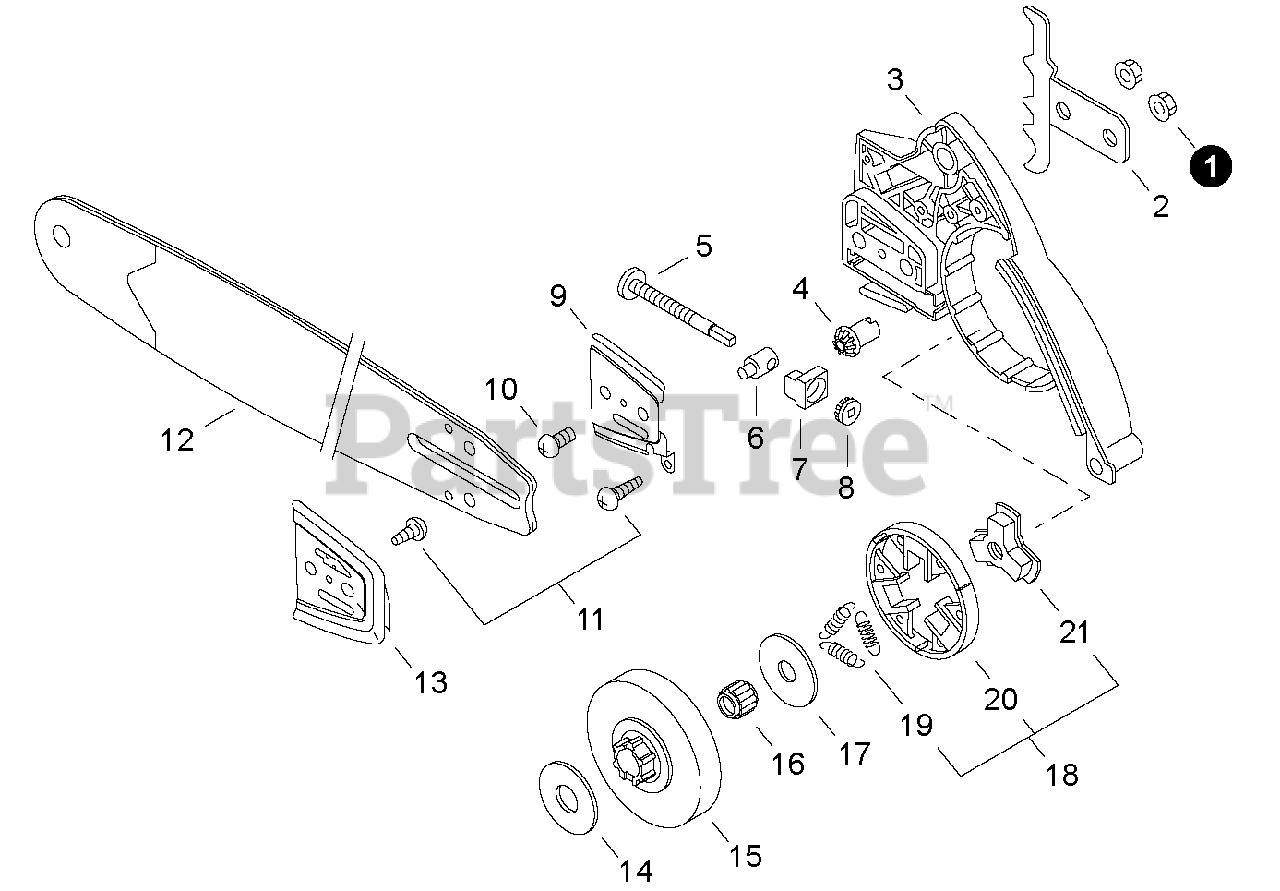

Clutch, Sprocket Guard Parts Diagram

  • Title

1

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

2

Echo C304000020

SPIKE, BUMPER

$41.99

$

Usually ships in 2-4 days

0

3

Echo 43300560938

GUARD, SPROCKET

$

$

Currently unavailable

4

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

5

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 20+

0

6

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

7

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.99

$

In Stock, Qty 20+

0

8

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

9

Echo C305000012

PLATE, GUIDE - OUTER

$7.99

$

In Stock, Qty 20+

0

10

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 13

0

11

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

12

Echo 43052137333

GUIDE BAR, 38RD58-325

$

$

Currently unavailable

13

Echo 43301239930

PLATE, GUIDE - INNER

$9.49

$

In Stock, Qty 20+

0

14

Echo 17501938330

PLATE, CLUTCH

$10.99

$

In Stock, only 2 left!

0

15

Echo A556000171

DRUM, CLUTCH
(Superseded to A556000172)

$63.99

$

In Stock, only 4 left!

0

16

Echo V555000150

BEARING, NEEDLE 10
(Superseded to V555000170)

$15.99

$

In Stock, Qty 20+

0

17

Echo 17501939430

PLATE, CLUTCH

$9.99

$

In Stock, Qty 13

0

18

Echo A056000180

CLUTCH ASSY
(Superseded to A056000181)

$51.99

$

In Stock, Qty 7

0

19

Echo V451000500

SPRING, TENSION

$3.99

$

In Stock, Qty 19

0

20

Echo P021007050

SHOE SET, CLUTCH (3PCS)
(Superseded to P021007051)

$40.99

$

In Stock, only 2 left!

0

21

Echo A552000070

HUB, CLUTCH

$16.99

$

Usually ships in 2-4 days

0
