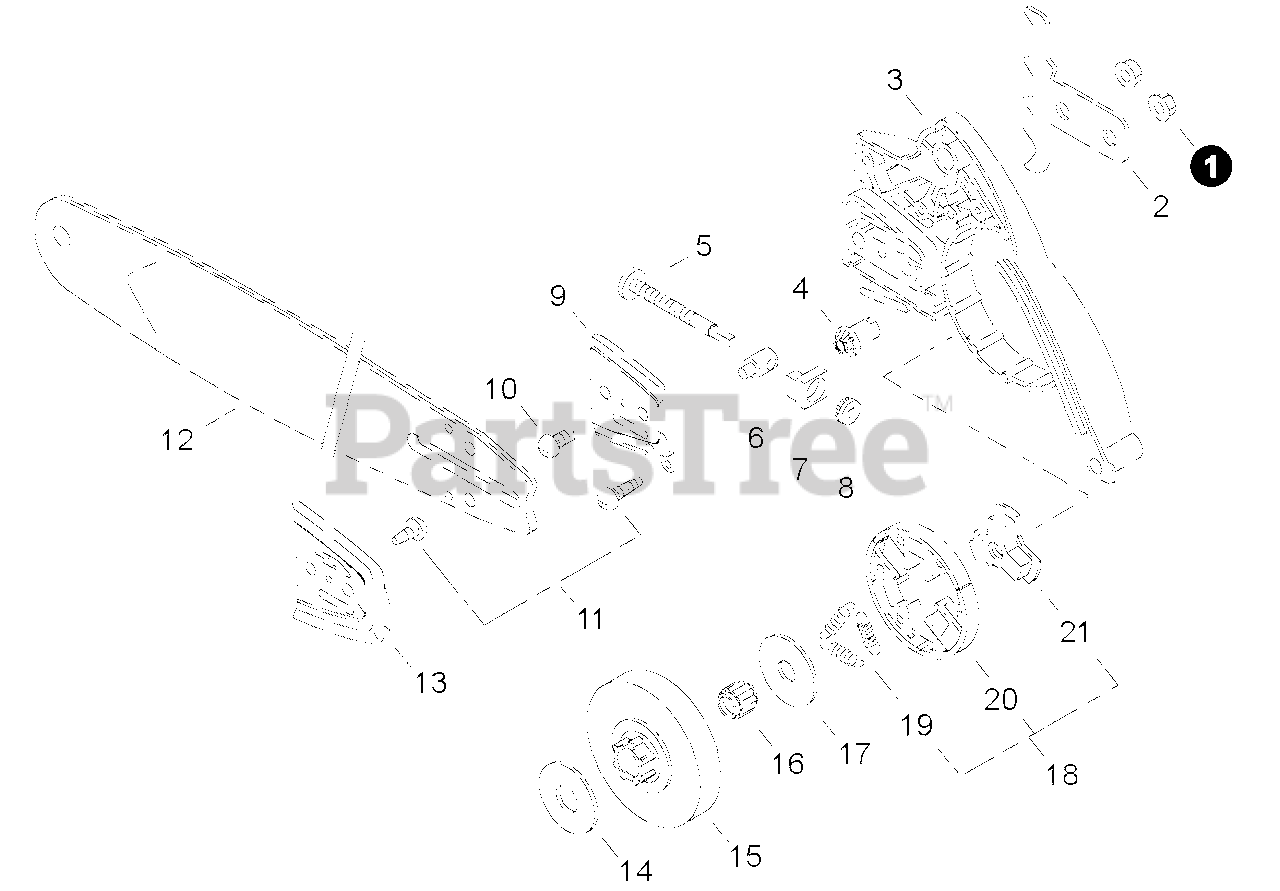

CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Clutch, Sprocket Guard Parts Diagram

Chainsaw

Clutch, Sprocket Guard Parts Diagram

  • Title

1

Echo 43301912330

NUT - 8X1.25 -- FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

2

Echo C304000020

SPIKE

$34.99

$

Usually ships in 2-4 days

0

3

Echo 43300560938

GUARD, SPROCKET

$

$

Currently unavailable

4

Echo V651000001

GEAR - PINION

$7.99

$

In Stock, Qty 20+

0

5

Echo V203000110

SCREW, TENSIONER

$5.99

$

In Stock, Qty 20+

0

6

Echo C309000030

TENSIONER, CHAIN

$4.49

$

In Stock, Qty 20+

0

7

Echo V355000270

COLLAR - 8
(Superseded to V355000800)

$1.49

$

In Stock, Qty 20+

0

8

Echo V651000011

GEAR - BEVEL

$7.99

$

In Stock, Qty 20+

0

9

Echo C305000012

PLATE, GUIDE - OUTER

$6.49

$

In Stock, Qty 20+

0

10

Echo 9132503005

SCREW - 3X5

$0.99

$

In Stock, Qty 20+

0

11

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

12

Echo 43052137333

GUIDE BAR - 38" (97cm)

$

$

Currently unavailable

13

Echo 43301239930

PLATE, GUIDE - INNER

$7.99

$

In Stock, Qty 13

0

14

Echo 17501938330

PLATE, CLUTCH

$9.49

$

In Stock, only 4 left!

0

15

Echo A556000171

DRUM, CLUTCH
(Superseded to A556000172)

$52.99

$

In Stock, Qty 13

0

16

Echo V555000150

BEARING, NEEDLE
(Superseded to V555000170)

$13.99

$

In Stock, Qty 20+

0

17

Echo 17501939430

PLATE, CLUTCH

$8.49

$

In Stock, Qty 20+

0

18

Echo A056000180

CLUTCH ASSY
(Superseded to A056000181)

$47.99

$

In Stock, Qty 20+

0

19

Echo V451000500

SPRING, CLUTCH

$3.49

$

In Stock, Qty 20+

0

20

Echo P021007050

CLUTCH SHOE SET
(Superseded to P021007051)

$34.99

$

In Stock, only 1 left!

0

21

Echo A552000070

HUB, CLUTCH

$13.99

$

Usually ships in 2-4 days

0
