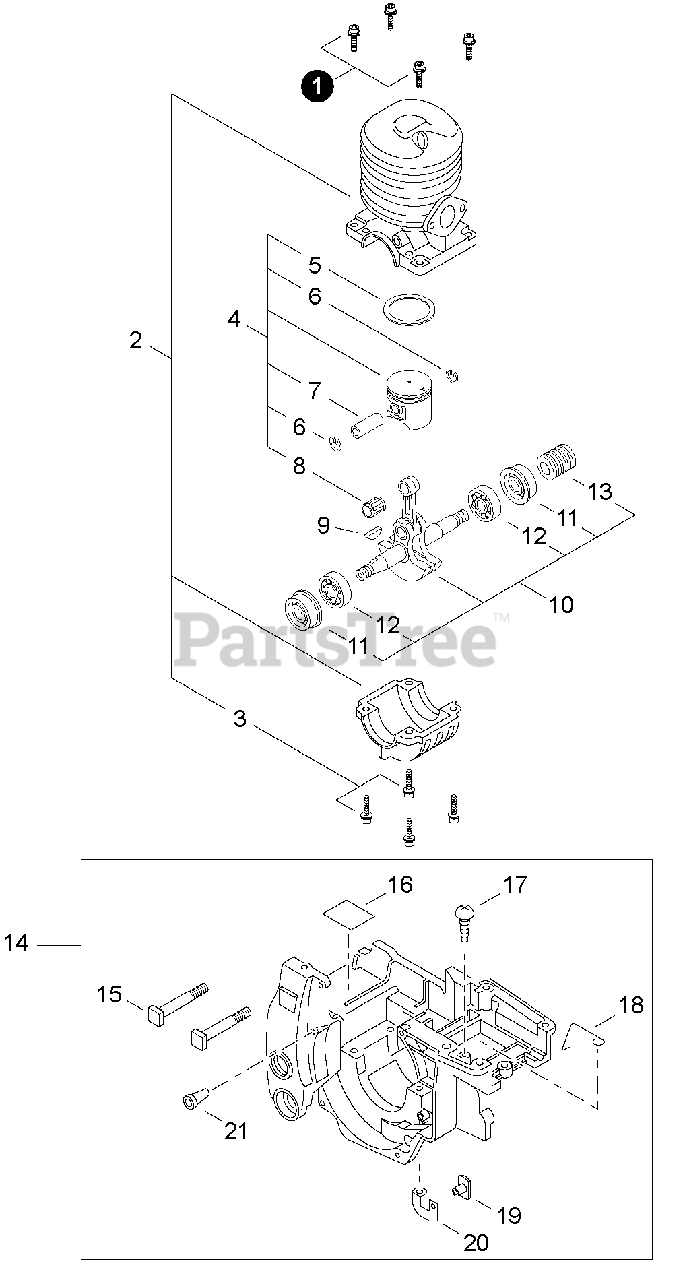

CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Engine, Engine Housing Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

Engine, Engine Housing Parts Diagram

  • Title

1

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

2

Echo P021004131

CRANKCASE KIT

$295.99

$

Usually ships in 2-4 days

0

3

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

4

Echo 10000059531

PISTON KIT

$102.99

$

Usually ships in 2-4 days

0

5

Echo 10001137330

RING, PISTON

$8.99

$

Usually ships in 2-4 days

0

6

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

7

Echo 10001335430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

8

Echo 10001235430

BEARING, NEEDLE 9

$13.99

$

Usually ships in 2-4 days

0

9

Echo 10014239130

KEY, WOODRUFF

$3.49

$

In Stock, Qty 5

0

10

Echo P021007242

CRANKSHAFT ASSY

$236.99

$

Usually ships in 2-4 days

0

11

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 17

0

12

Echo 90088836201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

In Stock, Qty 20+

0

13

Echo V652000021

GEAR, WORM

$17.99

$

In Stock, Qty 7

0

14

Echo P021014303

HOUSING ASSY, ENGINE

$

$

Currently unavailable

15

Echo 43301119831

STUD, GUIDE BAR 8

$3.49

$

In Stock, Qty 20+

0

16

Echo 10152035430

SHIELD, HEAT

$3.99

$

Usually ships in 2-4 days

0

17

Echo 90025304008

SCREW 4×8

$0.99

$

In Stock, only 4 left!

0

18

Echo 60641660632

WIRE
(Superseded to Discontinued)

$

$

Not available

19

Echo 13002060630

NUT, 5

$2.49

$

Usually ships in 2-4 days

0

20

Echo 16201160630

PLATE, GROUND

$2.99

$

Usually ships in 2-4 days

0

21

Echo 436114-13930

VENT ASSY
(Superseded to 43611413930)

$7.49

$

In Stock, Qty 20+

0
