CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Handles, Throttle Control, Fuel System Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

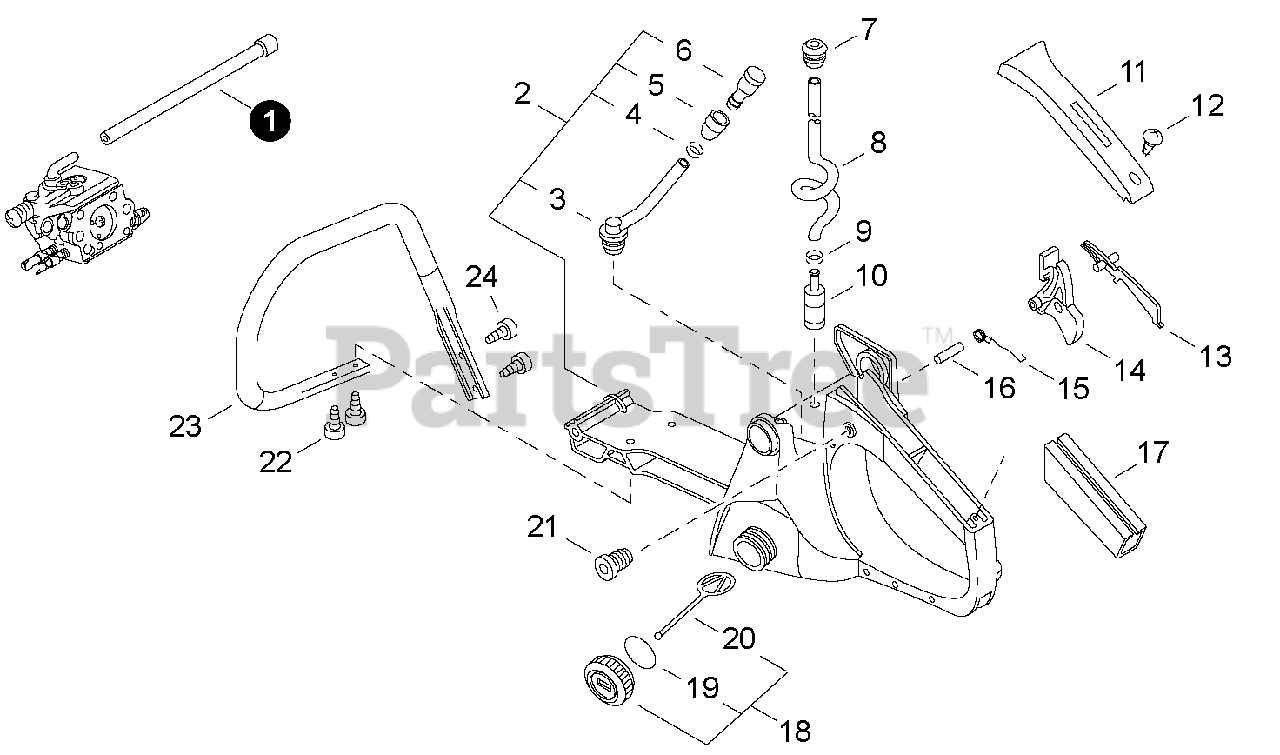

Handles, Throttle Control, Fuel System Parts Diagram

  • Title

1

Echo 13011054430

PIPE, FUEL 3×6×105 BLACK
(Superseded to 13011054431)

$2.99

$

In Stock, Qty 11

0

2

Echo P021013413

HANDLE ASSY, REAR

$

$

Currently unavailable

3

Echo 13201239931

PIPE, VENT 3×6×65
(Superseded to 13201239932)

$15.99

$

In Stock, Qty 5

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 20+

0

6

Echo 13130056431

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

7

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

8

Echo 13201000760

PIPE, FUEL 3×5×250
(Superseded to Discontinued)

$

$

Not available

9

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 20+

0

10

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

11

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

12

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, Qty 20+

0

13

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 4 left!

0

14

Echo C450000000

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

15

Echo 17804335430

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

16

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

17

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

18

Echo P021037920

CAP ASSY, FUEL

$12.99

$

In Stock, Qty 5

0

19

Echo V581000610

O-RING 22

$1.49

$

In Stock, only 4 left!

0

20

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0

21

Echo V162000040

PLUG

$1.99

$

In Stock, only 1 left!

0

22

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, only 3 left!

0

23

Echo C400000191

HANDLE, FRONT

$115.99

$

Usually ships in 2-4 days

0

24

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 6

0
