CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Ignition Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

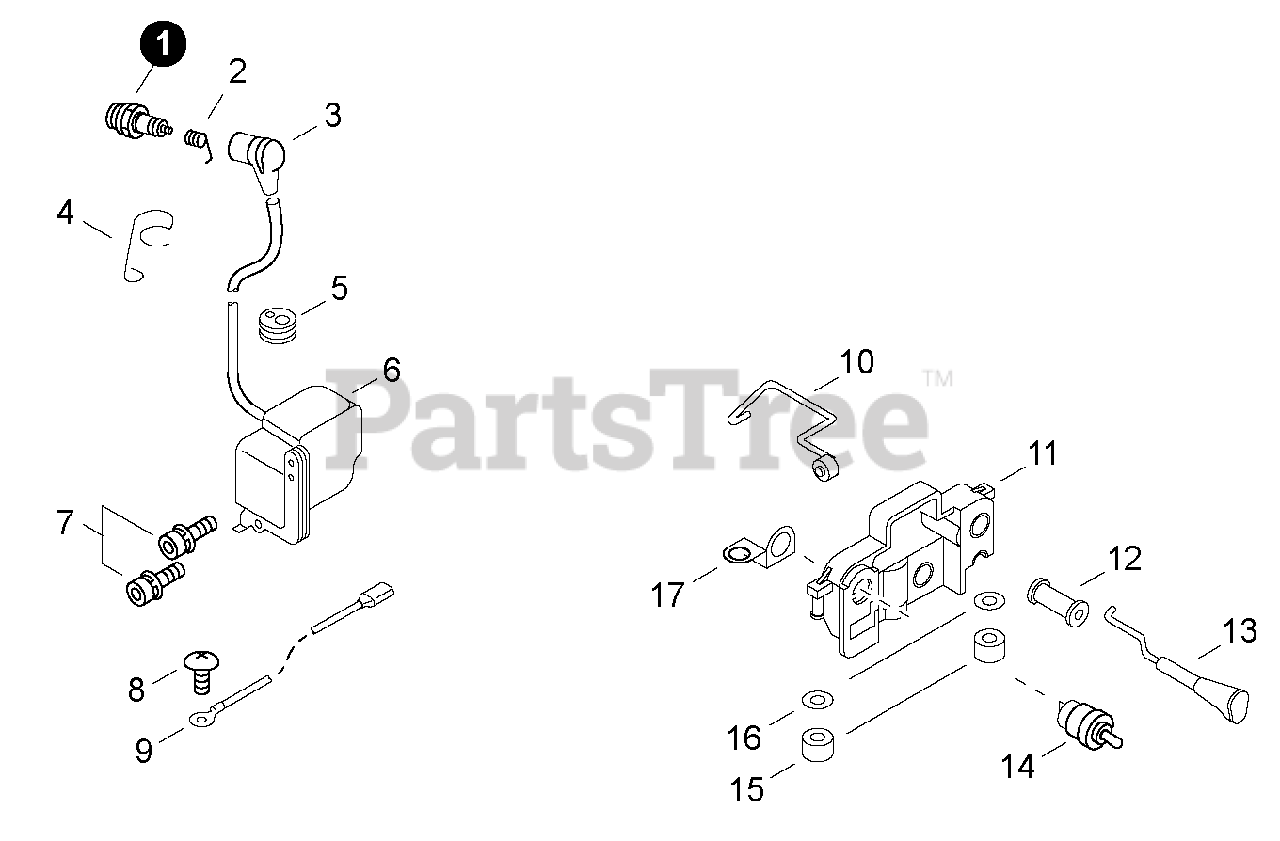

Ignition Parts Diagram

  • Title

1

Echo 15901010230

SPARK PLUG - BPMR7A

$3.99

$

In Stock, Qty 20+

0

2

Echo A426000010

TERMINAL, SPARK PLUG

$1.99

$

In Stock, Qty 20+

0

3

Echo A427000013

CAP, SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

4

Echo 15911839930

GUIDE, CORD

$2.99

$

Usually ships in 2-4 days

0

5

Echo 15111204630

GROMMET

$0.99

$

Usually ships in 2-4 days

0

6

Echo 15662660630

COIL, IGNITION

$209.99

$

Usually ships in 2-4 days

0

7

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

8

Echo 90021604006

SCREW 4×6
(Superseded to Discontinued)

$

$

Not available

9

Echo 15663039930

LEAD - GROUND

$7.99

$

Usually ships in 2-4 days

0

10

Echo C454000012

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 16381059535

BRACKET, SWITCH

$23.99

$

Usually ships in 2-4 days

0

12

Echo 17881014534

GROMMET, CHOKE
(Superseded to 17881014535)

$1.99

$

In Stock, Qty 5

0

13

Echo A241000101

ROD, CHOKE
(Superseded to A241000102)

$6.99

$

Usually ships in 2-4 days

0

14

Echo 16340035430

SWITCH, ON-OFF

$11.99

$

Usually ships in 2-4 days

0

15

Echo 35113439930

CUSHION

$1.99

$

In Stock, only 4 left!

0

16

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

17

Echo 16341359531

TERMINAL, SWITCH

$

$

Currently unavailable
