CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Intake, Air Filter, Engine Cover Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

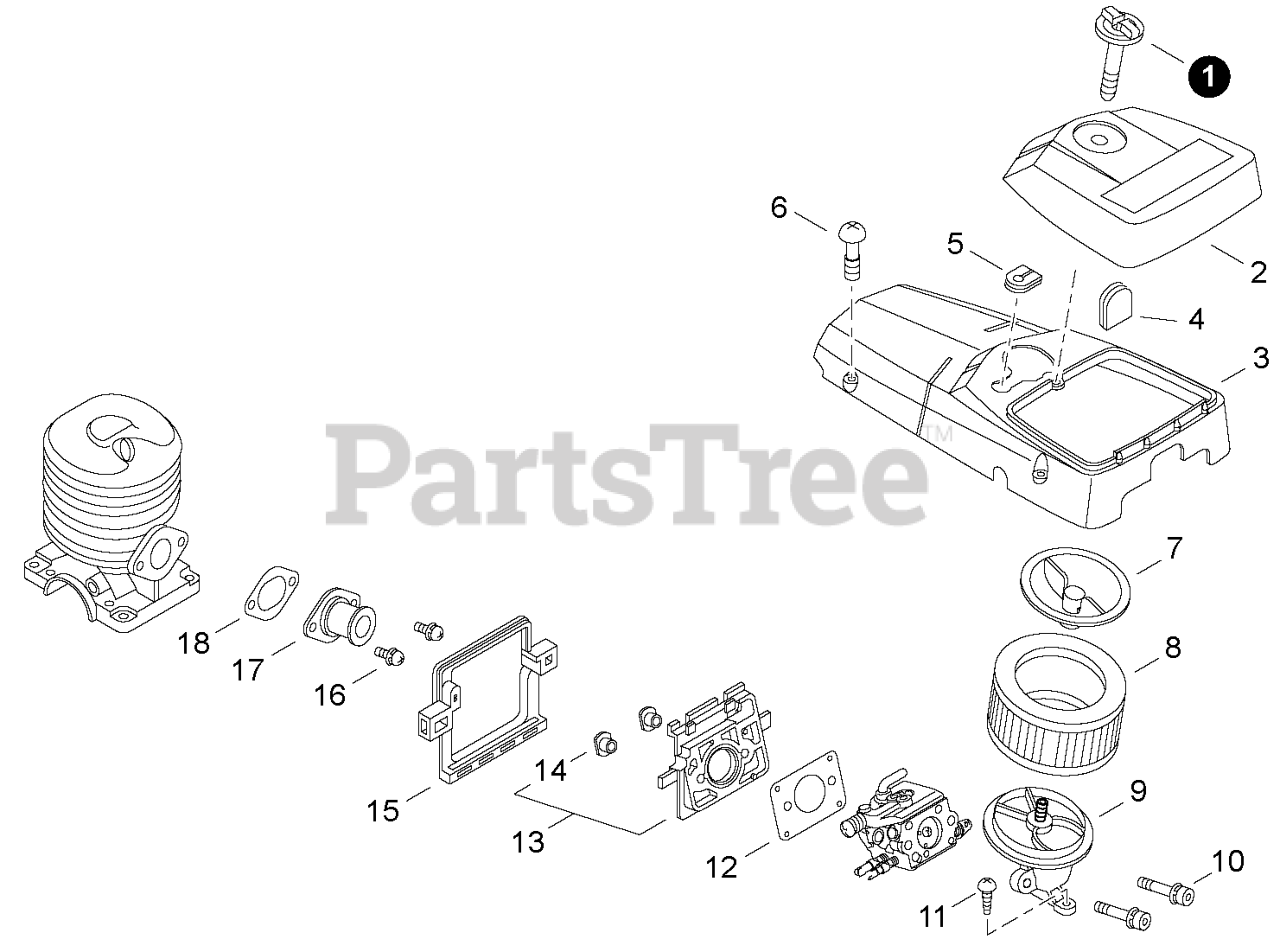

Intake, Air Filter, Engine Cover Parts Diagram

  • Title

1

Echo A235000020

THUMBSCREW

$7.49

$

In Stock, Qty 20+

0

2

Echo A232000024

COVER, AIR FILTER

$12.99

$

Usually ships in 2-4 days

0

3

Echo A160000015

COVER, ENGINE

$45.99

$

Usually ships in 2-4 days

0

4

Echo 13033832430

GROMMET

$1.99

$

In Stock, only 3 left!

0

5

Echo V135000010

GROMMET

$1.99

$

Usually ships in 2-4 days

0

6

Echo 16389038330

BOLT 5

$1.99

$

In Stock, only 4 left!

0

7

Echo 13040538332

CAP, AIR FILTER

$11.99

$

In Stock, only 2 left!

0

8

Echo 13030039730

FILTER, AIR - HEAVY DUTY

$25.99

$

In Stock, Qty 20+

0

9

Echo 13030139935

ADAPTOR, INTAKE

$9.99

$

In Stock, only 1 left!

0

10

Echo 90016205050

BOLT 5x50

$2.49

$

In Stock, Qty 7

0

11

Echo 90025305016

SCREW 5x16

$0.99

$

In Stock, Qty 20+

0

12

Echo 13001038330

GASKET, INTAKE

$1.99

$

In Stock, Qty 15

0

13

Echo 13000739932

INSULATOR KIT, INTAKE

$14.99

$

Usually ships in 2-4 days

0

14

Echo 13002033330

NUT

$3.99

$

In Stock, only 4 left!

0

15

Echo 13036639930

CUSHION
(Superseded to V420001420)

$7.99

$

Usually ships in 2-4 days

0

16

Echo 90023805012

SCREW 5x12

$0.99

$

In Stock, Qty 5

0

17

Echo 13051039932

ADAPTOR, INTAKE

$28.99

$

In Stock, only 1 left!

0

18

Echo 13001639930

GASKET, INTAKE

$3.49

$

In Stock, Qty 13

0
