CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Oil System Parts Diagram

Chainsaw

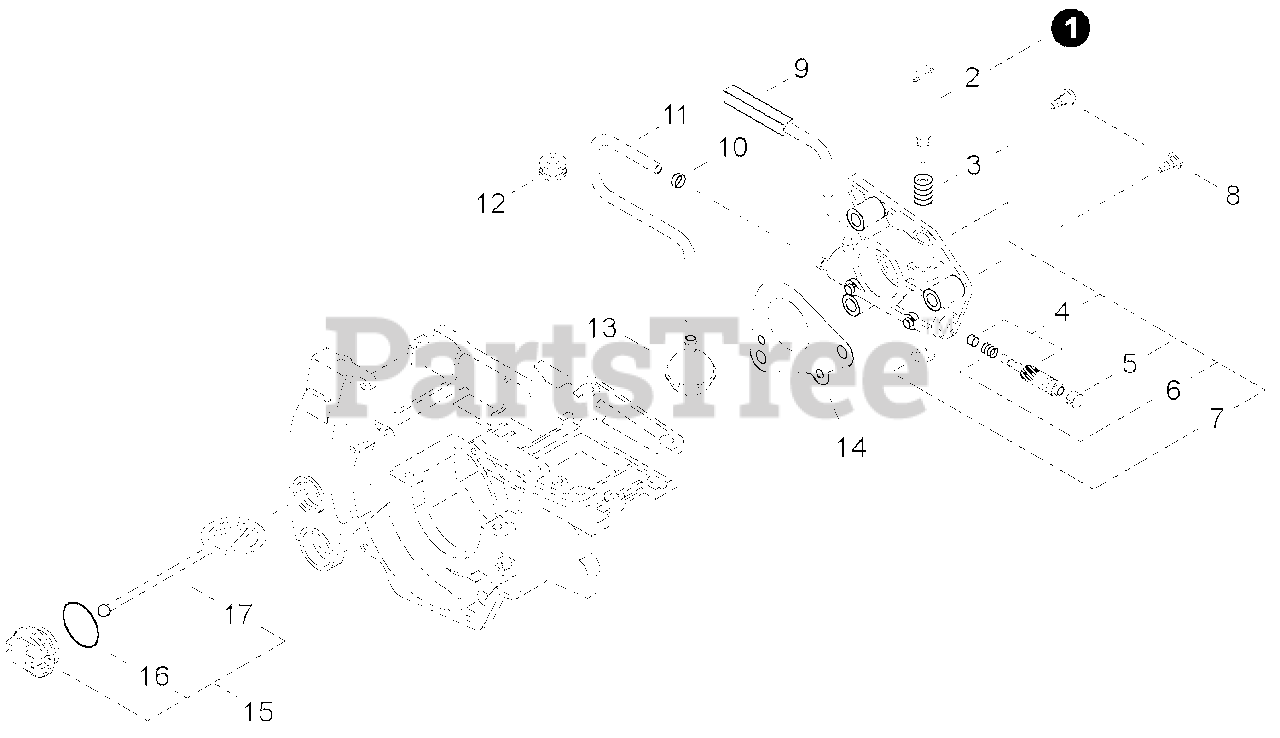

Oil System Parts Diagram

  • Title

1

Echo C022000090

AUTO-OILER ASSY

$51.99

$

In Stock, Qty 11

0

2

Echo P022024570

SCREW, ADJUST

$14.99

$

Usually ships in 2-4 days

0

3

Echo P022010670

SPRING

$1.99

$

In Stock, Qty 5

0

4

Echo P022010650

PLUNGER

$11.99

$

Usually ships in 2-4 days

0

5

Echo P022010640

CAP, OIL PUMP

$0.99

$

In Stock, Qty 9

0

6

Echo P022010660

SPRING

$1.99

$

In Stock, only 2 left!

0

7

Echo 12532715130

RING, RETAINING

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90022304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

9

Echo 43721039931

TUBE, OIL OUTLET
(Superseded to 43721039932)

$11.99

$

In Stock, only 2 left!

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo 43721035430

PIPE - OIL
(Superseded to 43721035431)

$5.49

$

In Stock, only 3 left!

0

12

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

13

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 4 left!

0

14

Echo 17531038330

SEAL, DUST

$1.49

$

In Stock, Qty 6

0

15

Echo 43600139232

CAP ASSY - ORANGE
(Superseded to P021044580)

$2.99

$

In Stock, Qty 20+

0

16

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0

17

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0
