CS-4200 ES - Echo Chainsaw (SN: 36001001 - 36999999) Oil System Parts Diagram

Echo CS-4200ES Chain Saw: - Engine: 39.6 cc 4-stroke , spark plug BPMR-7A. The chain-lubrication tank on both the CS-3700ES and CS-4200ES chain saws has a fixed capacity of 240 mL.

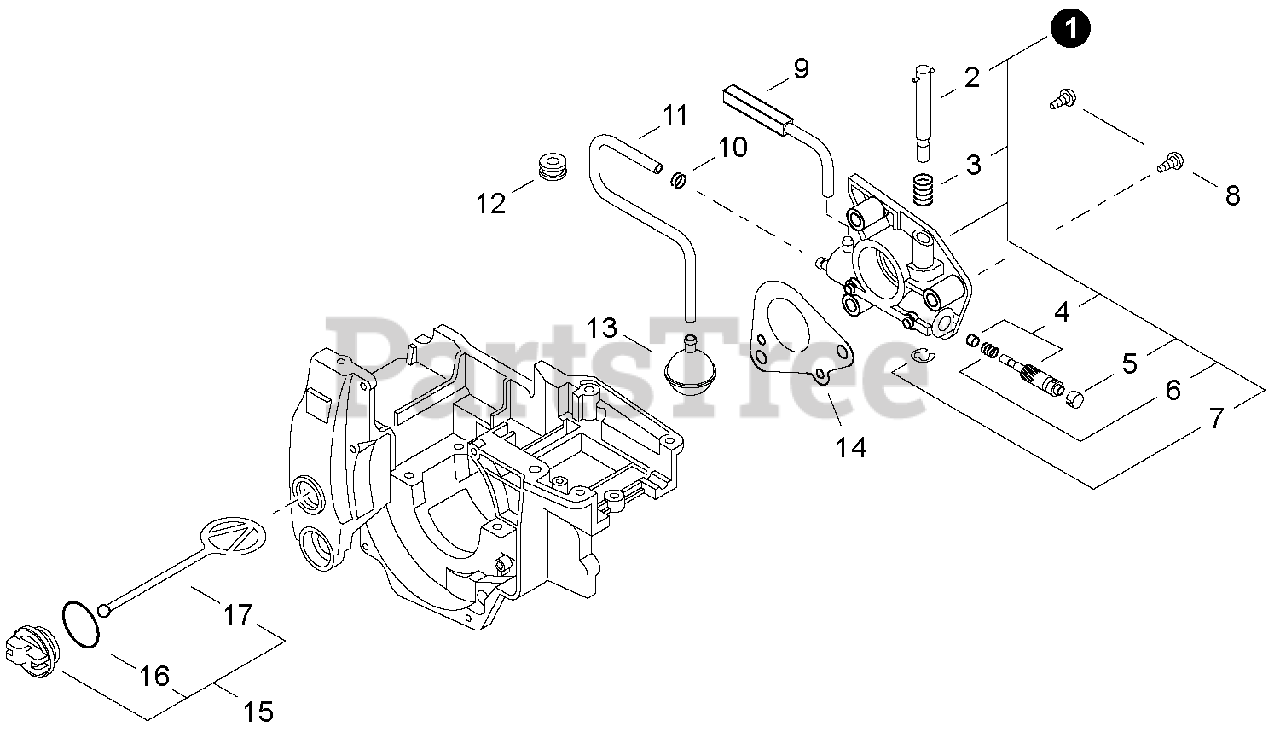

Oil System Parts Diagram

  • Title

1

Echo C022000090

AUTO-OILER ASSY

$61.99

$

In Stock, only 3 left!

0

2

Echo P022024570

SCREW, ADJUSTER

$

$

Not available

3

Echo P022010670

SPRING

$2.49

$

In Stock, only 4 left!

0

4

Echo P022010650

PLUNGER ASSY

$14.99

$

In Stock, only 1 left!

0

5

Echo P022010640

CAP, PLUNGER

$0.99

$

In Stock, Qty 8

0

6

Echo P022010660

SPRING

$2.49

$

In Stock, only 2 left!

0

7

Echo 125327-15130

E-RING

$0.99

$

In Stock, only 3 left!

0

8

Echo 90022304016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

9

Echo 43721039931

PIPE, OIL OUTLET
(Superseded to 43721039932)

$13.99

$

In Stock, Qty 13

0

10

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

11

Echo 43721035430

PIPE, OIL
(Superseded to 43721035431)

$6.49

$

In Stock, Qty 8

0

12

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

13

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, Qty 17

0

14

Echo 17531038330

PLATE, SEAL

$1.49

$

In Stock, Qty 5

0

15

Echo 43600139232

CAP ASSY, OIL
(Superseded to P021044580)

$3.49

$

In Stock, Qty 20+

0

16

Echo 90072100025

O-RING 25

$2.99

$

In Stock, Qty 20+

0

17

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 20+

0
