CS 4210 (24A-424G766) - Troy-Bilt Chipper Shredder (2005) Tongue Parts Diagram

Chipper Shredder

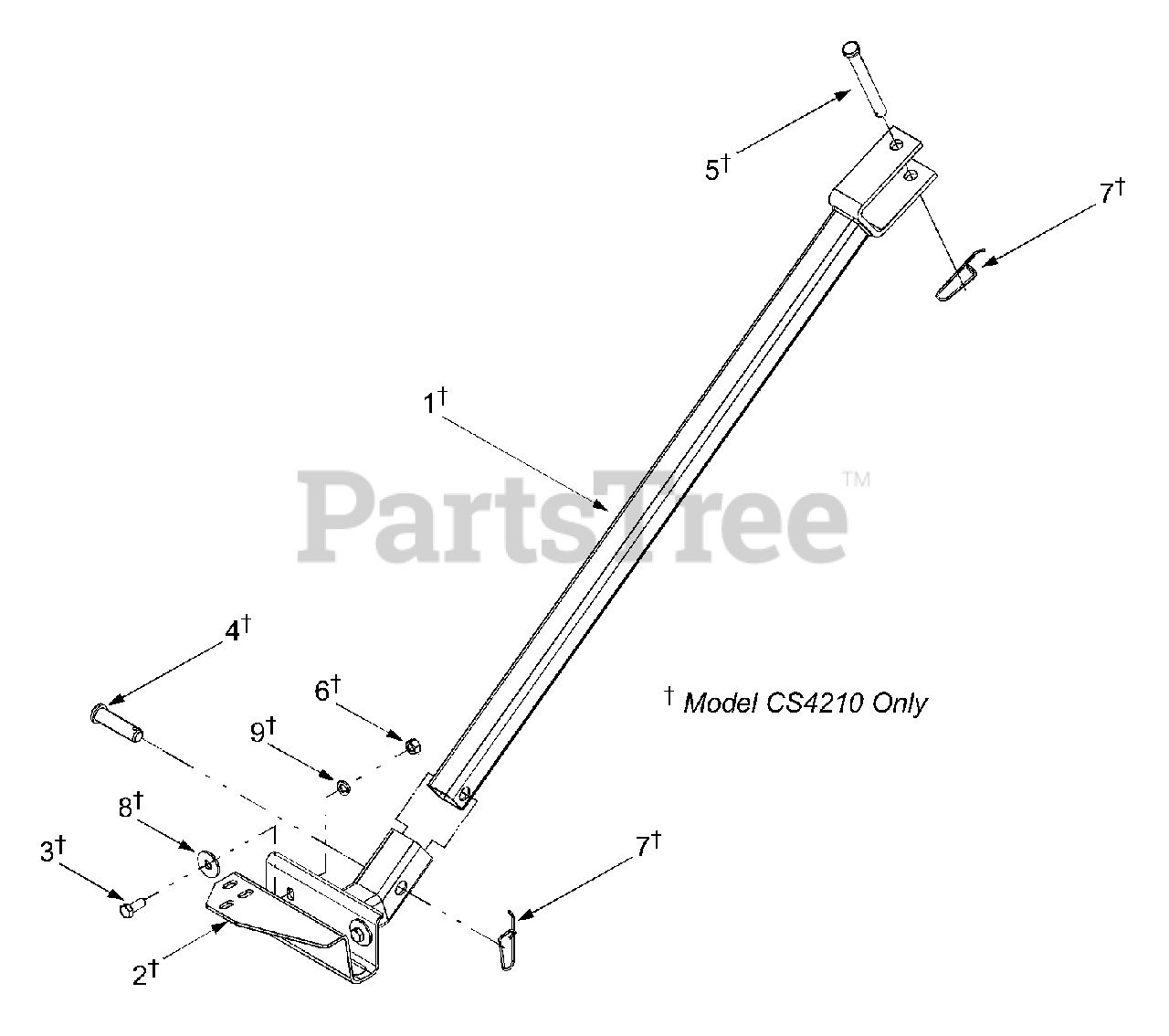

Tongue Parts Diagram

  • Title

1

Troy-Bilt 681-0133

Tongue Hitch Mount
(Superseded to 981-0133B)

Note: Model CS4210 Only

Variations

Troy-Bilt 681-0133-4021

TOW BAR (CUB YELLOW 2) - CUB YELLOW 2 (4021)

$74.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0133-0637

TONGUE TOW BAR BLACK - POWDER BLACK (0637)

$74.99

$

In Stock, only 1 left!

0

$67.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 681-0134A

Base Hitch Mount
(Superseded to 681-0134B-0637)

Note: Model CS4210 Only

Variations

Troy-Bilt 681-0134A-0637

BAR-TOW BASE - POWDER BLACK (0637)

$77.99

$

In Stock, only 1 left!

0

$77.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-3001

Hex Cap Screw, 3/8-16 x.88

Note: Model CS4210 Only

$6.99

$

In Stock, Qty 11

0

4

Troy-Bilt 711-0299

Clevis Pin,.625 x 2.4

Note: Model CS4210 Only

$34.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 711-0835

Clevis Pin,.50 x 4.62
(Superseded to 911-0835)

Note: Model CS4210 Only

$11.99

$

In Stock, Qty 6

0

6

Troy-Bilt 712-0798

Hex Nut, 3/8

Note: Model CS4210 Only

$3.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 732-0194

Spring Pin

Note: Model CS4210 Only

$4.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 736-0133

Flat Washer,.411 x 1.25 x 1.0

Note: Model CS4210 Only

$4.99

$

In Stock, Qty 7

0

9

Troy-Bilt 736-0169

Lock Washer, 3/8

Note: Model CS4210 Only

$3.49

$

In Stock, Qty 20+

0
