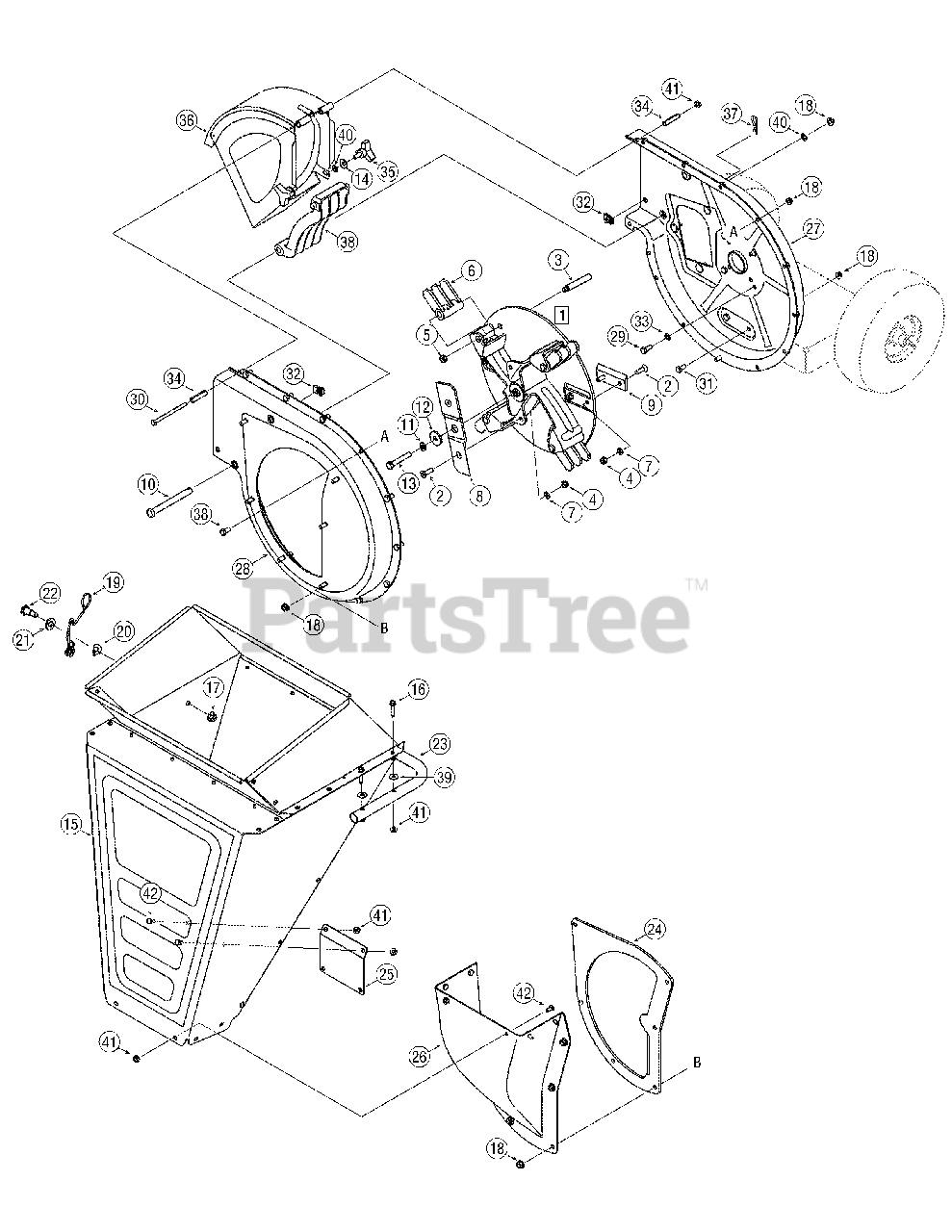

CS 4310 (24A-424G766) - Troy-Bilt Chipper Shredder (2007) Impeller Assembly Parts Diagram

Chipper Shredder

Impeller Assembly Parts Diagram

  • Title

1

Troy-Bilt 681-04094

Impeller Assembly Complete
(Superseded to 981-04094)

$650.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-1054

Machine Screw, 5/16-24 x 1.0

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 738-04286

Shoulder Pin, .5 x 2.625
(Superseded to 738-04286A)

$5.49

$

In Stock, Qty 7

0

4

Troy-Bilt 712-0411

Hex Lock Nut, 5/16-24

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-0266A

Nut, Jam Lock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 719-04308

Flail Blade

$19.99

$

In Stock, Qty 9

0

7

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 742-04050

Shredder Blade
(Superseded to 742-04050-0637)

$37.99

$

In Stock, Qty 15

0

9

Troy-Bilt 742-0544A

Chipper Blade
(Superseded to 942-0544B)

$95.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 711-0835

Clevis Pin,.50 x 4.62
(Superseded to 911-0835)

$13.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 736-0217

Lock Washer, 3/8

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 736-0247

Flat Washer,.406 x 1.25

$10.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-1254

Hex Cap Screw, 3/8-24 x 2.2

$7.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 736-0242

Bell Washer.340 ID x.872 OD

$4.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 681-04011

Shredder Hopper Assembly
(Superseded to 981-04011)

Variations

Troy-Bilt 681-04011-0638

HOPPER ASM-SHREDDE - MTD/TROY-BILT RED (0638)

$392.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04011-0721

HOPPER ASSEMBLY - SEARS RED (0721)

$356.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04011-4021

HOPPER ASM-SHREDDE - CUB YELLOW 2 (4021)

$392.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04011-4044

HOPPER ASM-SHREDDE - CRAFTSMAN RED (4044)

$356.99

$

Usually ships in 3-6 days

0

$356.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-0809

Hex Cap Screw, 1/4-20 x 1.250

$7.49

$

In Stock, Qty 7

0

17

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

Note: Model Series 420

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-04167

Torsion Spring
(Superseded to 932-04167)

Note: Model Series 420

$11.99

$

In Stock, Qty 10

0

20

Troy-Bilt 736-0182

Spring Washer,.50 x 1.0 x.022

Note: Model Series 420

$4.99

$

In Stock, Qty 15

0

21

Troy-Bilt 736-0326

Flat Washer,.50 x 1.0 x.0125

Note: Model Series 420

$4.99

$

In Stock, Qty 12

0

22

Troy-Bilt 738-0430

Shoulder Screw, 3/8-16,.50 x.685

Note: Model Series 420

$12.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 749-04103

Hopper Handle
(Superseded to 749-04103-0637)

Variations

Troy-Bilt 749-04103-0637

HANDLE-HOPPER - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 781-04007

Shredder Plate

Variations

Troy-Bilt 781-04007-0638

Shredder Plate - MTD/TROY-BILT RED (0638)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04007-4021

PLATE-SHREDDER - CUB YELLOW 2 (4021)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04007-0721

PLATE-SHREDDER - SEARS RED (0721)

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04007-4044

PLATE-SHREDDER - CRAFTSMAN RED (4044)

$52.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 781-04027

Hopper Support Bracket

Variations

Troy-Bilt 781-04027-0721

BRACKET-HOPPER SUPT - SEARS RED (0721)

$22.99

$

In Stock, only 1 left!

0

Troy-Bilt 781-04027-4021

BRACKET-HOPPER SUPPORT - CUB YELLOW 2 (4021)

$23.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04027-4044

BRACKET-HOPPER SUPT - CRAFTSMAN RED (4044)

$22.99

$

In Stock, only 1 left!

0

Troy-Bilt 781-04027-0638

BRACKET-HOPPER SUP - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 781-04033

Inlet Guide

Variations

Troy-Bilt 781-04033-0638

GUIDE-INLET - MTD/TROY-BILT RED (0638)

$99.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04033-0721

GUIDE-INLET - SEARS RED (0721)

$106.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04033-4021

GUIDE-INLET - CUB YELLOW 2 (4021)

$99.99

$

Usually ships in 3-6 days

0

Troy-Bilt 781-04033-4044

GUIDE-INLET - CRAFTSMAN RED (4044)

$106.99

$

Usually ships in 3-6 days

0

$86.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 681-0117

Inner Flail Housing Assembly

Variations

Troy-Bilt 681-0117-0637

Flail Housing Assembly - POWDER BLACK (0637)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0483

Flail Housing Assembly - CHARCOAL GRAY (0483)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0638

Flail Housing Assembly - MTD/TROY-BILT RED (0638)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0691

Flail Housing Assembly - BLACK JACK (0691)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0721

Flail Housing Assembly - SEARS RED (0721)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-4044

Flail Housing Assembly - CRAFTSMAN RED (4044)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0689

Flail Housing Assembly - POLO GREEN (0689)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-0709

Flail Housing Assembly - MASTERCRAFT GREEN (0709)

$196.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0117-4021

Flail Housing Assembly - CUB YELLOW 2 (4021)

$196.99

$

Usually ships in 3-6 days

0

$159.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 681-04002

Outer Flail Housing Assembly

Variations

Troy-Bilt 681-04002-0638

HOUSING ASM-FLAIL - MTD/TROY-BILT RED (0638)

$149.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04002-0721

HOUSING ASM-FLAIL - SEARS RED (0721)

$149.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04002-4044

HOUSING ASM-FLAIL - CRAFTSMAN RED (4044)

$149.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-04002-4021

HOUSING ASM-FLAIL - CUB YELLOW 2 (4021)

$149.99

$

Usually ships in 3-6 days

0

$149.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 710-0157

Hex Cap Screw, 5/16-24 x.75

$4.49

$

In Stock, only 3 left!

0

30

Troy-Bilt 710-0825

Hex Cap Screw, 1/4-20 x 3.75

$5.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 710-3025

Hex Cap Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 7

0

32

Troy-Bilt 726-0211

U-Nut, 5/16-18

$4.99

$

In Stock, only 2 left!

0

33

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 750-0793

Hinge Spacer,.265 x.380 x 1.66
(Superseded to 950-0793)

$3.99

$

In Stock, Qty 10

0

35

Troy-Bilt 681-0048

Knob Ass’y. (Incl. ref.# 12 & 61)
(Superseded to 720-0170)

$11.99

$

In Stock, Qty 15

0

35

Troy-Bilt 720-0170

Knob Only, 5/16-18

$11.99

$

In Stock, Qty 15

0

36

Troy-Bilt 681-0094

Chute Deflector Assembly
(Superseded to 681-0094A)

Variations

Troy-Bilt 681-0094-0483

CHUTE-DISCHARGE - CHARCOAL GRAY (0483)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0498

CHUTE-DISCHARGE - OLD CUB YELLOW (0498)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0637

CHUTE-DISCHARGE - POWDER BLACK (0637)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0638

Discharge Chute - MTD/TROY-BILT RED (0638)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0691

CHUTE-DISCHARGE - BLACK JACK (0691)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0721

Discharge Chute - SEARS RED (0721)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-4021

CHUTE-DISCHARGE - CUB YELLOW 2 (4021)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-4044

Discharge Chute - CRAFTSMAN RED (4044)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0665

CHUTE ASSY-DISCHARGE - YARDMAN GREEN (0665)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0689

CHUTE-DISCHARGE - POLO GREEN (0689)

$137.99

$

Usually ships in 3-6 days

0

Troy-Bilt 681-0094-0709

CHUTE-DISCHARGE - MASTERCRAFT GREEN (0709)

$137.99

$

Usually ships in 3-6 days

0

$143.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 714-0149B

Internal Cotter Pin

$4.99

$

In Stock, Qty 5

0

38

Troy-Bilt 719-04070

Shredder Screen

$51.99

$

In Stock, only 2 left!

0

39

Troy-Bilt 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 726-0201

Speed Nut,.3125ID

$7.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 712-04064

Nut, Flange, Lock, 5/16-18

$4.49

$

In Stock, Qty 20+

0

42

Troy-Bilt 710-0599

TT Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+
