CS-440 - Echo Chainsaw (SN: 08001001 - 08999999) Chain Brake Parts Diagram

Chainsaw

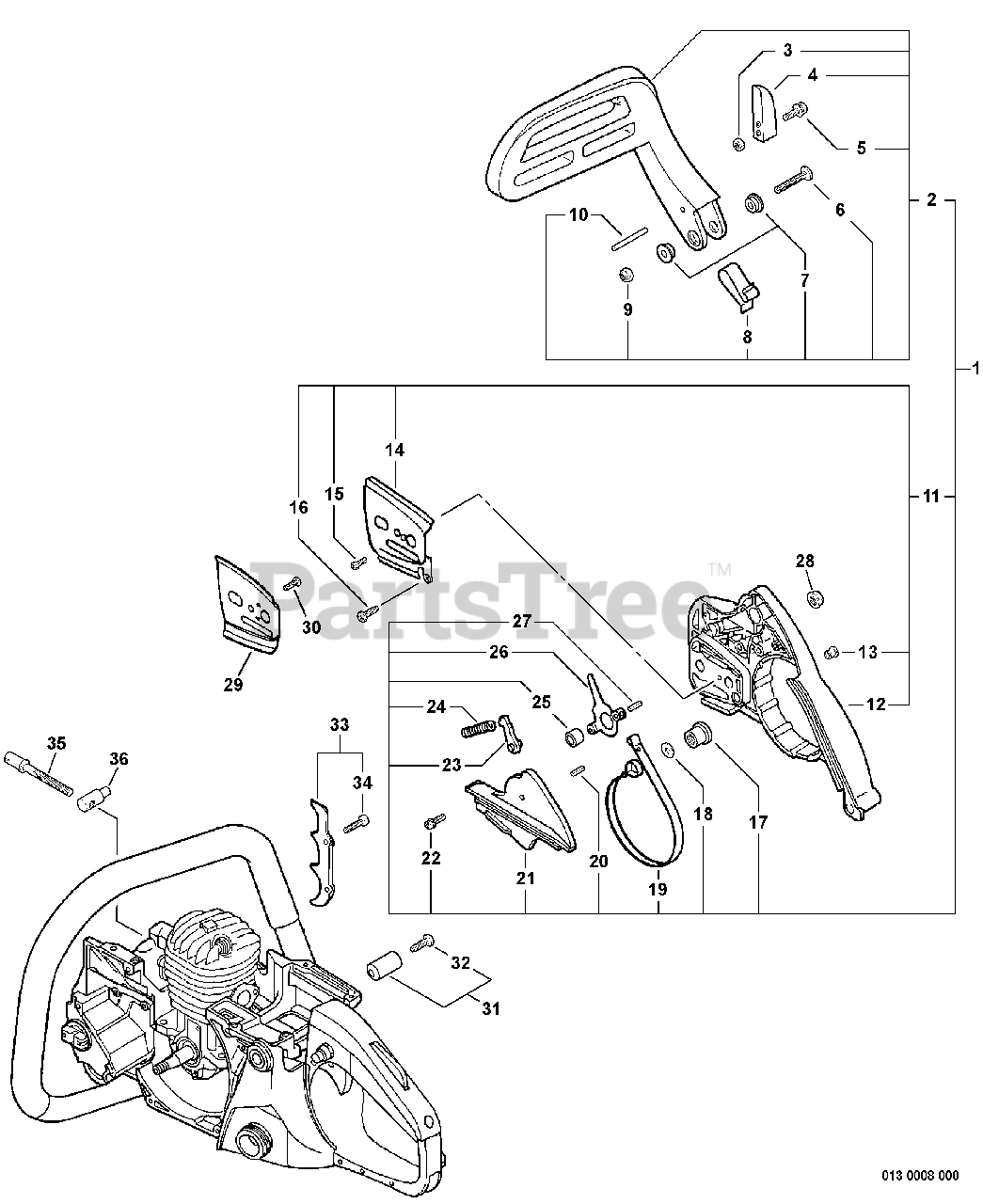

Chain Brake Parts Diagram

  • Title

1

Echo 43310039037

CHAIN BRAKE ASSY
(Superseded to 43310039038)

Note: INCLUDES ITEMS 2-27

$70.99

$

In Stock, Qty 13

0

2

Echo 43320139031

BRAKE LEVER ASSY
(Superseded to 43320139032)

Note: INCLUDES ITEMS 3-10

$33.99

$

In Stock, only 1 left!

0

3

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

4

Echo 43317139330

WEIGHT, BRAKE

$8.49

$

Usually ships in 2-4 days

0

5

Echo 90023804018

SCREW - 4X18

$0.99

$

In Stock, Qty 13

0

6

Echo 9131805032

SCREW - 5X32

$0.99

$

In Stock, Qty 20+

0

7

Echo 43316739130

SPACER

$2.99

$

In Stock, Qty 20+

0

8

Echo 43311438331

SPRING

$6.99

$

Usually ships in 2-4 days

0

9

Echo 90056250005

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 90033030240

PIN - 3X24

$0.99

$

In Stock, Qty 20+

0

11

Echo P021001280

SPROCKET GUARD ASSY
(Superseded to P021001281)

Note: Includes ITEMS 12-16

$24.99

$

In Stock, Qty 16

0

12

Echo 43300539333

GUARD, SPROCKET
(Superseded to 43300539334)

$24.99

$

In Stock, Qty 16

0

13

Echo V162000020

PLUG

$2.99

$

Usually ships in 2-4 days

0

14

Echo C305000001

PLATE, GUIDE - OUTER

$6.99

$

In Stock, Qty 17

0

15

Echo 90022003006

SCREW - 3X6

$0.99

$

In Stock, Qty 20+

0

16

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

17

Echo 43314235430

ADJUSTER, BRAKE BAND

$3.49

$

In Stock, only 4 left!

0

18

Echo V304000090

WASHER - 8

$1.99

$

Usually ships in 2-4 days

0

19

Echo C328000060

BAND, BRAKE

$7.49

$

In Stock, Qty 12

0

20

Echo 90034225012

PIN - SPRING -- 2.5X12

$1.49

$

In Stock, only 3 left!

0

21

Echo 43331039330

COVER, BRAKE

$5.99

$

In Stock, Qty 5

0

22

Echo 90025304010

SCREW - 4X10

$0.99

$

In Stock, Qty 20+

0

23

Echo 43320935430

STOPPER, BRAKE

$4.99

$

Usually ships in 2-4 days

0

24

Echo 43312235430

SPRING, BRAKE

$3.49

$

In Stock, only 1 left!

0

25

Echo 43311538330

WASHER - 5

$1.49

$

Usually ships in 2-4 days

0

26

Echo 43320835431

LEVER, BRAKE

$19.99

$

Usually ships in 2-4 days

0

27

Echo 90033040088

PIN - SPRING -- 4X8

$1.49

$

In Stock, only 3 left!

0

28

Echo 43301912330

NUT - FLANGE
(Superseded to V265000200)

$1.99

$

In Stock, Qty 20+

0

29

Echo 43301335431

PLATE, GUIDE - INNER
(Superseded to 43301335432)

$5.99

$

In Stock, Qty 13

0

30

Echo 90022004006

SCREW - 4X6

$0.99

$

In Stock, Qty 12

0

31

Echo 43300019831

CHAIN CATCHER KIT
(Superseded to 43300019832)

Note: INCLUDES ITEM 32

$2.99

$

In Stock, Qty 12

0

32

Echo 90022005018

SCREW - 5X18

$0.99

$

In Stock, Qty 5

0

33

Echo 88020038330

SPIKE KIT

$12.99

$

Usually ships in 2-4 days

0

34

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

35

Echo 43301638330

SCREW, TENSIONER

$4.49

$

In Stock, only 2 left!

0

36

Echo 43301419830

TENSIONER, CHAIN

$4.99

$

In Stock, Qty 12

0
