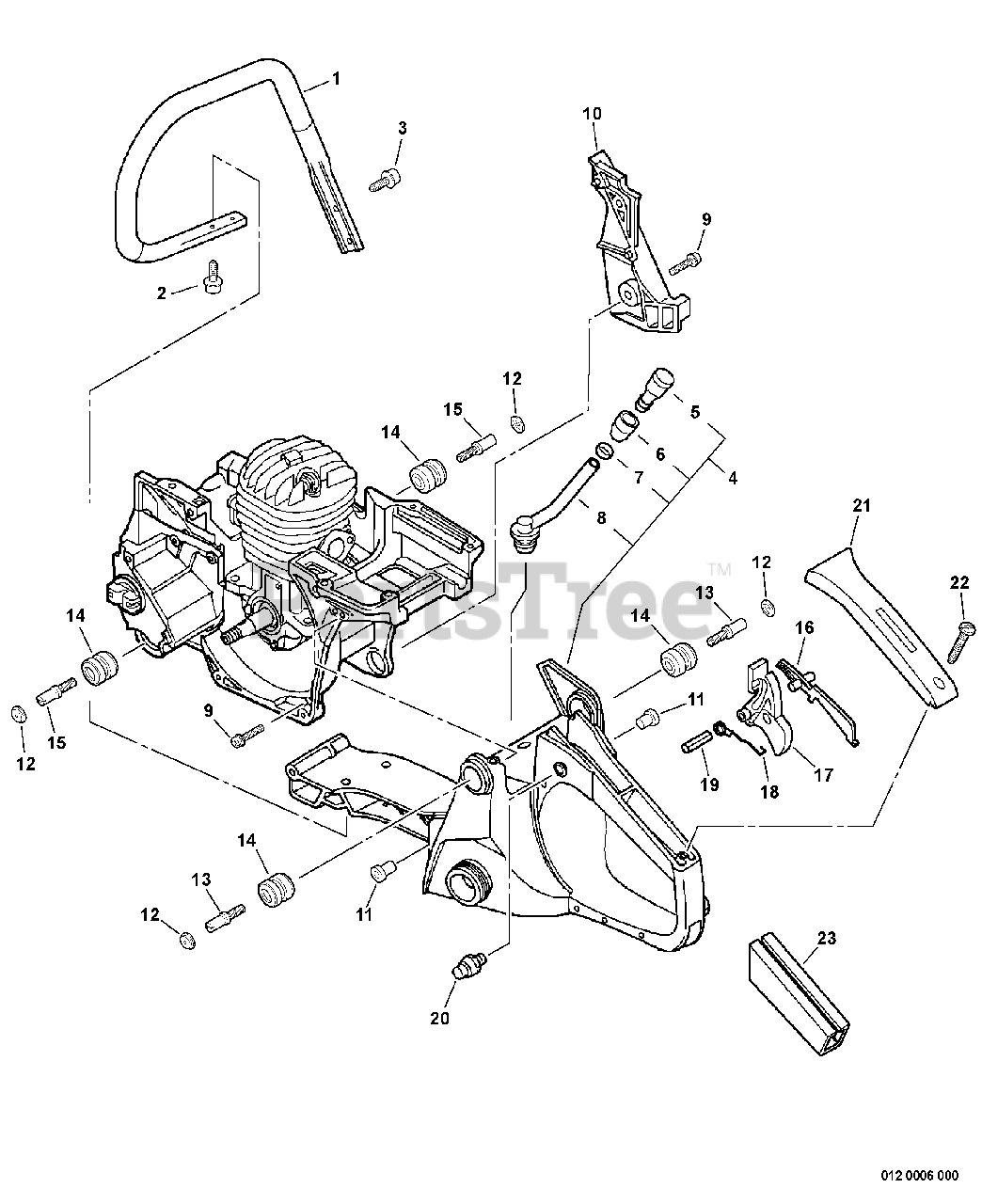

CS-440 - Echo Chainsaw (SN: 08001001 - 08999999) Handles, Throttle Control Parts Diagram

Chainsaw

Handles, Throttle Control Parts Diagram

  • Title

1

Echo 35160638330

HANDLE, FRONT
(Superseded to 35160638331)

$

$

Not available

2

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, Qty 5

0

3

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

4

Echo P021006600

REAR HANDLE ASSY
(Superseded to P021006601)

Note: INCLUDES ITEMS 5-8

$139.99

$

Usually ships in 2-4 days

0

5

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

6

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo 13201239330

PIPE, VENT - GROMMET
(Superseded to 13201239331)

$15.99

$

In Stock, only 3 left!

0

9

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

10

Echo 43304539332

COVER

$3.99

$

In Stock, only 2 left!

0

11

Echo 10091038330

CUSHION 5

$13.99

$

Usually ships in 2-4 days

0

12

Echo 10091838330

CAP, CUSHION

$2.99

$

Usually ships in 2-4 days

0

13

Echo 10091532530

SCREW 5

$3.99

$

In Stock, only 2 left!

0

14

Echo 10092138330

CUSHION 5

$24.99

$

Usually ships in 2-4 days

0

15

Echo 10091533930

SCREW 5

$2.99

$

In Stock, only 2 left!

0

16

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 1 left!

0

17

Echo C450000000

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

18

Echo 17804335430

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

19

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

20

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 3 left!

0

21

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

22

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

23

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0
