CS-440 - Echo Chainsaw (SN: 10001001 - 10999999) Engine, Short Block -- SB1082, Engine Cover Parts Diagram

Chainsaw

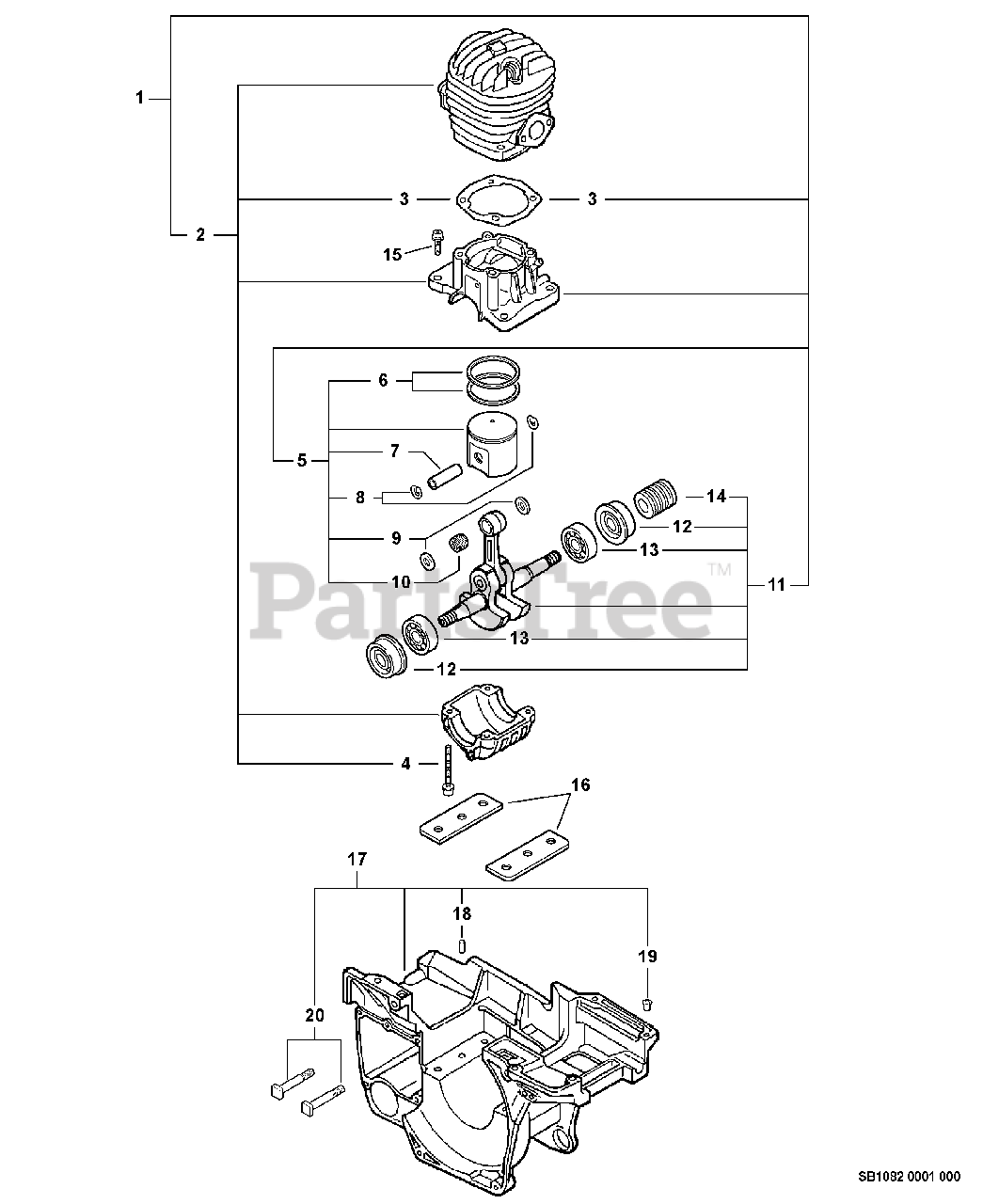

Engine, Short Block -- SB1082, Engine Cover Parts Diagram

  • Title

1

Echo SB1082

SHORT BLOCK -- SB1082
(Superseded to Discontinued)

Note: Includes ITEM 2-14

$

$

Not available

2

Echo P021006561

CRANKCASE KIT

Note: Includes ITEMS 3-4

$191.99

$

Usually ships in 2-4 days

0

3

Echo V100000131

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

4

Echo 90016205055

SCREW - 5X55

$2.49

$

Usually ships in 2-4 days

0

5

Echo P021006551

PISTON KIT

Note: Includes ITEMS 6-10

$100.99

$

Usually ships in 2-4 days

0

6

Echo 10001133730

RING, PISTON

$9.49

$

In Stock, only 3 left!

0

7

Echo V607000000

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

8

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 13

0

9

Echo 10001235430

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

10

Echo 10001419730

SPACER, PISTON

$3.99

$

Usually ships in 2-4 days

0

11

Echo P021006541

CRANKSHAFT ASSY

Note: Includes ITEMS 12-14

$175.99

$

Usually ships in 2-4 days

0

12

Echo V505000011

SEAL, OIL - 12

$9.49

$

In Stock, Qty 20+

0

13

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

Usually ships in 2-4 days

0

14

Echo V652000021

GEAR - WORM

$17.99

$

In Stock, only 2 left!

0

15

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 8

0

16

Echo V150001740

PLATE

$5.49

$

Usually ships in 2-4 days

0

17

Echo P021003100

ENGINE COVER ASSY
(Superseded to P021003101)

Note: INCLUDES ITEMS 18-20

$189.99

$

Usually ships in 2-4 days

0

18

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

19

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

20

Echo 43301119831

STUD, GUIDE BAR

$3.49

$

In Stock, Qty 20+

0
