CS-4400 - Echo Chainsaw (Type 1) (SN: 001001 - 101000) Carburetor Parts Diagram

CS-4400: 398x252x272 mm Head dry 4.6 kg - no chain/bar Air-cooled 2-stroke 43.6 ml engine CDI magneto (Champion CJ-6Y / NGK BPM 8Y) Recoil starter, centrifugal clutch Fuel 50:1 Echo 2-stroke oil, 89 octane unleaded (no MeOH, >10 % EtOH, >15 % MTBE) Fuel tank 0.60 L; oil tank 0.28 L Guide bar 60� side, 25� top, 0.64 mm pitch, ANSI B 175.1-2000 Chain ANSI B 175.1-2000.

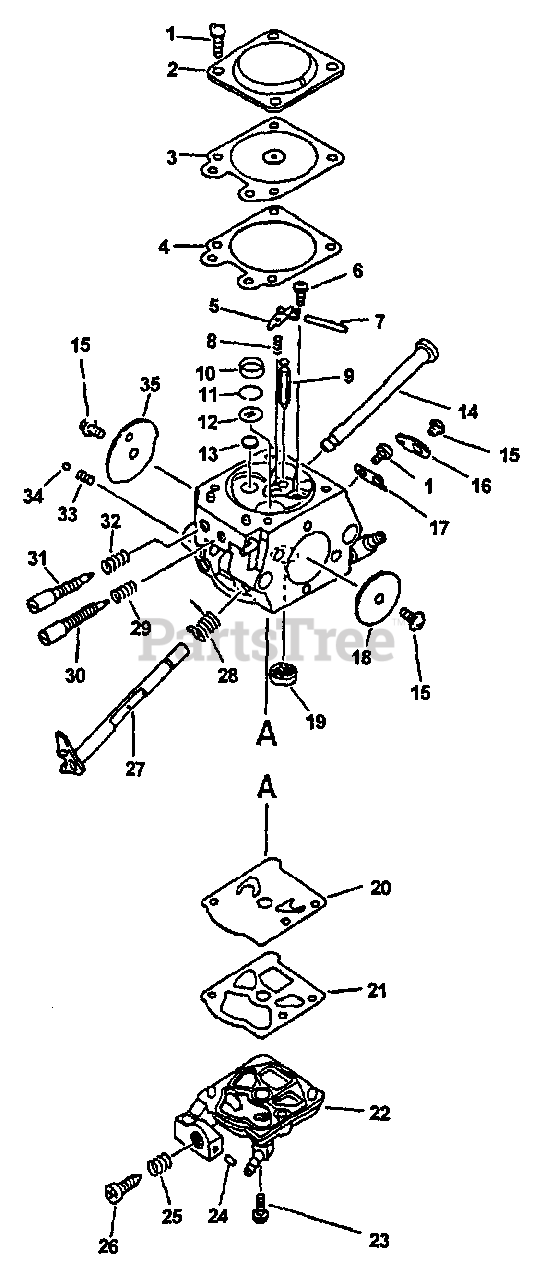

Carburetor Parts Diagram

  • Title

Echo 12300038331

CARBURETOR - WT-201A
(Superseded to 12300038332)

Note: Includes ITEMS 1-35

$104.99

$

Usually ships in 2-4 days

0

1

Echo 12310037330

REPAIR KIT, CARBURETOR

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

2

Echo 12314203930

COVER, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

3

Echo 12310037330

REPAIR KIT, CARBURETOR

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

3

Echo 12310137330

GASKET / DIAPHRAGM KIT

Note: INCLUDED IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$8.99

$

In Stock, only 4 left!

0

4

GASKET, METERING

Note: INCLUDED IN REPAIR KIT, P/N 12310037330 AND IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$

$

Not available

5

LEVER, METERING

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

6

SCREW, METERING LEVER PIN

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

7

PIN, METERING LEVER

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

8

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

9

VALVE, INLET NEEDLE

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

10

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

11

Echo 12316910630

RING, RETAINING

$1.49

$

Usually ships in 2-4 days

0

12

Echo 12316810631

SCREEN, SPARK ARRESTER

$1.99

$

Usually ships in 2-4 days

0

13

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

14

Echo 12313135430

SHAFT, CHOKE

$8.99

$

Usually ships in 2-4 days

0

15

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 6

0

16

Echo 12315038330

LEVER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

17

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

18

Echo 12311610530

VALVE, THROTTLE

$2.49

$

Usually ships in 2-4 days

0

19

STRAINER

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

------------------

DIAPHRAGM, PUMP

Note: INCLUDED IN REPAIR KIT, P/N 12310037330 AND IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$

$

Not available

------------------

GASKET, PUMP

Note: INCLUDED IN REPAIR KIT, P/N 12310037330 AND IN DIAPHRAGM/GASKET KIT, P/N 12310137330

$

$

Not available

22

Echo 12312438330

COVER, FUEL PUMP

$8.99

$

Usually ships in 2-4 days

0

23

Echo 12311003930

SCREW

$0.99

$

Usually ships in 2-4 days

0

24

Echo 12317815030

PLUG, FRICTION

$9.99

$

Usually ships in 2-4 days

0

25

Echo 12313306320

SPRING

$1.99

$

Usually ships in 2-4 days

0

26

Echo 12313404260

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 2 left!

0

27

Echo 12311735430

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

28

Echo 12311337530

SPRING, THROTTLE RETURN

$3.49

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

30

Echo 12311838330

NEEDLE, IDLE

$4.99

$

Usually ships in 2-4 days

0

31

Echo 12312038330

NEEDLE, HIGH SPEED

$7.99

$

Usually ships in 2-4 days

0

------------------

SPRING, NEEDLE

Note: INCLUDED IN REPAIR KIT, P/N 12310037330

$

$

Not available

33

Echo 12313510630

SPRING

$1.49

$

Usually ships in 2-4 days

0

34

Echo 12313610630

BALL, CHOKE FRICTION

$0.99

$

In Stock, only 1 left!

0

35

Echo 12313237330

VALVE, CHOKE

$1.99

$

Usually ships in 2-4 days

0

Echo 12310037330

REPAIR KIT, CARBURETOR

$

$

Not available

Echo 12310137330

GASKET / DIAPHRAGM KIT

$8.99

$

In Stock, only 4 left!

0
