CS-4400 - Echo Chainsaw (Type 1) (SN: 001001 - 101000) Chain Brake, Clutch Parts Diagram

CS-4400: 398x252x272 mm Head dry 4.6 kg - no chain/bar Air-cooled 2-stroke 43.6 ml engine CDI magneto (Champion CJ-6Y / NGK BPM 8Y) Recoil starter, centrifugal clutch Fuel 50:1 Echo 2-stroke oil, 89 octane unleaded (no MeOH, >10 % EtOH, >15 % MTBE) Fuel tank 0.60 L; oil tank 0.28 L Guide bar 60� side, 25� top, 0.64 mm pitch, ANSI B 175.1-2000 Chain ANSI B 175.1-2000.

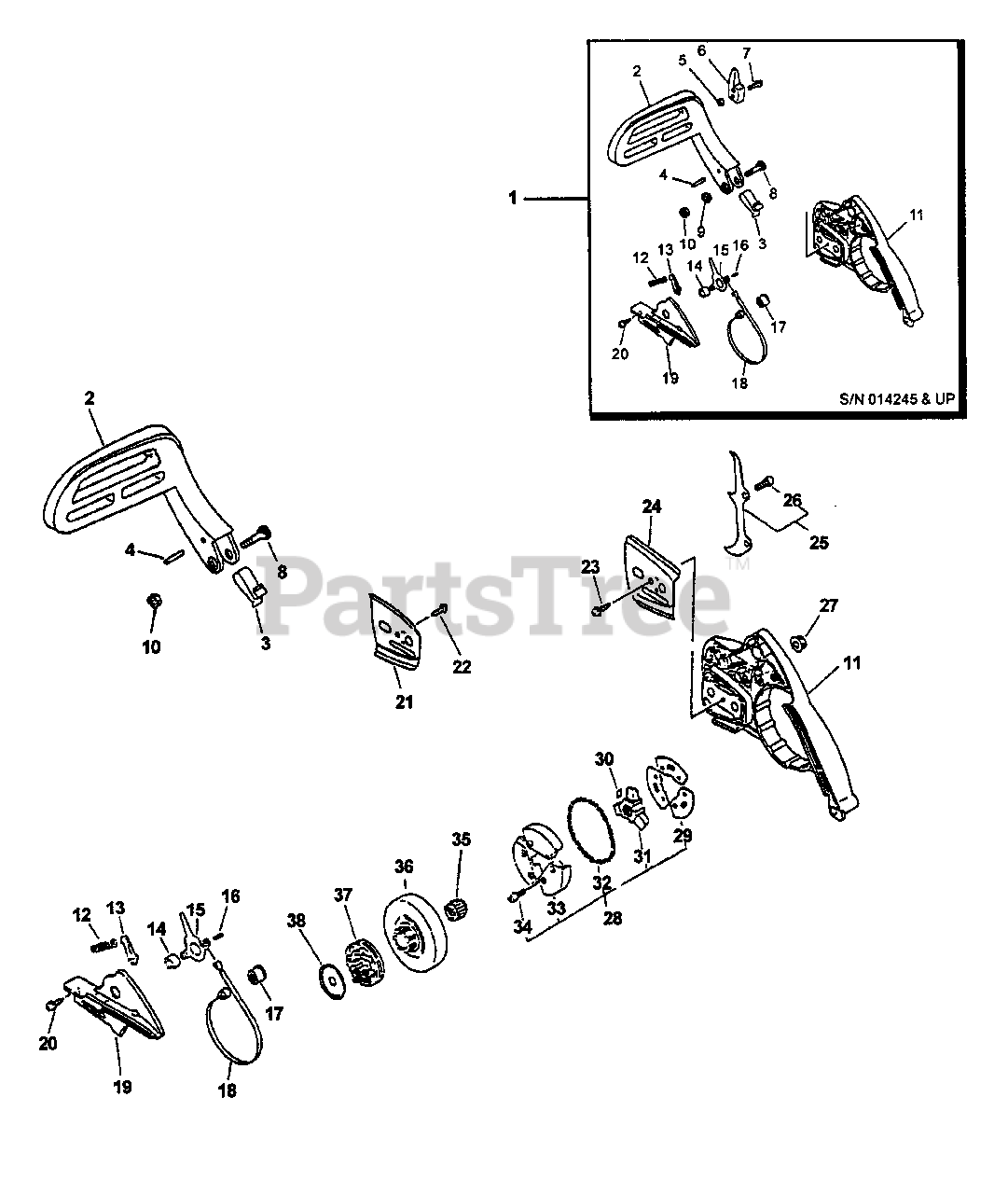

Chain Brake, Clutch Parts Diagram

  • Title

1

Echo 43310039030

CHAIN BRAKE ASSY
(Superseded to 43310039031)

Note: S/N 014245 & UP; INCLUDES ITEMS 2-20

$84.99

$

In Stock, only 3 left!

0

2

Echo 43320138930

LEVER ASSY, BRAKE

Note: S/N 001001-014244; Includes ITEMS 2-4

$33.99

$

Usually ships in 2-4 days

0

2

Echo 43320139031

BRAKE LEVER ASSY
(Superseded to 43320139032)

Note: S/N 014245 & UP; INCLUDES ITEMS 2-10

$40.99

$

Usually ships in 2-4 days

0

3

Echo 43311438330

SPRING
(Superseded to 43311438331)

$7.99

$

Usually ships in 2-4 days

0

4

Echo 90033030240

PIN 3×24

$0.99

$

In Stock, Qty 20+

0

5

Echo 900500-00004

NUT M4

Note: S/N 014245 & UP

$0.99

$

In Stock, Qty 20+

0

6

Echo 43317139330

WEIGHT, BRAKE

Note: S/N 014245 & UP

$9.99

$

Usually ships in 2-4 days

0

7

Echo 90023804018

SCREW 4×18

Note: S/N 014245 & UP

$0.99

$

In Stock, only 3 left!

0

8

Echo 43311330130

SCREW

Note: S/N 001001-014244

$5.99

$

Usually ships in 2-4 days

0

8

Echo 90020905030

SCREW 5×30

Note: S/N 014245 & UP

$0.99

$

In Stock, only 2 left!

0

9

Echo 43316739130

COLLAR 5.3×10×13×L5

Note: S/N 014245 & UP

$3.49

$

In Stock, Qty 20+

0

10

Echo 43313730130

NUT

Note: S/N 001001-014244

$14.99

$

Usually ships in 2-4 days

0

10

Echo 90056000005

NUT, LOCK M5

Note: S/N 014245 & UP

$1.49

$

In Stock, Qty 5

0

11

Echo 43300539330

GUARD, SPROCKET
(Superseded to P021001280)

$29.99

$

In Stock, only 3 left!

0

12

Echo 43312235430

SPRING, COMPRESSION

$3.99

$

In Stock, only 2 left!

0

13

Echo 43320935430

STOPPER, BRAKE

$5.99

$

In Stock, only 1 left!

0

14

Echo 43311538330

WASHER 5.2×12×14

$1.49

$

Usually ships in 2-4 days

0

15

Echo 43320835431

LEVER, BRAKE

$22.99

$

In Stock, only 3 left!

0

16

Echo 90033040088

PIN, SPRING 4×8.8

$1.49

$

In Stock, only 4 left!

0

17

Echo 43314235430

ADJUSTER, BRAKE

$3.99

$

In Stock, only 1 left!

0

18

Echo 43312335430

BAND, BRAKE
(Superseded to C328000060)

$8.49

$

In Stock, Qty 6

0

19

Echo 43331039330

COVER, BRAKE

$6.99

$

In Stock, only 2 left!

0

20

Echo 90025304010

SCREW 4×10

$0.99

$

In Stock, Qty 9

0

21

Echo 43301335431

PLATE, GUIDE - INNER
(Superseded to 43301335432)

$6.99

$

In Stock, only 1 left!

0

22

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, Qty 20+

0

23

Echo 90022003006

SCREW 3×6

$0.99

$

In Stock, Qty 20+

0

24

Echo 43301238330

PLATE, GUIDE

$7.99

$

Usually ships in 2-4 days

0

25

Echo 88020038330

SPIKE KIT, BUMPER

Note: Includes ITEM 26

$15.99

$

In Stock, only 1 left!

0

26

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, Qty 12

0

27

Echo 43301912330

NUT, FLANGE M8×1.25
(Superseded to V265000200)

$2.49

$

In Stock, Qty 20+

0

28

Echo 17500035431

CLUTCH ASSY
(Superseded to Discontinued)

Note: INCLUDES ITEMS 29-34

$

$

Not available

29

Echo 17501919830

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

30

Echo 17506235430

SPACER

$0.99

$

Usually ships in 2-4 days

0

31

Echo 17501635430

HUB, CLUTCH

$28.99

$

Usually ships in 2-4 days

0

32

Echo 17501819830

SPRING, CLUTCH

$3.99

$

Usually ships in 2-4 days

0

33

Echo 17500219830

SHOE SET, CLUTCH (3PCS)

$48.99

$

Usually ships in 2-4 days

0

34

Echo 90010504006

BOLT 4×6

$0.99

$

Usually ships in 2-4 days

0

35

Echo 17501214630

BEARING, NEEDLE

$12.99

$

In Stock, only 1 left!

0

36

Echo 17510535430

DRUM, CLUTCH
(Superseded to 17510535431)

$53.99

$

In Stock, only 4 left!

0

37

Echo 17511412530

SPROCKET, 0.325 RIM

$22.99

$

In Stock, Qty 20+

0

38

Echo 17501938330

PLATE, CLUTCH

$10.99

$

In Stock, only 2 left!

0
