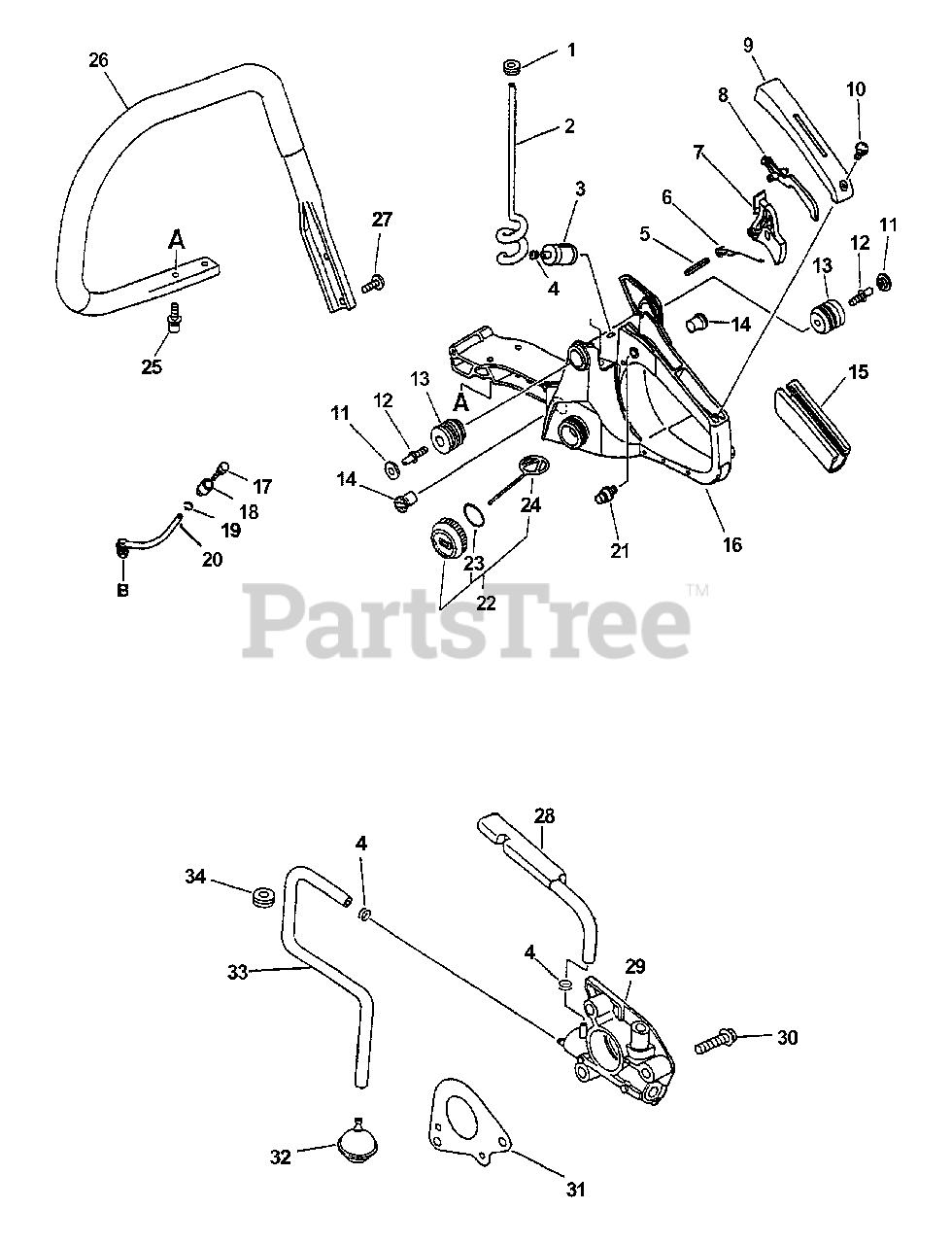

CS-4400 - Echo Chainsaw (Type 1E) (SN: 001001 - 101000) Handles, Oiler, Fuel System, Throttle Trigger Parts Diagram

Chainsaw (Type 1E)

Handles, Oiler, Fuel System, Throttle Trigger Parts Diagram

  • Title

1

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

2

Echo 13201038331

PIPE, FUEL 3×6×165
(Superseded to 13201038332)

$9.99

$

In Stock, only 4 left!

0

3

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

4

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

6

Echo 17804335430

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

7

Echo 17801038330

TRIGGER, THROTTLE
(Superseded to 17801038331)

$5.99

$

Usually ships in 2-4 days

0

8

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 1 left!

0

9

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

10

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

11

Echo 10091838330

CAP, CUSHION

$2.99

$

Usually ships in 2-4 days

0

12

Echo 10091532530

SCREW 5

$3.99

$

In Stock, only 2 left!

0

13

Echo 10092138330

CUSHION 5

$24.99

$

Usually ships in 2-4 days

0

14

Echo 10091038330

CUSHION 5

$13.99

$

Usually ships in 2-4 days

0

15

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

16

Echo 35110139330

REAR HANDLE KIT
(Superseded to 35110139331)

Note: Includes ITEMS 17-18

$

$

Not available

17

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

18

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

19

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

20

Echo 13201239330

PIPE, VENT - GROMMET
(Superseded to 13201239331)

$15.99

$

In Stock, only 3 left!

0

21

Echo 17830212330

LATCH, THROTTLE
(Superseded to 17830237930)

$9.99

$

In Stock, only 3 left!

0

22

Echo 13100437932

CAP ASSY, FUEL
(Superseded to 13100437933)

Note: INCLUDES ITEMS 23-24

$12.99

$

In Stock, only 2 left!

0

23

Echo 90072000022

O-RING 22

$2.49

$

In Stock, only 2 left!

0

24

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 7

0

25

Echo 90025305016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

26

Echo 35160638330

HANDLE, FRONT
(Superseded to 35160638331)

$

$

Not available

27

Echo 90026805020

SCREW, TAPPING

$1.99

$

Usually ships in 2-4 days

0

28

Echo 43722938331

PIPE, OIL OUTLET

$

$

Not available

29

Echo 43700238330

AUTO-OILER ASSY

$61.99

$

In Stock, only 4 left!

0

30

Echo 90022304016

SCREW 4×16

$0.99

$

In Stock, Qty 20+

0

31

Echo 17531038330

PLATE, SEAL

$1.49

$

In Stock, Qty 5

0

32

Echo 43620514730

FILTER, OIL

$10.99

$

In Stock, only 3 left!

0

33

Echo 43721038330

PIPE, OIL
(Superseded to 43721038331)

$6.49

$

In Stock, Qty 6

0

34

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 10

0
