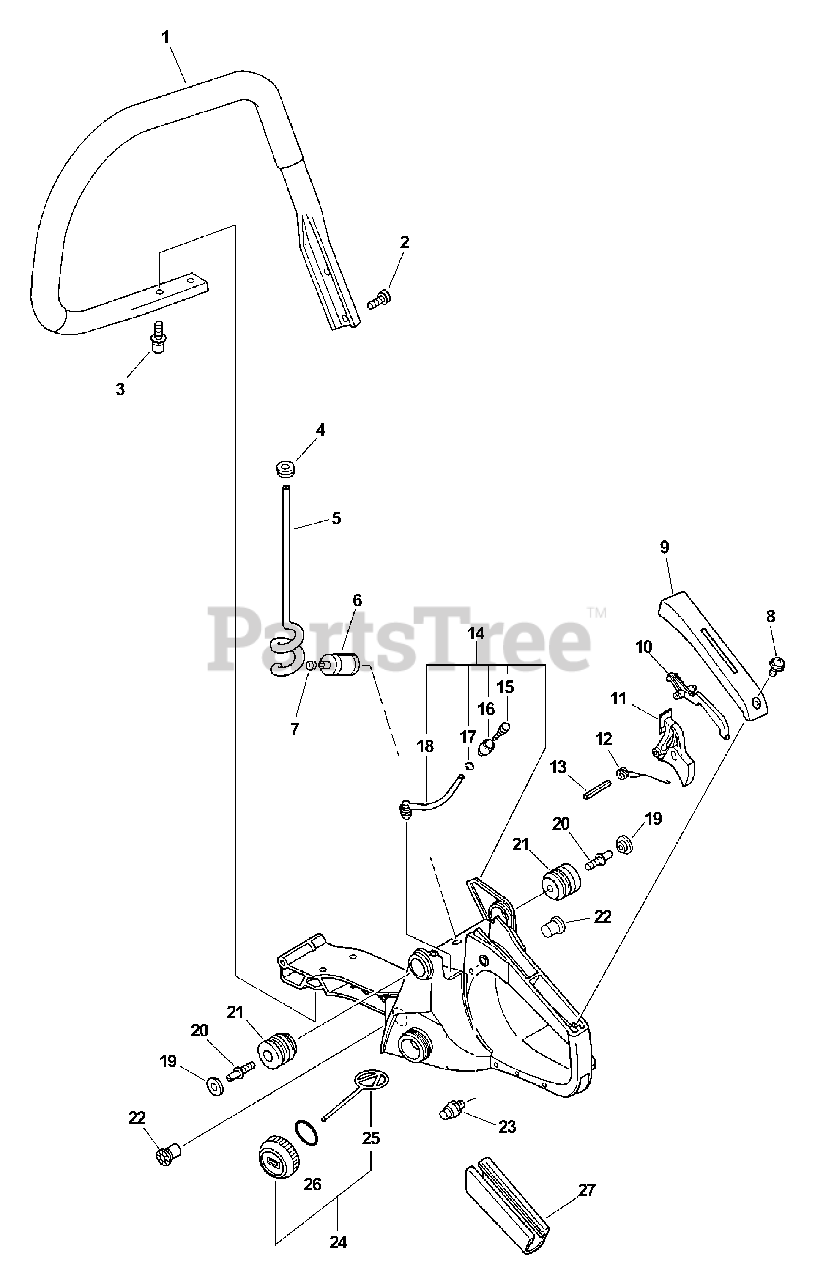

CS-4400 - Echo Chainsaw (Type 1E) (SN: 101001 - 999999) Handle Assembly Parts Diagram

Chainsaw (Type 1E)

Handle Assembly Parts Diagram

  • Title

1

Echo 35160638330

HANDLE, FRONT
(Superseded to 35160638331)

$

$

Not available

2

Echo 9114505020

SCREW TAPPING 5×20

$1.49

$

In Stock, Qty 20+

0

3

Echo 9114505016

SCREW TAPPING 5×16

$1.49

$

In Stock, Qty 5

0

4

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

5

Echo 13201038331

PIPE, FUEL 3×6×165
(Superseded to 13201038332)

$9.99

$

In Stock, only 4 left!

0

6

Echo 13120519831

FILTER, FUEL
(Superseded to 13120519832)

$9.99

$

In Stock, Qty 20+

0

7

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

8

Echo 90025304014

SCREW 4×14

$0.99

$

In Stock, only 2 left!

0

9

Echo 35115535430

COVER, HANDLE
(Superseded to 35115535431)

$13.99

$

In Stock, only 2 left!

0

10

Echo 17809037930

LEVER, THROTTLE LOCKOUT

$5.99

$

In Stock, only 1 left!

0

11

Echo C450000000

TRIGGER, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

12

Echo 17804335430

SPRING, THROTTLE RETURN

$2.99

$

Usually ships in 2-4 days

0

13

Echo 90034540030

PIN, SPRING 4×30

$1.99

$

In Stock, Qty 10

0

14

Echo 35110139332

REAR HANDLE ASSY
(Superseded to P021011460)

Note: Includes ITEMS 15-18

$

$

Not available

15

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

16

Echo 13132840630

HOLDER, VENT

$7.49

$

In Stock, Qty 13

0

17

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

18

Echo 13201239330

PIPE, VENT - GROMMET
(Superseded to 13201239331)

$15.99

$

In Stock, only 3 left!

0

19

Echo 10091838330

CAP, CUSHION

$2.99

$

Usually ships in 2-4 days

0

20

Echo 10091532530

SCREW 5

$3.99

$

In Stock, only 2 left!

0

21

Echo 10092138330

CUSHION 5

$24.99

$

Usually ships in 2-4 days

0

22

Echo 10091038330

CUSHION 5

$13.99

$

Usually ships in 2-4 days

0

23

Echo 17830237930

LOCK, THROTTLE TRIGGER

$9.99

$

In Stock, only 3 left!

0

24

Echo 13100437932

CAP ASSY, FUEL
(Superseded to 13100437933)

Note: INCLUDES ITEMS 25-26

$12.99

$

In Stock, only 2 left!

0

25

Echo A365-000050

CONNECTOR, CAP L= 60 MM
(Superseded to A365000050)

$2.49

$

In Stock, Qty 7

0

26

Echo 90072000022

O-RING 22

$2.49

$

In Stock, only 2 left!

0

27

Echo 35111119830

GRIP, HANDLE
(Superseded to 35111119831)

$7.49

$

In Stock, only 2 left!

0

Echo 90015

BULK PIPE - 3×6 MM BLACK (4 PIECES×2 M)

Note: OPTIONAL

$48.99

$

In Stock, only 2 left!

0
