CS-450 - Echo Chainsaw (SN: C05812001001 - C05812999999) Chain Brake Parts Diagram

Chainsaw

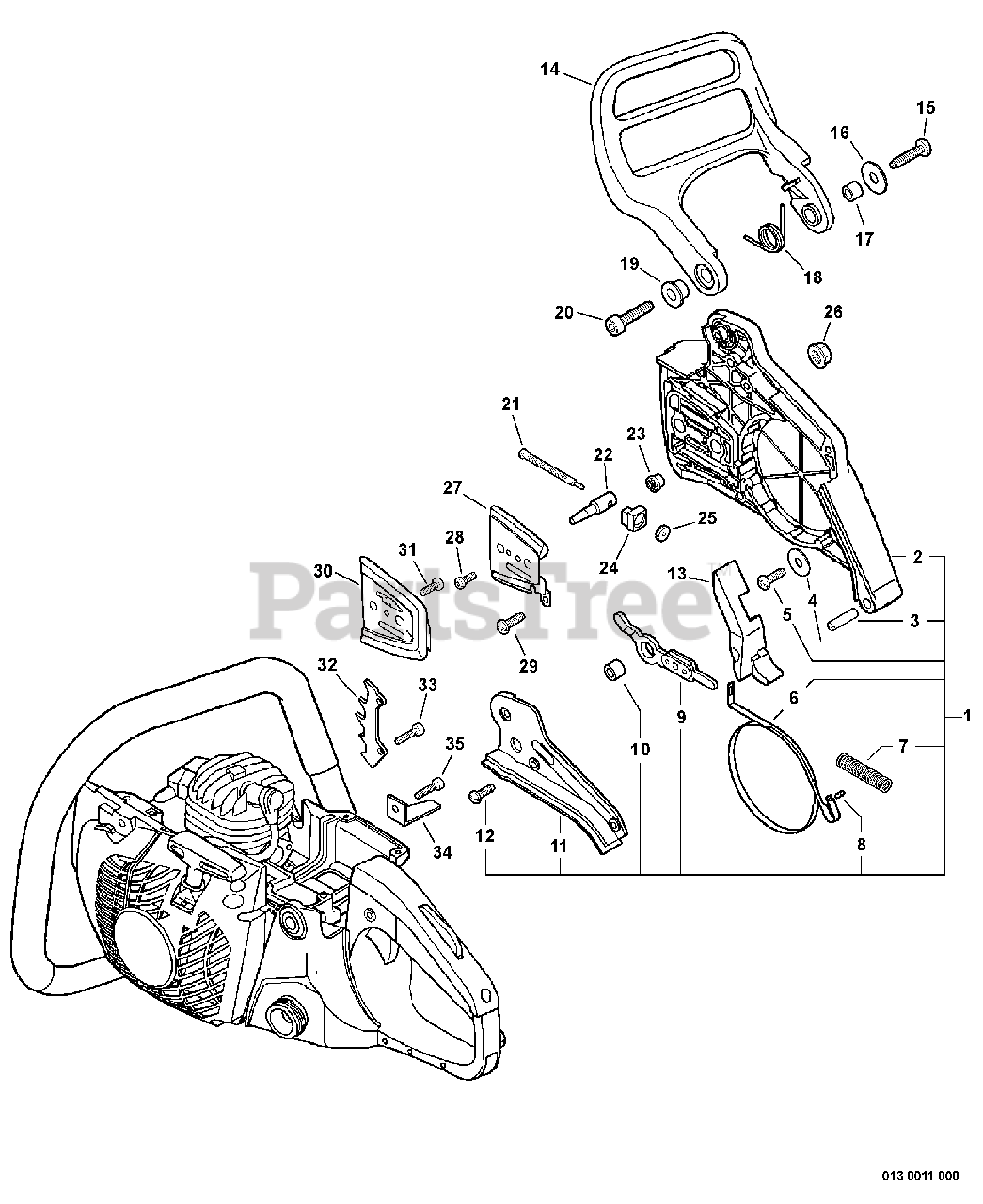

Chain Brake Parts Diagram

  • Title

1

Echo C032000323

CHAIN BRAKE ASSY

Note: Includes ITEMS 2-12

$103.99

$

In Stock, only 1 left!

0

2

Echo C300000352

GUARD, SPROCKET
(Superseded to C300000353)

$35.99

$

In Stock, only 2 left!

0

3

Echo 90034260025

PIN, SPRING 6×25

$1.99

$

Usually ships in 2-4 days

0

4

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 8

0

5

Echo 90025304016

SCREW 4×16

$0.99

$

In Stock, Qty 10

0

6

Echo C328000110

BAND, BRAKE

$9.99

$

In Stock, only 2 left!

0

7

Echo V450000070

SPRING, COMPRESSION

$2.99

$

In Stock, only 2 left!

0

8

Echo 90033030120

PIN 3×12

$0.99

$

In Stock, Qty 6

0

9

Echo C334000090

CONNECTOR, BRAKE

$17.99

$

In Stock, only 2 left!

0

10

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

11

Echo C345000241

COVER, BRAKE

$4.49

$

Usually ships in 2-4 days

0

12

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

13

Echo C302000000

CUSHION

$6.49

$

In Stock, only 2 left!

0

14

Echo C320000141

LEVER, BRAKE

$20.99

$

In Stock, only 2 left!

0

15

Echo V202000120

BOLT 4×14

$0.99

$

In Stock, Qty 7

0

16

Echo 17721403930

WASHER 4.2×16.5×1

$0.99

$

In Stock, Qty 8

0

17

Echo 43311635430

SPACER 8×12×9

$6.49

$

In Stock, only 1 left!

0

18

Echo V452001281

SPRING, TORSION

$2.49

$

In Stock, only 3 left!

0

19

Echo V356000300

COLLAR 10

$2.49

$

Usually ships in 2-4 days

0

20

Echo 90010505030

BOLT 5×30

$1.49

$

Usually ships in 2-4 days

0

21

Echo V203000110

SCREW, CHAIN TENSION

$6.99

$

In Stock, Qty 18

0

22

Echo C309000030

TENSIONER, CHAIN

$5.49

$

In Stock, Qty 20+

0

23

Echo V651000001

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

24

Echo V355000270

COLLAR 8
(Superseded to V355000800)

$1.99

$

In Stock, Qty 20+

0

25

Echo V651000011

GEAR, BEVEL

$9.49

$

In Stock, Qty 20+

0

26

Echo V265000200

NUT, FLANGE M8×1.25

$2.49

$

In Stock, Qty 20+

0

27

Echo C305000001

PLATE, GUIDE - OUTER

$7.99

$

In Stock, only 2 left!

0

28

Echo 9132503005

SCREW 3×5

$0.99

$

In Stock, Qty 7

0

29

Echo V202000060

SCREW 4×12

$1.49

$

In Stock, Qty 20+

0

30

Echo 43301335432

PLATE, GUIDE - INNER

$6.99

$

In Stock, only 2 left!

0

31

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, only 4 left!

0

32

Echo C304000030

SPIKE, BUMPER

$9.99

$

Usually ships in 2-4 days

0

33

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

34

Echo C310000000

CHAIN CATCHER

$2.49

$

In Stock, Qty 20+

0

35

Echo 90016205014

BOLT 5×14

$1.49

$

In Stock, Qty 7

0
