CS-450 - Echo Chainsaw (SN: C05812001001 - C05812999999) Starter Parts Diagram

Chainsaw

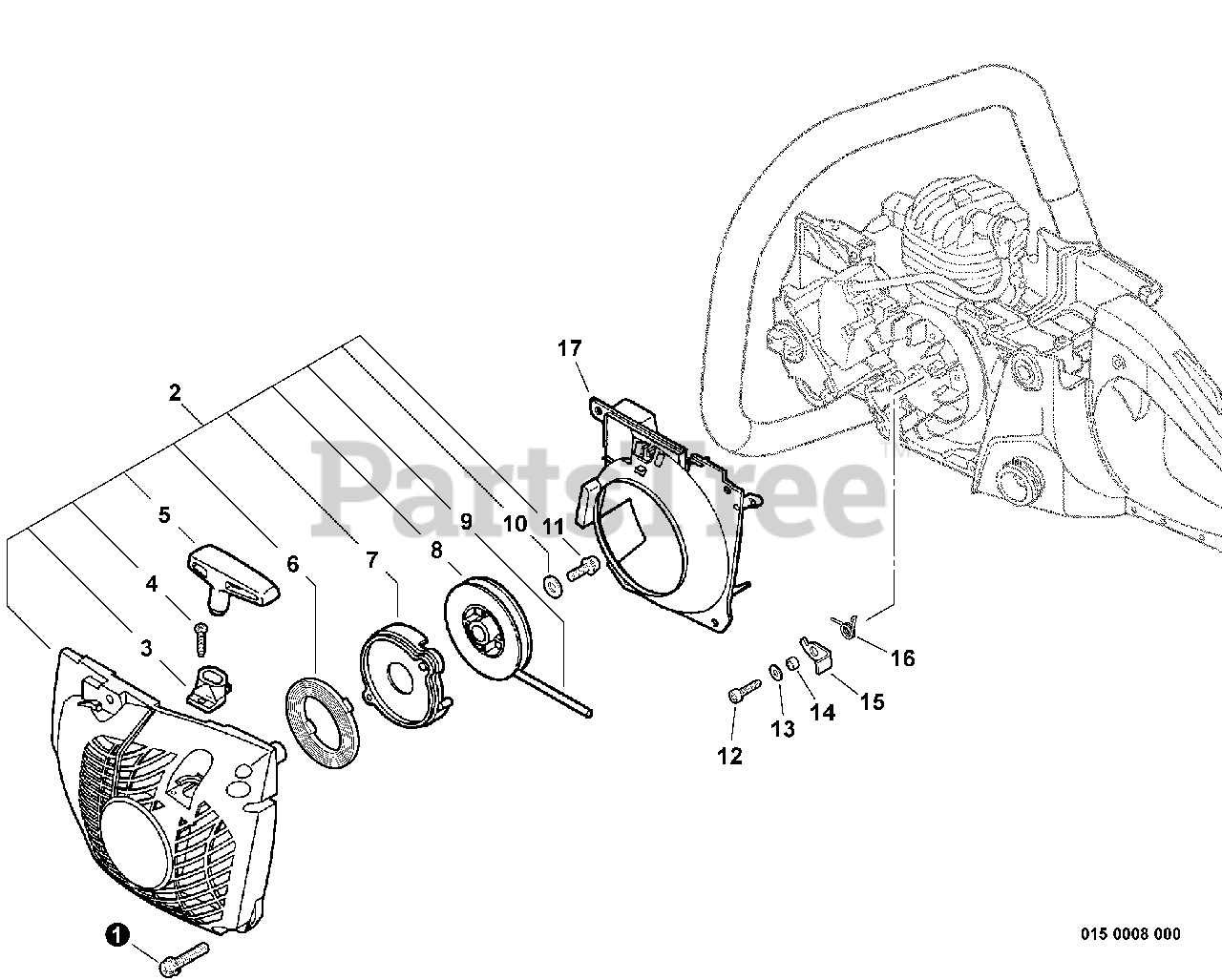

Starter Parts Diagram

  • Title

1

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 14

0

2

Echo P021013481

STARTER ASSY
(Superseded to P021013482)

Note: Includes ITEMS 3-11

$89.99

$

Usually ships in 2-4 days

0

3

Echo 17722737930

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

4

Echo 90029603014

SCREW - 3X14

$0.99

$

Usually ships in 2-4 days

0

5

Echo 17722835431

GRIP, STARTER
(Superseded to 17722835432)

$9.49

$

In Stock, Qty 20+

0

6

Echo 17722035430

SPRING, REWIND

$14.99

$

In Stock, Qty 8

0

7

Echo 17722135430

PLATE, STARTER

$3.49

$

Usually ships in 2-4 days

0

8

Echo A506000100

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

9

Echo 17722619830

ROPE, STARTER - 3.5X960

Note: RePower BULK OPTION: 99944445000

$5.99

$

Usually ships in 2-4 days

0

10

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, only 4 left!

0

11

Echo 90023805012

SCREW - 5X12

$0.99

$

In Stock, Qty 8

0

12

Echo V203000090

SCREW - 5X14

$0.99

$

Usually ships in 2-4 days

0

13

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 17724704630

SPACER

$2.49

$

In Stock, Qty 5

0

15

Echo 17721819830

PAWL, STARTER

$4.99

$

In Stock, Qty 20+

0

16

Echo 17723435430

SPRING, RETURN

$2.49

$

In Stock, only 2 left!

0

17

Echo A172000062

COVER, FAN

$12.99

$

Usually ships in 2-4 days

0
