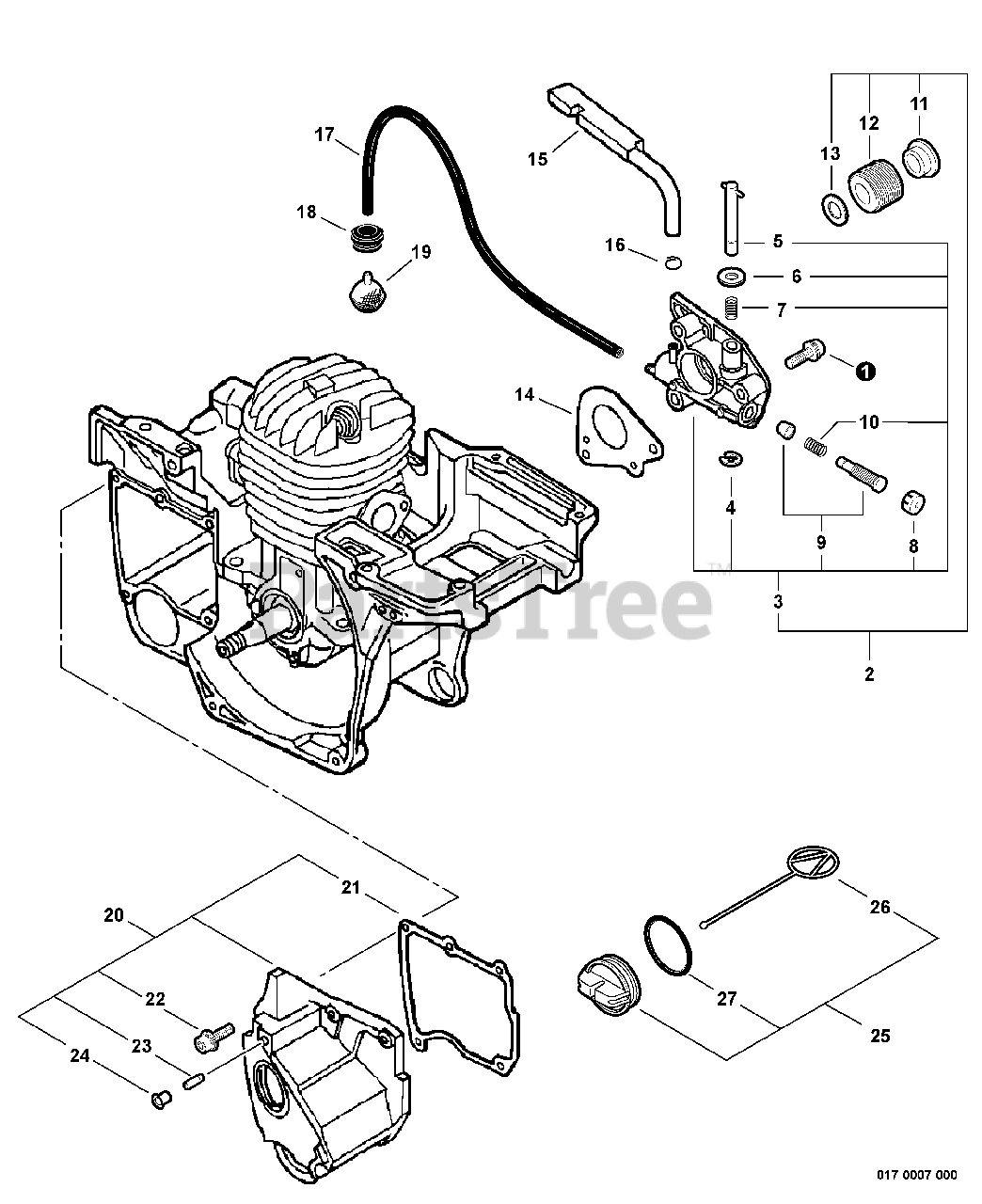

CS-450 - Echo Chainsaw (SN: C24326001001 - C24326999999) Auto-Oiler, Oil Tank Parts Diagram

Chainsaw

Auto-Oiler, Oil Tank Parts Diagram

  • Title

1

Echo 90022304016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

2

Echo P021011291

AUTO-OILER ASSY
(Superseded to P021011292)

Note: Includes ITEMS 3-13

$76.99

$

In Stock, Qty 9

0

3

Echo C022000030

AUTO-OILER ASSY

Note: Includes ITEMS 4-10

$59.99

$

In Stock, only 1 left!

0

4

Echo 12312715030

RING, RETAINING

$0.99

$

In Stock, Qty 10

0

5

Echo 43701638330

NEEDLE, ADJUST

$14.99

$

In Stock, only 1 left!

0

6

Echo 43702937330

WASHER

$2.99

$

Usually ships in 2-4 days

0

7

Echo 43701537330

SPRING

$3.99

$

Usually ships in 2-4 days

0

8

Echo 43706238330

CAP, OIL PUMP

$4.99

$

Usually ships in 2-4 days

0

9

Echo 43702437330

PLUNGER ASSY

$23.99

$

In Stock, only 1 left!

0

10

Echo 43701938330

SPRING, PLUNGER

$3.99

$

Usually ships in 2-4 days

0

11

Echo V356000352

COLLAR - 10

$2.99

$

In Stock, only 2 left!

0

12

Echo V652000030

GEAR - WORM

$11.99

$

In Stock, only 4 left!

0

13

Echo V308000030

WASHER - 11

$2.99

$

In Stock, Qty 8

0

14

Echo 17531038330

SEAL, DUST

$1.49

$

In Stock, Qty 6

0

15

Echo 43722938331

PIPE - OIL

$14.99

$

Usually ships in 2-4 days

0

16

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

17

Echo 43721038330

PIPE - OIL
(Superseded to 43721038331)

$5.49

$

In Stock, Qty 18

0

18

Echo 13211512330

GROMMET

$1.49

$

In Stock, Qty 20+

0

19

Echo 43620514730

FILTER, OIL

$8.99

$

In Stock, only 4 left!

0

20

Echo P021012550

OIL TANK ASSY

Note: Includes ITEMS 21-24

$52.99

$

Usually ships in 2-4 days

0

21

Echo 43601938330

GASKET, OIL TANK

$1.99

$

In Stock, Qty 6

0

22

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

23

Echo 43611413930

VENT, TANK

$6.49

$

In Stock, Qty 5

0

24

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

25

Echo P021007630

CAP ASSY - BLACK

Note: Includes ITEMS 26-27

$10.99

$

In Stock, Qty 20+

0

26

Echo A365000050

CONNECTOR, CAP

$2.49

$

In Stock, Qty 20+

0

27

Echo 90072100025

O-RING - 25

$2.49

$

In Stock, Qty 20+

0
