CS-450 P - Echo Chainsaw (SN: C06312001001 - C06312999999) Engine, Short Block -- SB1094, Engine Cover Parts Diagram

CS-450P Chain Saw (technical specifications) - Engine: 45.0 cc, 4-stroke, 6-V, 20-in. - Carburetor: WT-901A. - Fuel tank: 1.7 L; Oil tank: 0.6 L; Auto-oiler kit. - Spark plug: BPM-8Y. - Throttle control (standard & Canadian models). - Guide bars: 16", 18", 20" (40-50 cm). - Corresponding saw chains: 16", 18", 20" (40-50 cm). - Bar & chain kit; chain brake (orange). - Labels: model, attention, noise, kick-back, bar & chain.

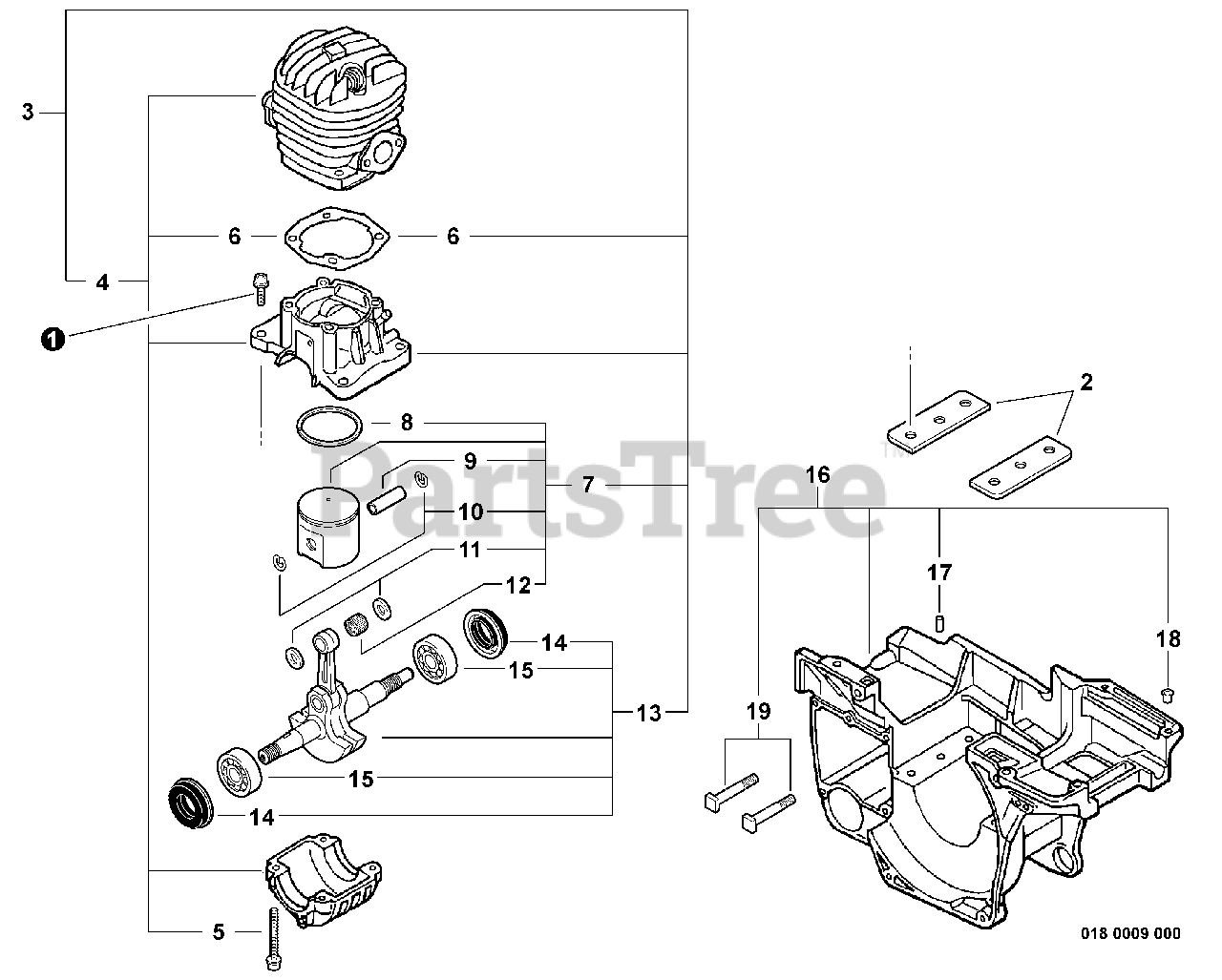

Engine, Short Block -- SB1094, Engine Cover Parts Diagram

  • Title

1

Echo 900162-05022

BOLT 5×22

$0.99

$

In Stock, Qty 20+

0

2

Echo V150001740

PLATE, EYE

$5.49

$

Usually ships in 2-4 days

0

3

Echo SB1094

SHORT BLOCK

Note: Includes ITEM 2-13 RePower OPTION

$409.99

$

Usually ships in 2-4 days

0

4

Echo P021012420

CRANKCASE KIT

Note: Includes ITEMS 3-4

$164.99

$

Usually ships in 2-4 days

0

5

Echo 90016205055

BOLT 5×55

$2.49

$

Usually ships in 2-4 days

0

6

Echo V100000131

GASKET, CYLINDER

$5.99

$

In Stock, only 2 left!

0

7

Echo P021016160

PISTON KIT

Note: Includes ITEMS 6-10

$85.99

$

Usually ships in 2-4 days

0

8

Echo 10001138930

RING, PISTON

$9.49

$

Usually ships in 2-4 days

0

9

Echo 10001335430

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

10

Echo 10001503931

RING, SNAP

$0.99

$

In Stock, Qty 20+

0

11

Echo 10001419730

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

12

Echo 10001235430

BEARING, NEEDLE 9

$13.99

$

Usually ships in 2-4 days

0

13

Echo P021012440

CRANKSHAFT ASSY
(Superseded to P021012441)

Note: Includes ITEMS 12-13

$151.99

$

Usually ships in 2-4 days

0

14

Echo V505000011

SEAL, OIL 12

$9.49

$

In Stock, Qty 17

0

15

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, Qty 20+

0

16

Echo P021012470

COVER ASSY, ENGINE
(Superseded to P021012471)

Note: Includes ITEMS 17-19

$126.99

$

Usually ships in 2-4 days

0

17

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

18

Echo 43601838330

COLLAR 5.5×6.65×5

$0.99

$

Usually ships in 2-4 days

0

19

Echo 43301119831

STUD, GUIDE BAR 8

$3.49

$

In Stock, Qty 20+

0
