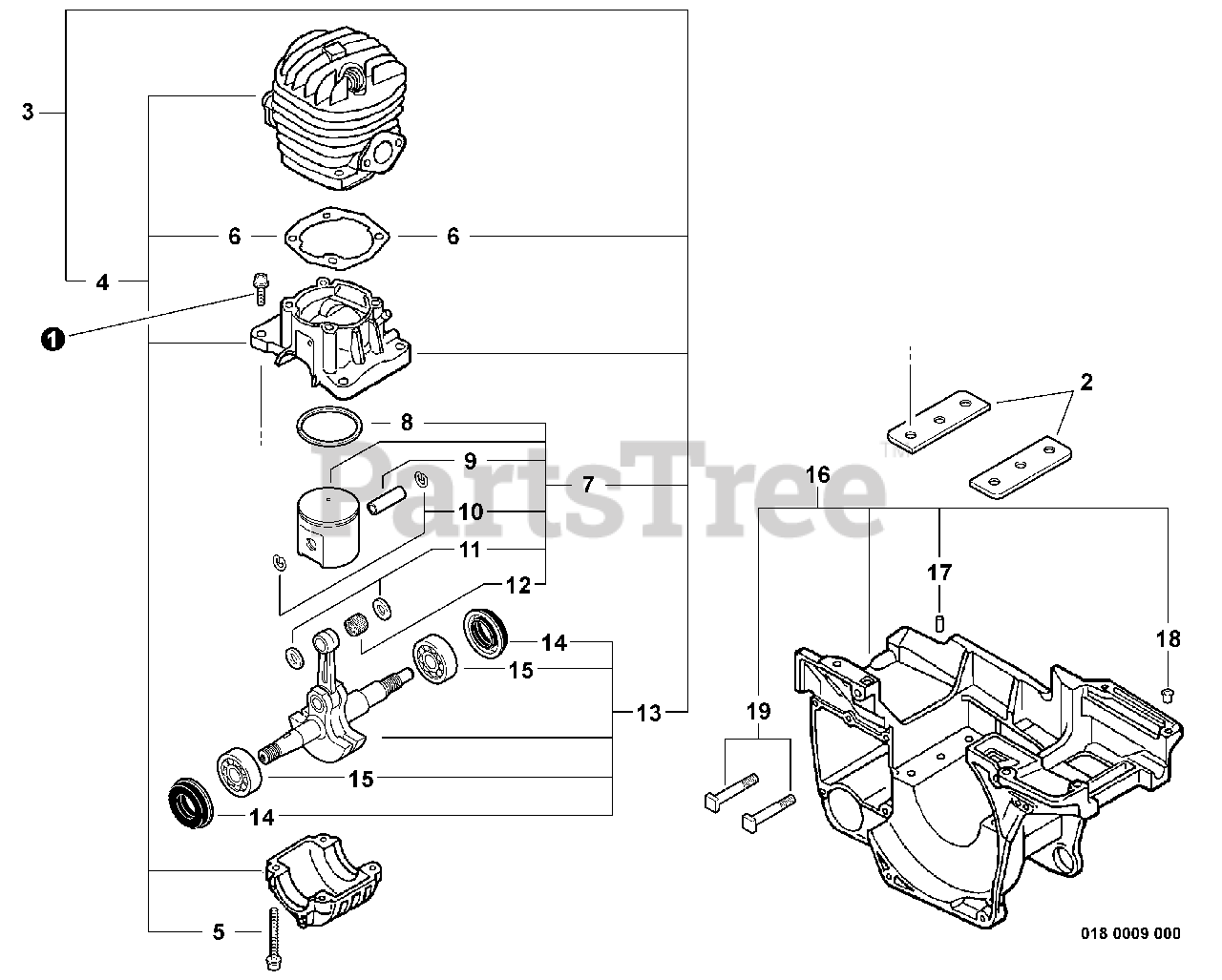

CS-450 P - Echo Chainsaw (SN: C06312001001 - C06312999999) Engine, Short Block -- SB1094, Engine Cover Parts Diagram

Chainsaw

Engine, Short Block -- SB1094, Engine Cover Parts Diagram

  • Title

1

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

2

Echo V150001740

PLATE

$4.99

$

Usually ships in 2-4 days

0

3

Echo SB1094

SHORT BLOCK -- SB1094

Note: Includes ITEM 2-13

$380.99

$

Usually ships in 2-4 days

0

4

Echo P021012420

CRANKCASE KIT

Note: Includes ITEMS 3-4

$152.99

$

Usually ships in 2-4 days

0

5

Echo 90016205055

SCREW - 5X55

$2.49

$

Usually ships in 2-4 days

0

6

Echo V100000131

GASKET, CYLINDER

$5.99

$

Usually ships in 2-4 days

0

7

Echo P021016160

PISTON KIT

Note: Includes ITEMS 6-10

$79.99

$

Usually ships in 2-4 days

0

8

Echo 10001138930

RING, PISTON

$8.49

$

Usually ships in 2-4 days

0

9

Echo 10001335430

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

10

Echo 10001503931

RING, RETAINING

$0.99

$

In Stock, Qty 16

0

11

Echo 10001419730

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

12

Echo 10001235430

BEARING, NEEDLE

$12.99

$

Usually ships in 2-4 days

0

13

Echo P021012440

CRANKSHAFT ASSY
(Superseded to P021012441)

Note: Includes ITEMS 12-13

$140.99

$

Usually ships in 2-4 days

0

14

Echo V505000011

SEAL, OIL - 12

$8.49

$

In Stock, Qty 8

0

15

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 19

0

16

Echo P021012470

ENGINE COVER ASSY
(Superseded to P021012471)

Note: Includes ITEMS 17-19

$117.99

$

Usually ships in 2-4 days

0

17

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

18

Echo 43601838330

COLLAR

$0.99

$

Usually ships in 2-4 days

0

19

Echo 43301119831

STUD, GUIDE BAR

$3.49

$

In Stock, only 3 left!

0
