CS-4510 - Echo Chainsaw (SN: C71315001001 - C71315999999) Engine Parts Diagram

Chainsaw

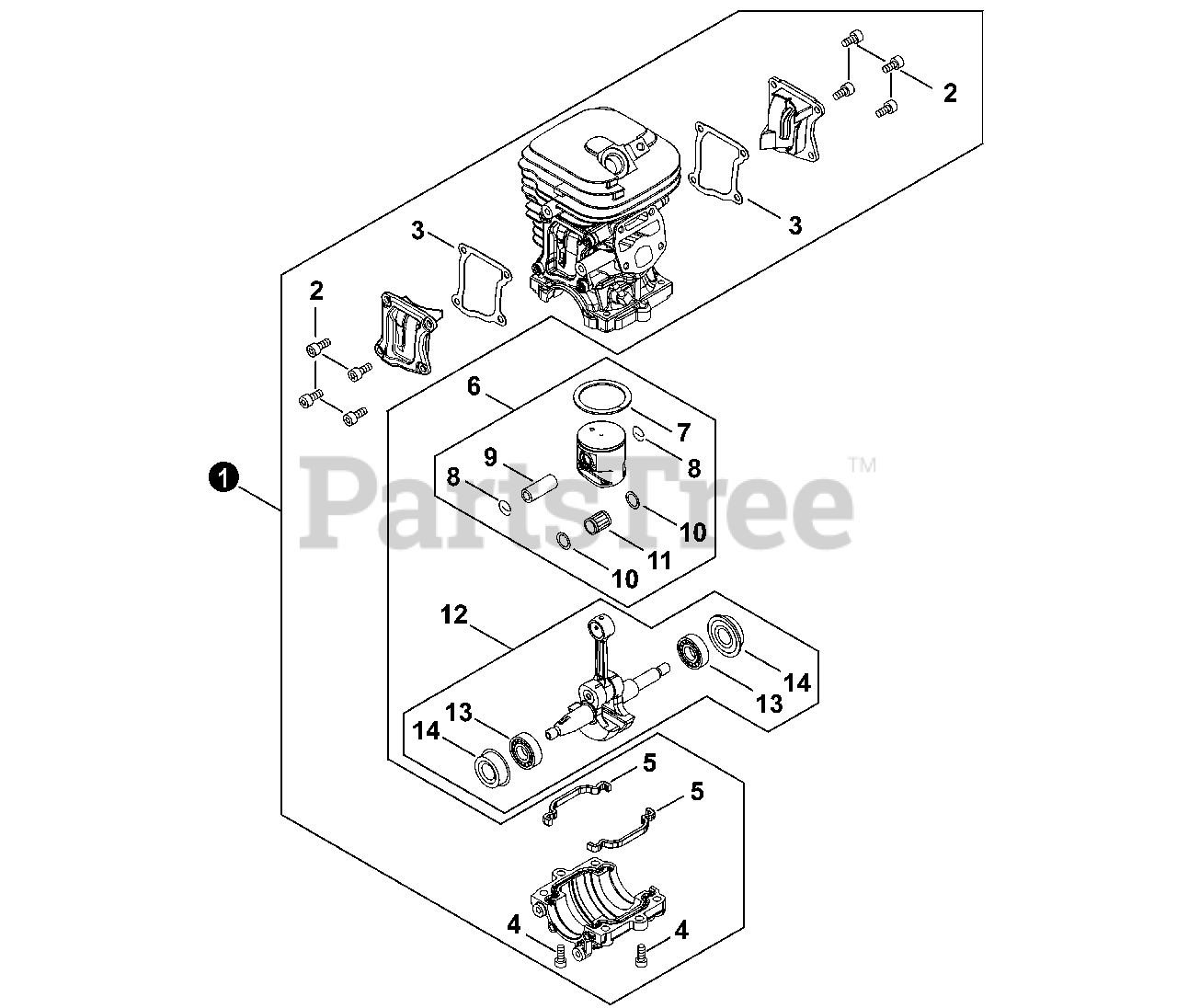

Engine Parts Diagram

  • Title

1

Echo P100004570

CRANKCASE SET

Note: Includes Items 2-5

$219.99

$

Usually ships in 2-4 days

0

2

Echo V804000110

BOLT, TORX 4

$1.49

$

Usually ships in 2-4 days

0

3

Echo V103002000

GASKET

$2.49

$

Usually ships in 2-4 days

0

4

Echo V805000250

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

5

Echo V541000710

SEAL
(Superseded to P200000890)

$10.99

$

Usually ships in 2-4 days

0

6

Echo P100004580

PISTON KIT

Note: Includes Items 7-11

$74.99

$

Usually ships in 2-4 days

0

7

Echo A101000710

RING, PISTON

$10.99

$

Usually ships in 2-4 days

0

8

Echo V580000010

RING, SNAP Ø10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001339730

PIN, PISTON

$8.49

$

Usually ships in 2-4 days

0

10

Echo 10001417330

WASHER, THRUST
(Superseded to V307000050)

$5.99

$

In Stock, only 3 left!

0

11

Echo V555000140

BEARING, NEEDLE
(Superseded to V555000180)

$9.99

$

In Stock, only 3 left!

0

12

Echo P100004590

CRANKSHAFT ASSY

Note: Includes Items 13-14

$157.99

$

Usually ships in 2-4 days

0

13

Echo 90081036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

14

Echo V508000110

SEAL, OIL

$6.99

$

Usually ships in 2-4 days

0
