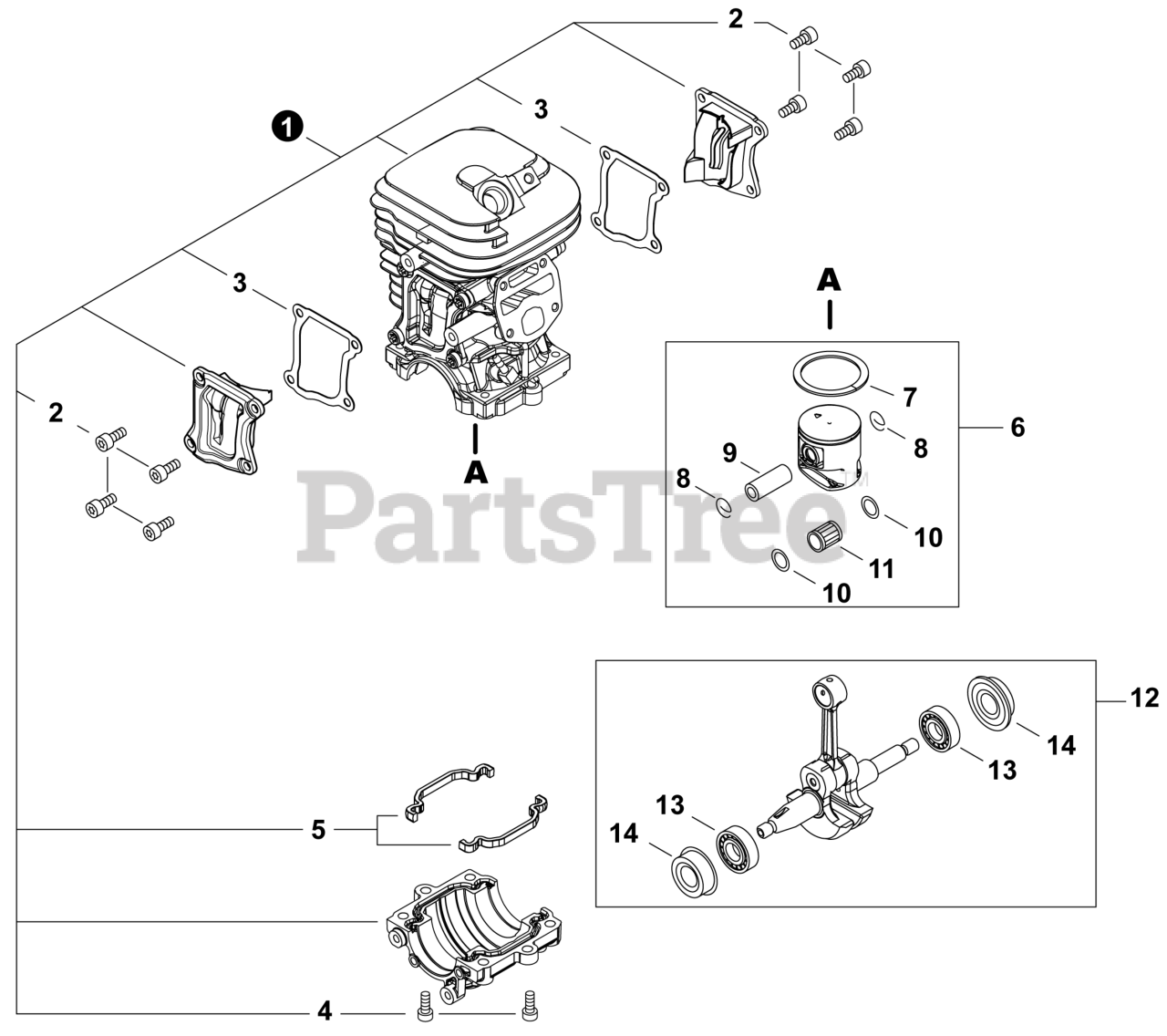

CS-4510 - Echo Chainsaw (SN: C84829001001 - C84829999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

Echo P100004570

CRANKCASE SET

Note: Includes Items 2-5

$203.99

$

Usually ships in 2-4 days

0

2

Echo V804000110

BOLT, TORX 4x10

$1.49

$

Usually ships in 2-4 days

0

3

Echo V103002000

GASKET

$2.49

$

Usually ships in 2-4 days

0

4

Echo V805000250

BOLT, TORX 5x16

$0.99

$

Usually ships in 2-4 days

0

5

Echo P200000890

SEAL KIT

$9.99

$

Usually ships in 2-4 days

0

6

Echo P100004580

PISTON KIT

Note: Includes Items 7-11

$68.99

$

Usually ships in 2-4 days

0

7

Echo A101000710

RING, PISTON

$9.99

$

Usually ships in 2-4 days

0

8

Echo V580000010

RING, SNAP 10

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10001339730

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

10

Echo V307000050

WASHER, THRUST 10

$5.99

$

In Stock, only 3 left!

0

11

Echo V555000180

BEARING, NEEDLE

$9.49

$

In Stock, only 2 left!

0

12

Echo P100004590

CRANKSHAFT ASSY

Note: Includes Items 13-14

$145.99

$

Usually ships in 2-4 days

0

13

Echo 90081036202

BEARING, BALL 6202

$10.99

$

In Stock, only 2 left!

0

14

Echo V508000110

SEAL, OIL

$6.49

$

Usually ships in 2-4 days

0
