CS-4510 - Echo Chainsaw (SN: C97413001001 - C97413999999) Chain Brake Parts Diagram

Chainsaw

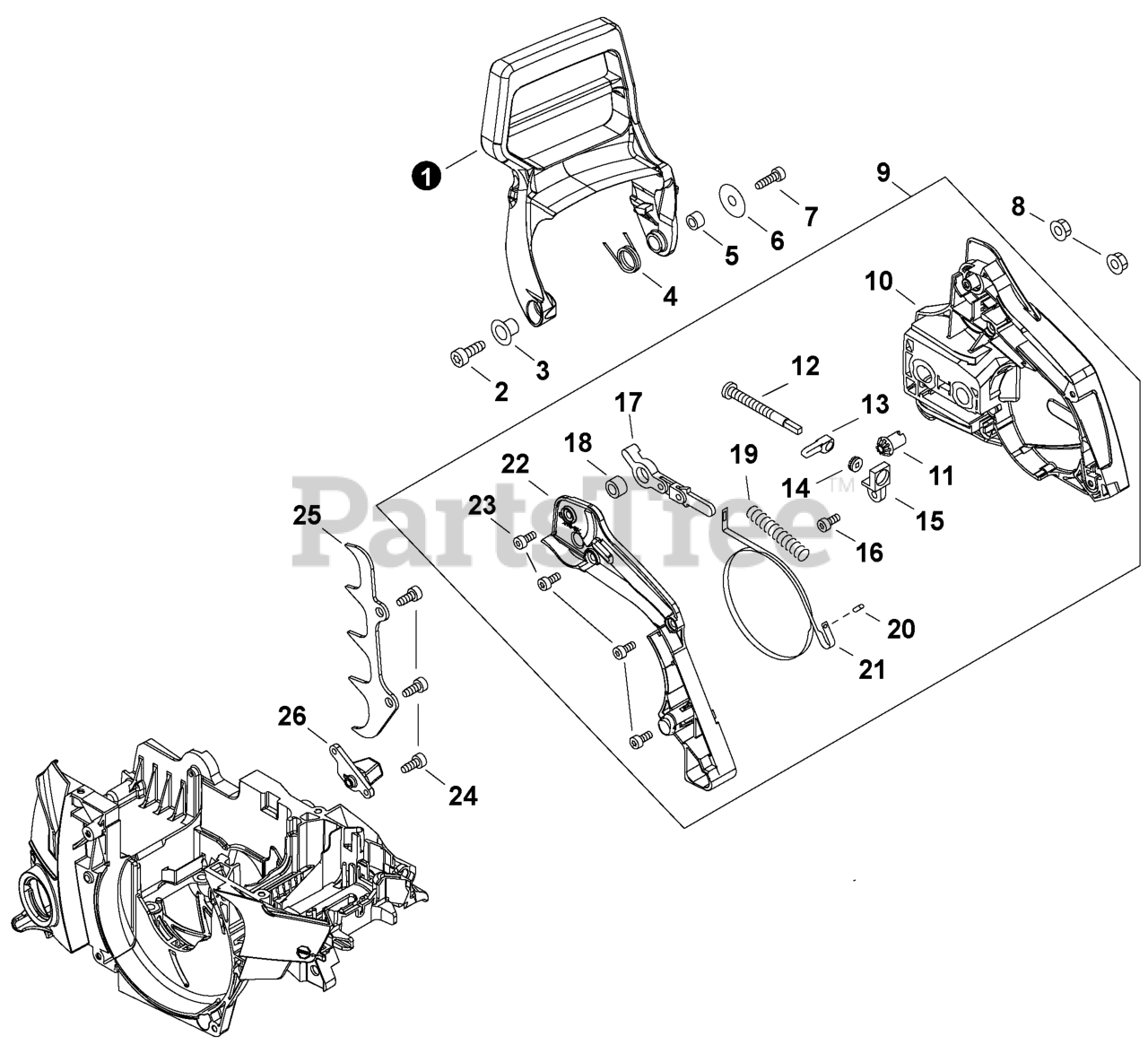

Chain Brake Parts Diagram

  • Title

1

Echo C320000531

LEVER, BRAKE

$27.99

$

Usually ships in 2-4 days

0

2

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

3

Echo V356000430

COLLAR 10

$2.99

$

In Stock, Qty 20+

0

4

Echo V452001281

SPRING, TORSION

$2.49

$

In Stock, only 2 left!

0

5

Echo 43311635430

SPACER 8x12x9

$6.49

$

In Stock, Qty 14

0

6

Echo 17721403930

WASHER 4.2x16.5x1

$0.99

$

In Stock, Qty 11

0

7

Echo V804000010

BOLT, TORX 4x16

$0.99

$

In Stock, Qty 20+

0

8

Echo V265000200

NUT, FLANGE M8x1.25

$2.49

$

In Stock, Qty 20+

0

9

Echo P100004653

BRAKE ASSY, CHAIN

Note: Includes items 10-23

$106.99

$

In Stock, only 2 left!

0

10

Echo C300001162

GUARD, SPROCKET

Note: +

$59.99

$

In Stock, only 3 left!

0

11

Echo V651001040

GEAR, BEVEL

Note: +

$18.99

$

In Stock, only 1 left!

0

12

Echo V203000110

SCREW, CHAIN TENSION

Note: +

$6.99

$

In Stock, Qty 20+

0

13

Echo C309000160

TENSIONER, CHAIN

Note: +

$6.99

$

In Stock, Qty 20+

0

14

Echo V651001050

GEAR, BEVEL

Note: +

$8.99

$

In Stock, Qty 14

0

15

Echo V355000140

COLLAR 8

Note: +

$1.49

$

In Stock, Qty 20+

0

16

Echo V804000010

BOLT, TORX 4x16

Note: +

$0.99

$

In Stock, Qty 20+

0

17

Echo C334000100

CONNECTOR, BRAKE

Note: +

$18.99

$

In Stock, Qty 8

0

18

Echo 43311635430

SPACER 8x12x9

Note: +

$6.49

$

In Stock, Qty 14

0

19

Echo V450000070

SPRING, COMPRESSION

Note: +

$2.99

$

In Stock, Qty 20+

0

20

Echo 90033030120

PIN 3x12

Note: +

$0.99

$

In Stock, only 4 left!

0

21

Echo C328000110

BAND, BRAKE

Note: +

$9.99

$

In Stock, only 2 left!

0

22

Echo C345000651

COVER, BRAKE

Note: +

$10.99

$

In Stock, only 2 left!

0

23

Echo V804000010

BOLT, TORX 4x16

Note: +

$0.99

$

In Stock, Qty 20+

0

24

Echo V805000010

BOLT, TORX 5x20

$1.49

$

In Stock, Qty 20+

0

25

Echo C304000320

SPIKE, BUMPER

$10.99

$

Usually ships in 2-4 days

0

26

Echo C310000150

CATCHER, CHAIN

$3.49

$

Usually ships in 2-4 days

0
