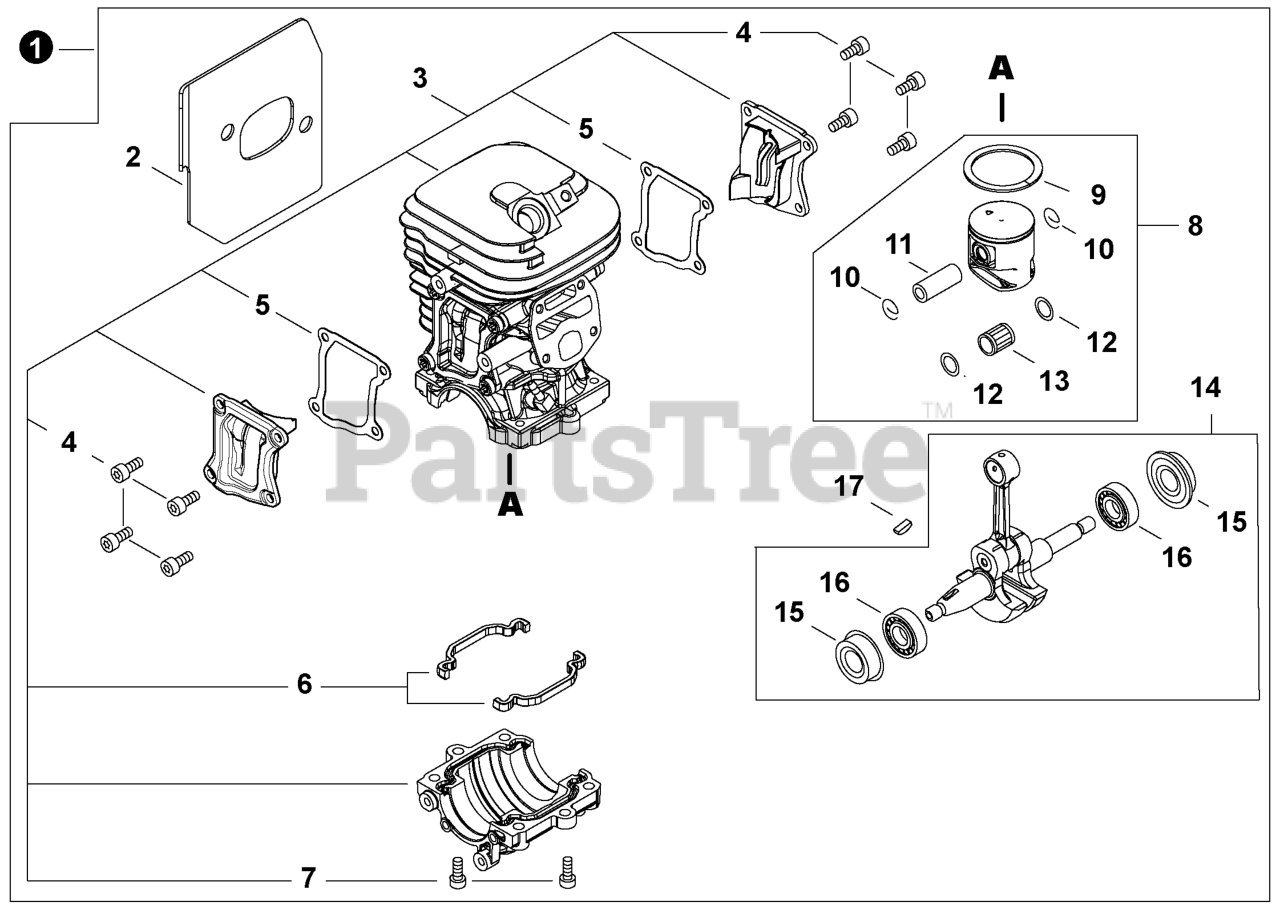

CS-4510 - Echo Chainsaw (SN: C97413001001 - C97413999999) Engine Parts Diagram

Chainsaw

Engine Parts Diagram

  • Title

1

Echo SB1122

SHORT BLOCK

Note: Includes items 2-17

$301.99

$

Usually ships in 2-4 days

0

2

Echo V104002340

GASKET, EXHAUST

Note: +

$4.49

$

Usually ships in 2-4 days

0

3

Echo P100004570

CYLINDER ASSY

Note: Includes items 4-7+

$219.99

$

Usually ships in 2-4 days

0

4

Echo V804000110

BOLT, TORX 4x10

Note: ++

$1.49

$

Usually ships in 2-4 days

0

5

Echo V103002000

GASKET

Note: ++

$2.49

$

Usually ships in 2-4 days

0

6

Echo P200000890

SEAL KIT

Note: ++

$10.99

$

Usually ships in 2-4 days

0

7

Echo V805000250

BOLT, TORX 5x16

Note: ++

$0.99

$

In Stock, Qty 20+

0

8

Echo P100004580

PISTON KIT

Note: Includes items 9-13+

$74.99

$

Usually ships in 2-4 days

0

9

Echo A101000710

RING, PISTON

Note: ++

$10.99

$

Usually ships in 2-4 days

0

10

Echo V580000010

RING, SNAP 10

Note: ++

$0.99

$

Usually ships in 2-4 days

0

11

Echo 10001339730

PIN, PISTON

Note: ++

$8.49

$

Usually ships in 2-4 days

0

12

Echo V307000050

WASHER, THRUST 10

Note: ++

$5.99

$

In Stock, only 3 left!

0

13

Echo V555000180

BEARING, NEEDLE

Note: ++

$9.99

$

In Stock, Qty 5

0

14

Echo P100004590

CRANKSHAFT ASSY

Note: Includes items 15-16+

$157.99

$

Usually ships in 2-4 days

0

15

Echo V508000110

SEAL, OIL

Note: ++

$6.99

$

Usually ships in 2-4 days

0

16

Echo 90081036202

BEARING, BALL 6202

Note: ++

$11.99

$

In Stock, Qty 12

0

17

Echo 10014212330

KEY, WOODRUFF

Note: +

$1.99

$

In Stock, Qty 20+

0
