CS-452 VL - Echo Chainsaw Air Cleaner, Ignition, Starter Parts Diagram

Chainsaw

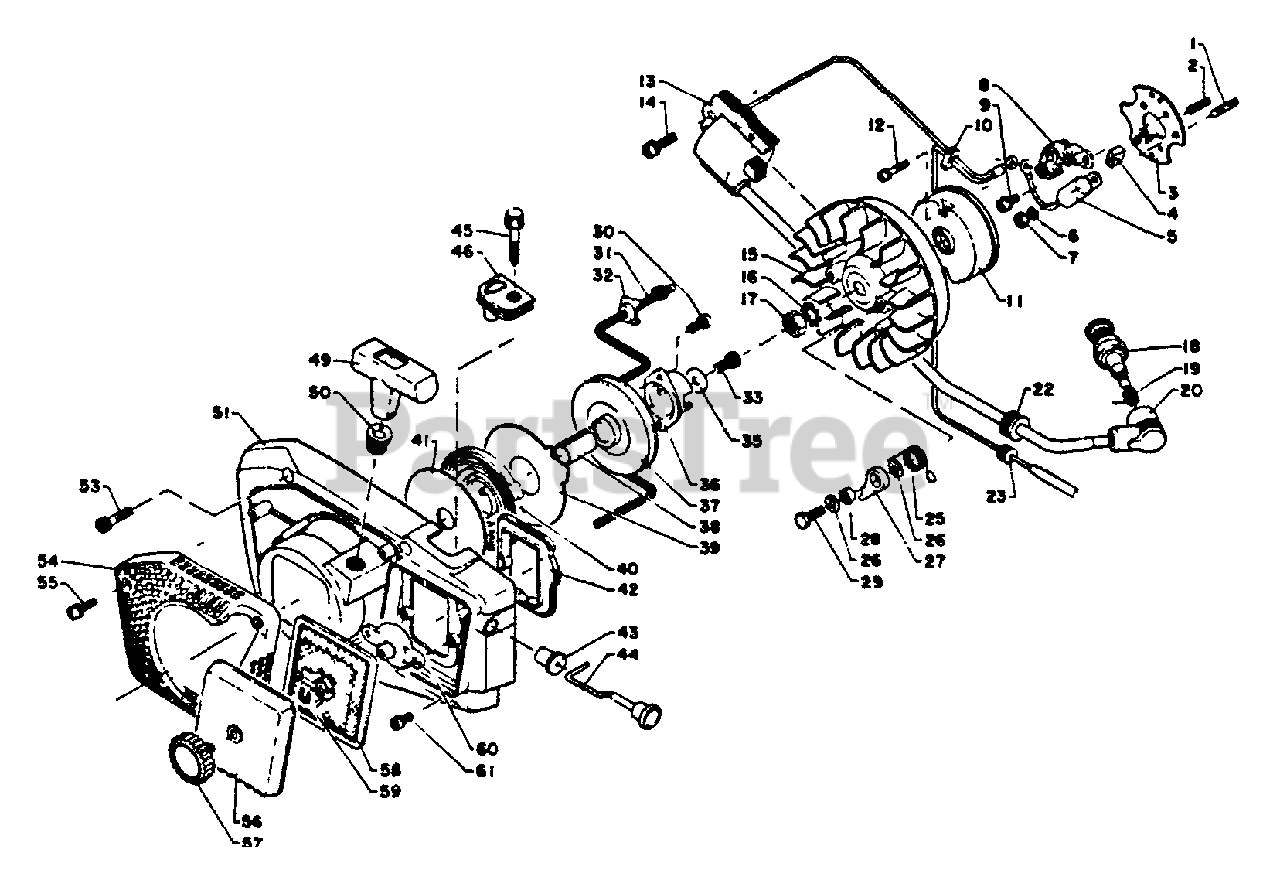

Air Cleaner, Ignition, Starter Parts Diagram

  • Title

Echo 15600010131

Magneto ass'y
(Superseded to Discontinued)

$

$

Not available

1

Echo 10026203430

STUD
(Superseded to Discontinued)

$

$

Not available

2

Echo 10025703430

STUD
(Superseded to Discontinued)

$

$

Not available

3

Echo 15613210131

PLATE, STATOR
(Superseded to Discontinued)

$

$

Not available

4

Echo 15613410130

PAD, FOAM
(Superseded to Discontinued)

$

$

Not available

5

Echo 15612710130

CONDENSER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 90050000004

NUT - 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 15610110131

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

9

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

10

Echo 15611410130

GROMMET
(Superseded to Discontinued)

$

$

Not available

11

Echo 15411203432

COVER, BREAKER

$4.99

$

In Stock, only 2 left!

0

12

Echo 90024203018

SCREW - 3X18

$0.99

$

Usually ships in 2-4 days

0

13

Echo 15612610130

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

14

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 17

0

15

Echo 15620010130

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

16

Echo 90061100008

LOCKWASHER - 8

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90050000008

NUT - 8

$0.99

$

In Stock, Qty 20+

0

18

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

19

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

20

Echo 15901203433

CAP, SPARK PLUG

$6.99

$

In Stock, Qty 20+

0

22

Echo 15411003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

23

Echo 15411103430

GROMMET
(Superseded to 15411103431)

$1.99

$

In Stock, only 1 left!

0

25

Echo 17723402831

SPRING, RETURN

$2.49

$

In Stock, only 1 left!

0

26

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 17721802830

PAWL, STARTER

$5.99

$

In Stock, only 3 left!

0

28

Echo 17721703430

SPACER

$1.99

$

Usually ships in 2-4 days

0

29

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

30

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

31

Echo 17722602830

ROPE, STARTER
(Superseded to 17722607060)

$10.99

$

In Stock, Qty 13

0

32

Echo 17724602832

RETAINER, ROPE

$0.99

$

Usually ships in 2-4 days

0

33

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

35

Echo 17721402830

WASHER - 5

$0.99

$

In Stock, Qty 10

0

36

Echo 17724302833

CATCHER, PAWL

$10.99

$

Usually ships in 2-4 days

0

37

Echo 17721502834

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

38

Echo 17721602832

BUSHING

$1.99

$

In Stock, only 3 left!

0

39

Echo 17724203430

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

40

Echo 17722002834

SPRING, REWIND

$21.99

$

In Stock, Qty 17

0

41

Echo 17722102830

PLATE, STARTER

$5.99

$

In Stock, Qty 12

0

42

Echo 13032003431

GASKET, CARBURETOR CASE
(Superseded to Discontinued)

$

$

Not available

43

Echo 17881003430

GROMMET
(Superseded to Discontinued)

$

$

Not available

44

Echo 17850103431

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

45

Echo 17800703430

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

46

Echo 17821203430

GROMMET
(Superseded to Discontinued)

$

$

Not available

49

Echo 17722812330

GRIP, STARTER

$25.99

$

In Stock, Qty 15

0

50

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

51

Echo 10150710130

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

54

Echo 10061610130

FILTER, DEBRIS
(Superseded to Discontinued)

$

$

Not available

55

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

56

Echo 13031303430

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

57

Echo 13040610230

THUMBSCREW
(Superseded to Discontinued)

$

$

Not available

58

Echo 13030503430

FILTER, AIR

$12.99

$

Usually ships in 2-4 days

0

59

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

60

Echo 13040503430

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

61

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

Echo 17720010130

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

62

Echo 17722914330

RING, RETAINING

$1.49

$

In Stock, Qty 7

0
